iqf single spiral freezing machine,China SSS price supplier

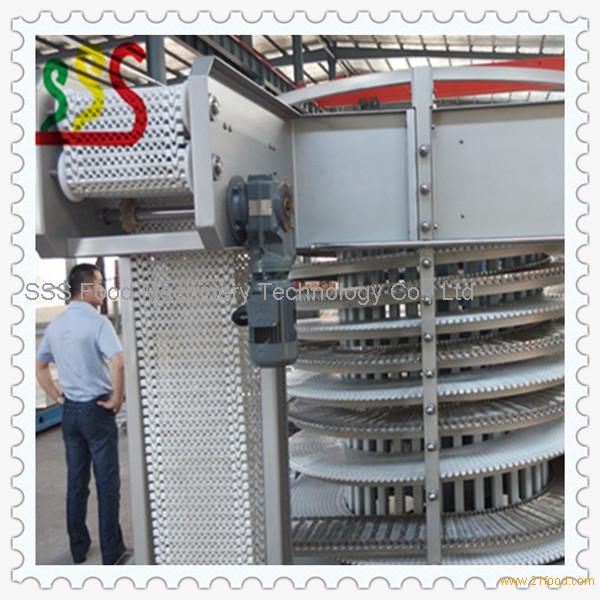

iqf single spiral freezing machine

FOB Price:Price can be negotiated

Production Capacity:50 Sets per Month

Payment Terms: US $80000 / Set,FOB SHANGHAI

Update Time:2023-09-07

Contact Supplier

Product Description

1. Freezing product and temperature
*Freezing product: Fish, meat, seafood, pastry, poultry, ice cream, etc.
*Freezing capacity: 300kg/hour
*Freezing method: IQF
*Temperature of inlet: 15° C
*Temperature of inlet: -18° C
*Temperature of evaporation: -42° C
*Temperature of inner: -35° C
*Freezing time: 15-90 min (adjusted)

2. Technical data
*Model: SSS-DL300
*diameter of tumbler: 2500mm
*net height between layers: 200mm
*belt width: 500mm
*belt length: 185m
*inlet length: 2300mm (equipped with cleaner and blower)
*outlet length: 1000mm
*freezer dimension: 7600*3700*3300mm
*power: 11kw

3. Main characteristics
*Conveyor belt is made of special high strength stainless steel 304 which can meet food grade, running smoother and lasting longer;
*All components can fully meet the hygienic requirements of HACCP;
*This equipment is in life-long design which is structured as installation not welding, it will be much easier to maintenance;
*Driving control is made of fine stainless steel;
*There is unique design of symmetrical and fluent circle wind channel, which can keep cold in inlet and outlet;
*It is equipped with evaporation in high efficiency which is 30% higher than common evaporation;
*The bottom is made of stainless steel in 3mm thick, no leak and no risk of burst;
*Main control components are from Schneider, and control box is made of stainless steel;
*Reducer is from SEW, which can ensure high efficiency and long life.

4. This Machine can be customized as per your requests.
