irregular snack packing machine,China price supplier

irregular snack packing machine

FOB Price:Price can be negotiated

Update Time:2021-06-24

Contact Supplier

Product Description

Model: XD220-D Fully automatic packaging system

Price(FOB shanghai):32,000USD

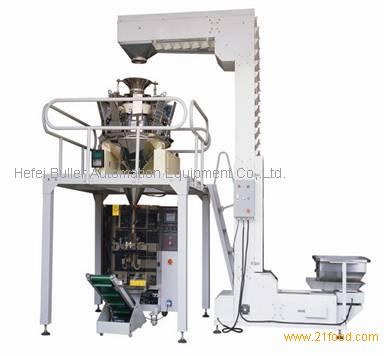

I.Picture for product

A .Range of applicatio n:

Apply for irregular, high measuring accuracy and packing fragile bulk material, such as puffed food shrimp, potato chips, banana chips, apple flakes, crispy rice, biscuit, rice, melon seeds, seeds, peanuts, sweets etc.

B . Components and Technical features:

a. component parts

1 XH - 220 host or XH - 200 hosts

2 computer controled scale

3 “Z”type material conveyor

4 vibration feeding machine

5 micro-electronic platform

6 finished-product conveying

b. structural features:

1 complete automatic feeding, metering, bag filling, date printing and product output of all production process.

2 measuring accuracy, high efficiency, no broken material.

3 low roebucks, easy operation and maintenance.

c. Medium vertical packaging machine

II. Hosit machine

Type	XH-220
Gas consumption	2.5m3 /min 6kg/cm2
Film width	Max.460mm
Bag width	80-300mm
Bag length	80-220mm
Maximum overall diameter	Max.360mm
Package speed	5-40bag/min
Film thickness	0.04-0.08mm
Power	220V,50/60Hz,2.4KAV
Weight	450kg

B.Main properties and structure characteristics

1. The machine is compact, firm, stability, simple operation, convenient maintenance.

2. The machine adopts programmable control system, big touch screen, intuitive and easy.

3. Adopt servo shipped membrane system, accurate positioning, packaging beautifully.

4. Automatic from measuring, filling, bag making, date printing to product conveying once completed.

5. According to customers have single packet and mul-bags cut function, can configure stiletto device.

III.Ten-heads electronic scales

A. Main performance and structural features:

1.the high precision of sensors, stable 10 measures, make correct measuring instantaneous.

2.adopt the servo motor, running quiet, operation stability, long service life.

3. According to the characteristics of packing materail, it could be fine adjusted in material doumen opening and closing speed, prevent broking

4. All parts made by stainless steel, cleanly and healthy.

5. Good compatibility, and other packaging equipment can

be used together easily .

B Technical features.

Name	Ten-heads electronic scale
Max measure weight	1000g
Single measure	10-1000g
Accuracy	±0.3-1.5g
Max measure volume	3000cc
Speed	60pic/min
No.of measure pre-setting	50 kinds
Controling parts	Fluorescencepipe 256 X 64

IV. “Z”type hoist


Type	“Z”type hoist
Capacity	3-6 m3/ H
Power	380V
Weight	500KG

B. Main performance and structural features:

1. The hoist and electronic scale supporting the use and control circuit with material level control, the realization of automatic material feeding and stop automation function.

2 the hoist are stainless steel and carbon steel two materials, according to customer special requirement.

V. Conveyor


Capacity	60pic/min
Power	220V
Weight	40kg
