Surri stainless steel jacketed kettle with agitator
1. Introduction of jacketed kettle with agitator
The jacketed kettle is suitable for mixing, concentrating and decocting the material in pharmaceutical, foodstuff and chemical industry etc. It is the best choose for jam making such as the matt jam and Strawberry jam making, Tomato Sauce making. and candy, medicine, dairy, alcohol, cake, beverage, sweetmeat.
Attached the below final product from the electric stainless steel electric jacketed pot
2. Structure of the jacketed kettle with agitator
We have the jacketed kettle with vertical type and tilting type. For the tilting type, the jacketed kettle is consist of pan, plank ,worm wheel and worm. The pan can turn with 180°.So it is easy for taking out the material. The jacketed kettle can configure the mixing system according to diffeent craft demand Steam heating and electric heating and gas heating are for your options.
This type is tilting type with electric motor and stirrer.
3. Features of jacketed kettle with agitator
Machine material:SS304/316L
Capacity ::Normally is 50L-600L but can be as your demand
Type: tilting or vertical
Heating model: electrical, Steam or Gas
Agitator: available
4. Characteristics of jacketed kettle with agitator
1) Full burning, smokeless,dust-free, little carbon, and no environmental pollution.
2) Flame temperature can be regulated optionally, highest temperature 300 °C or so.
3) Reasonable structure and convenient operation.
4) Energy saving, fierce fire, thermal efficiency is increased by 25% or so compared with similar products.
5) Fuel: liquefie d petroleum gas (LPG), pipe coal gas, natural gas, and oil is strictly prohibited.
6) Gas consumption: about 20% lower than the similar products
7) Uniform heating
5.Technical parameters-- jacketed kettle with agitator
| Model |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
|
| Caliber(mm) |
Φ600 |
Φ700 |
Φ800 |
Φ900 |
Φ1000 |
Φ1100 |
Φ1200 |
Φ1400 |
Φ1500 |
|
| Depth of Pot(mm) |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 |
|
| Heating area(m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 |
|
| Boiling time(min) |
5 |
8 |
11 |
14 |
18 |
22 |
25 |
34 |
40 |
|
| Interface size |
Steam pipe |
3/4” |
1” |
2” |
||||||
| Condensate pipe |
3/4” |
1” |
||||||||
| Working pressure |
≤0.09Mpa/0.25Mpa/0.5Mpa(can be adapted according to customers’ requirement) |
|||||||||
| Stirring speed |
36 r/min(can be adapted according to customers’ requirement) |
|||||||||
| Stirring power(Kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
|
| Scraping edge stirring power(Kw) |
0.75 |
0.75 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
3 |
4 |
|
6.electric jacketed kettle with agitator pictures for reference:

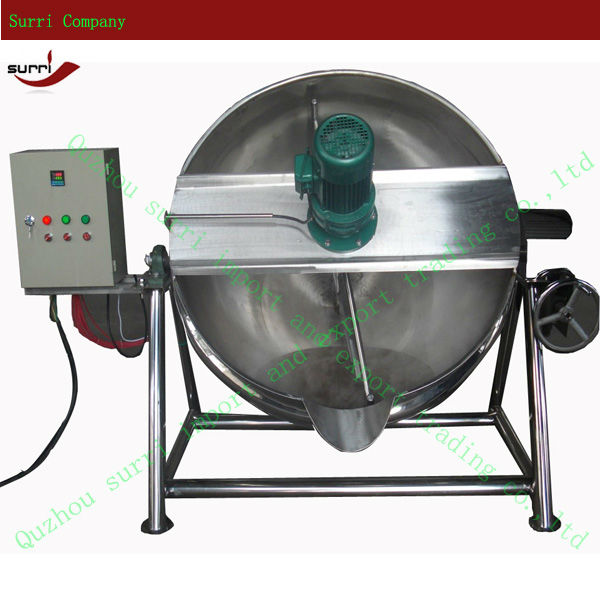

1) electric jacketed kettle with agitator

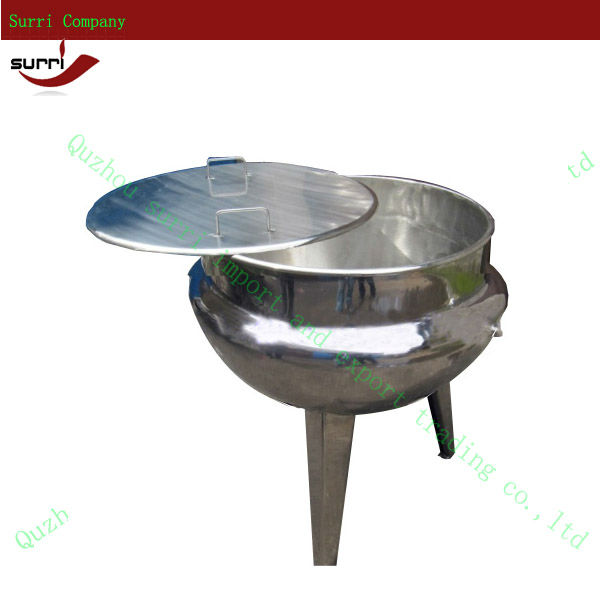

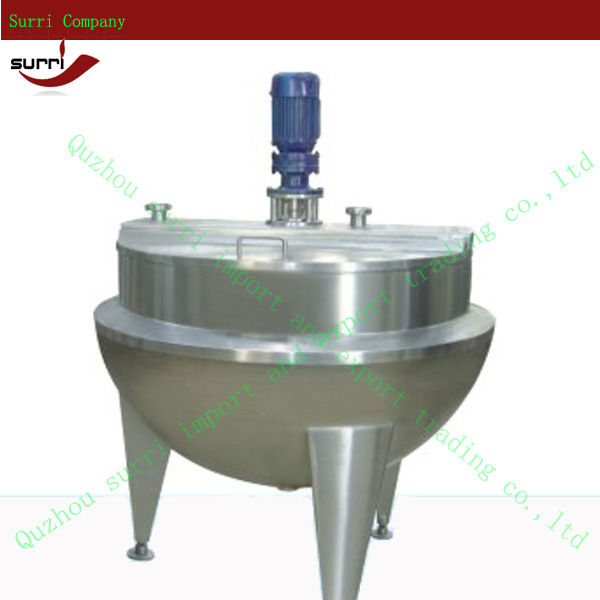

2) electric jacketed kettle with agitator --fixed type

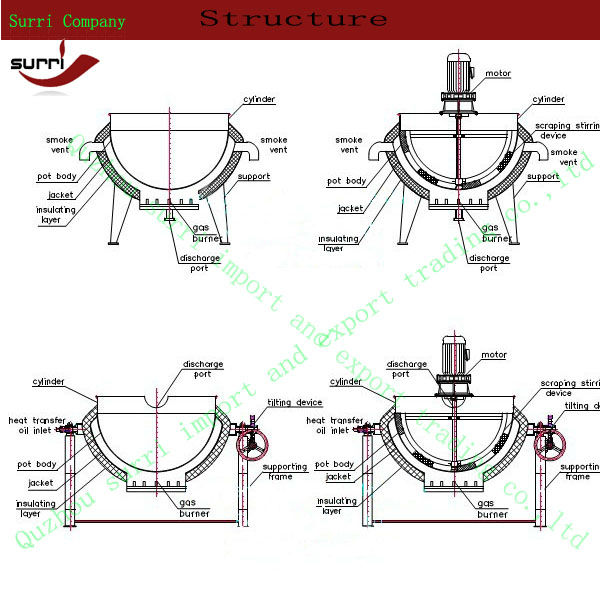

7.jacketed kettle structure

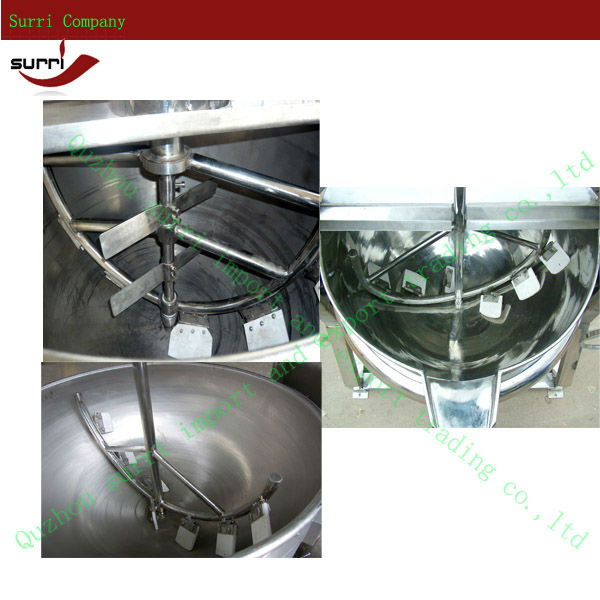

8.Electric jacketed kettle with agitator mixer(stirrer/agitation ) picture shows
9.Surri company service and contact information
| Place of Origin: |
Zhejiang China (Mainland)
|
Brand Name: |
Surri
|
Model Number: |
Sr-500
|
| Type: |
Cooking Equipment
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Item: |
jacketed kettle with agitator
|
| material: |
s304
|
mixer power: |
2.2kw
|
electric motor power: |
18kw
|
| capacity: |
500L
|
price: |
FOB Shanghai 3300usd/set
|
application: |
for jam making ,polish making ,sauce making and so on
|
| certificate: |
CE
|
boiling time: |
8mins
|
stirring speed: |
36r/min
|
|
|
|
|
|
|
|
|
|
|
