jct kneader equipment making chewing gum NHZ-200L,China JCT price supplier

jct kneader equipment making chewing gum NHZ-200L

FOB Price:Price can be negotiated

Production Capacity:20 Set/Sets per Month

Payment Terms: US $2,000 - 80,000 / Set

Update Time:2014-09-25

Contact Supplier

Product Description

1.Kneader used for chewing Gum
2.High temperature /pressure
3.Multi-funtional
4.Frequency control
5.CE,ISO14001,ISO90

JCT Kneader Equipment Used for Chewing Gum

ology

1. Company profile

Foshan Nanhai JCT machine & equipment Co., Ltd. is the leading company which speciallize in manufacturing the mixers & reactors.The company is loacted in the center of Nanhai District, Foshan city which is only 1 hour driving to the Guangzhou Baiyun airport.Founded in 2005,the company has a 4,000 sqm factory & an independent office building. Besides,the engineer devolted over 20 years designing & manufacturing the machines.

2. Introduction

Kneading machine is an ideal equipment, design for mixing, kneading, crushing, dispersing high viscosity plastic materials, and has good performance in uniform mixing, no dead ends and high efficiency kneading . It is widely used in many industries: high viscosity sealant, silicone rubber, CMC, adhesive, also used in batteries, ink, pigments, dyes, pharmaceuticals, resins, plastics, rubber, cosmetics ect.

Kneading mechanism is classified into three types: vacuum, pressure and standard atmosphere .Heating/cooling system consists of heating/cooling jacket and outer cOil, works by steam, thermal oil and hot water, water cooling, with hydraulic cylinder turn and cover. Discharging can be hydraulic cylinders dumping, discharge valve or screw extrusion. A variety of equipments can be installed on for safety, measurement, control records, etc. Mixing cylinder and the material contact parts are made of stainless steel to ensure the purity of product. Shaft seal is vacuous structure.

3.Characters:

1) Available models normal pressure, high pressure and vacuum.

2) Temperature adjustment: heated by oil, steam or electricity, cooled by water.

3) Discharge method: tilt dump, bottom dump and screw discharge.

4) The seal of shaft agitator is adopted with unique balance construction of vacuum box, Which owns patent.

5) The cover is controlled by hydraulic system.

4.Technical parameters:

Model	Chamber Volum(L)		Drive motor power (KW)	Mixing Speed (rpm)	Discharge mode			Heating
Model	Full volume	Feeding amount	Drive motor power (KW)	Paddle fast / slow paddle	Optional parameters			Optional parameters
NHZ-5	5	3	2.2-4	75/50	Manual / Hydraulic tilting			Running Hot oil	Electrical heating	Pressure Steam
NHZ-20	20	12	3-5.5	63/42
NHZ-50	50	30	4-7.5	63/42
NHZ-100	100	60	5.5-7.5	43/29
NHZ-200	200	120	7.5-15	43/29	Hydraulic tilting	The bottom pumping	Screw extruding
NHZ-300	300	180	11-18.5	43/29
NHZ-500	500	300	18.5-30	43/29
NHZ-1000	1000	600	22-55	32/22
NHZ-1500	1500	900	30-90	32/22
NHZ-2000	2000	1200	45-110	32/22
NHZ-3000	3000	1800	55-130	33/22
Remarks: 1,Temperature range: 0-300°, 2, Pressure range:-0.1-0.6MPa, 3,Frequency inverter control the main motor speed,if necessory.

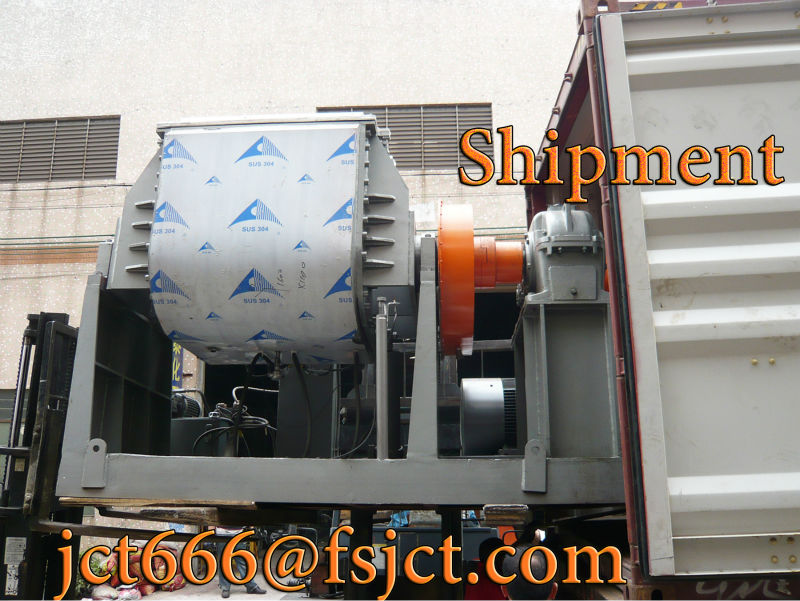

5. Products pictures

Apply to: high viscosity sealant base kneading, rubber base kneading, DOW Corning, Silicone sealant, adhesive,ink, dope, pigment, dye, carbon, CMC, cosmetic, foodstuff, battery, medicine, plastic and other viscosity fluid etc.

6.The oracle application of kneader

7. Contact information

Please be relieved to us, JCT always believes in quality!

JCT-- your trustful partner in China!

Condition:	New	Place of Origin:	Guangdong China (Mainland)	Brand Name:	JCT
Model Number:	NHZ-200L	Voltage:	380V	Power(W):	7.5KW-15KW
Weight:	5000kg	Certification:	CE,ISO14001,ISO90	Warranty:	2years
After-sales Service Provided:	Engineers available to service machinery overseas	motor:	anti-explosion	main motor:	7.5KW-15KW
vacuum degree:	-0.096MPa	color:	all kinds	discharging way:	hydraulic pumping
Product Type:	high viscosity sealant, silicone rubber,BMC, ink pigments,dyes,ect	material:	stainless steel	Additional Capabilities:	Milling
paddle type:	two sigma/ z blades	paddle speed:	42rpm

Company Profile

Name: Foshan JCT Machinery Co., Ltd.

Main Products: Rubber Machine,Painting Machine,Resin Machine,Adhesive Machine,Food Machine

Business Type: Manufacturer, Trading Company

Total Employees: 11 - 50 People

Established Year: 2006

Main Markets: Mid East, Domestic Market, Africa, South Asia, Southeast Asia

Address: Wenhaiwei Industrial Zone, Shiken Village, Nanhai

Company profile:
Foshan JCT Machinery & Equipment Co., Ltd. is a leading company which speciallizes in manufacturing the mixers, reactors, kneaders and dispersers.The company is located in the center of Nanhai, Foshan which is only 1 hour driving to the Guangzhou Baiyun airport.
JCT was founded in 2005,the company has a 4,000 sqm factory & an independent office building. JCT has a 10-person designing team and 40-person manufacturing team.
Main Products:
The main products are:Chemical Reactors, Kneader, Planetary Mixers, Dispersion Mixers, Planetary Power Mixers, Three Roller Calender Grinders, Homogenizers, Powder mixers and Dispersers etc.
Production line for:
Similiar DOW Corning Silicone sealant Production line, Similiar Wacker Silicone sealant Production line. Acrylic Acid resin production line, White Emulsion glue Production line,etc.
Apply to:
Mainly used for: Silicone Sealant, VAM Polymerization, PVA glue, Coatings, Dye, Inks, Putty,Resins, Pigments, Adhesives, Cosmetics, Pharmaceuticals, Pesticides, Detergents, Rubber additives, Bio-chemicals, Lubricants, Battery paste, Food etc.
Company Value:
The Jinchangtai believe in" The customer to be supreme, the quality first!".After several years evolution, the enterprise was transformed to a global company. There were machinery sold to Turkey, Thailand, Malaysia, Egypt, The URE, Iran, Syria, Brazil,etc. Due the high-efficient production management, excellent product quality and perfect comprehensive service, it would make Jinchangtai become an international reputable brand in all-round way. more
