JCT Reactor Machine Used for modified corn starch FYF-500L,China JCT price supplier

JCT Reactor Machine Used for modified corn starch FYF-500L

FOB Price:Price can be negotiated

Production Capacity:30 Set/Sets per Month

Payment Terms: US $2,000 - 96,000 / Set

Update Time:2022-04-24

Contact Supplier

Product Description

1.modified Corn Starch
2.Multifunctional mixing
3.Vacuum high pressure
4.Frequency control
5.ISO9001,ISO14001.CE

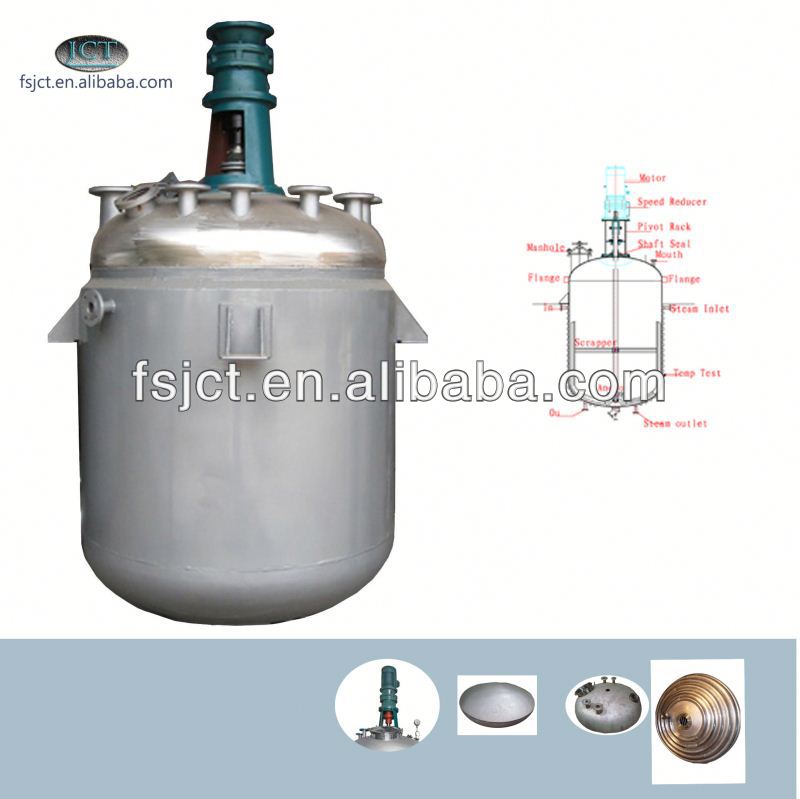

JCT modified corn starch FYF-500L

Alias :Reactor, Tank reactor,Reaction tank,Mixing tank,Stirring Tank,etc.

1. Instruction:

1.Reactor kettle is the main chemical react production equipment, which is widely used in resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production.

2.Break down or Re-combined the molecule through mixing, Heating, cooling, Vacuumize, etc. Suit for polymerization, hydrogenation, vulcanization, nitration,etc. The reactor is made up of body vessel, jacket vessel, gears, mixing devices, heating devices, cooling devices, seal composition,etc. The auxiliary equipment:Head tank, distillation column, condenser, water separator, collecting cans, dilution tank, filters ect.

2. How to Select the Appropriate Machine:

Example:The FYF-1000

FYF means the reactor kettle series(mainly for liquid, solvent making industry), 1000 means the design volume is 1000liters.The effect volume is about 80% of the tank, that means 800 liters/batch. The daily production capacity depends on the reacting time.

3. The Technical Parameters

Specifications	Effective volume (L)	Heating	Heating(colding) structure	Impeller structure	Shaft seals	Material within the cylinder	Remarks
FYF-50L	50	1.Electric heating 2.Steam 3.Hot water	1.Jacket 2.Outside the half-pipe 3.The coil	1.Oblique paddle 2.Anchor 3.Box 4.Turbo 5.Lo band 6.Impeller 7.Combined	1.Single mechanical seal 2.Double mechanical seal 3.Packing	304 321 316 Q235	1. The motor power size, stirring speed level determined according to actual requirements. 2. The thickness of the cylinder pressure to be based on response.
FYF-100L	100
FYF-200L	200
FYF-300L	300
FYF-500L	500
FYF-1000L	1000
FYF-1500L	1500
FYF-2000L	2000
FYF-2500L	2500
FYF-3000L	3000
FYF-4000L	4000
FYF-5000L	5000
FYF-6000L	6000
FYF-8000L	8000
FYF-10000L	10000
FYF-12000L	12000
FYF-16000L	16000
FYF-20000L	20000
FYF-25000L	25000
FYF-30000L	300000

4. Pictures of Products

One motor for Jacketed reactor

Jacketed reactor

Jacketed reactor for distillation & recycling

Vacuum Jacketed reactor

Vacuum reactor machine

Manhole reactor

JCT Shipment the reactors

JCT Shipment

5. Contact information

The JCT Jacketed reactor, your trustful partner in China

JCT-- your best choise!

We promise the best quality and service to you!

Choosing us is choosing you yourself!

Our credo - " QUALITY and SERVICE first, PROFIT second!"

Condition:	New	Automatic Grade:	Automatic	Type:	Tank Reactor
Place of Origin:	Guangdong China (Mainland)	Brand Name:	JCT	Model Number:	FYF-500L
Voltage:	380V	Power(W):	0.75KW-45KW	Dimension(LWH):	About 900* 850*1300
Weight:	About 100~1000KG,About 900kg	Certification:	ISO9001,ISO14001.CE	Warranty:	3 years
After-sales Service Provided:	Engineers available to service machinery overseas	motor:	anti-explosion	material:	stainless steel
vacuum degree:	-0.096MPa	The other name:	vessel, tank, kettle	color:	all kinds or customerized
products:	rubber,paint,bubble gum, pharmacy, food, battery, resin,cosmestics	paddle:	two sigma blade	paddle speed:	42rmp
discharging way:	The bottom discharge
