Jelly Bar Auto Flow Wrapping Machine,China price supplier

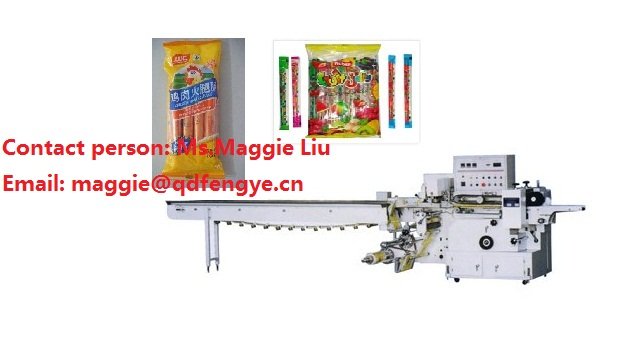

Jelly Bar Auto Flow Wrapping Machine

This is an inverted version of a horizontal wrapper with reel holders below machine body. FC works with film invert feeding.

Application:

A wide range of applications such as : multi-piece packing, i.e. sausage, instant noodle, soaps,

hardware and so on.

Features:

1. Compact design, and easy operation.

2. Automatic on-site stop.

3. Digitally indicating the size of the film, speed of wrapping, turnout and temperature.

4. English-chinese touch screen.

5. Speed control via A.C. invertors. Film control via servo motor.

6. Photoelectric cell and dual tracking without mechanical contact.

Model: FC450/120

Roll Max. Width: 450mm

Product Measurement: L: 90-400mm  W: 10-150mm   H: 15-60mm

Capacity bags/min: 50-150

Machine Dimensions: 5000*965*1750mm

Types of  Packaging Composite Film: Packaging Composite Film, PE/Paper, OPP/PE, ALU/PE and etc

Power Required: 220V/AC, 1 phase, 50 Hz  3.66 KW
