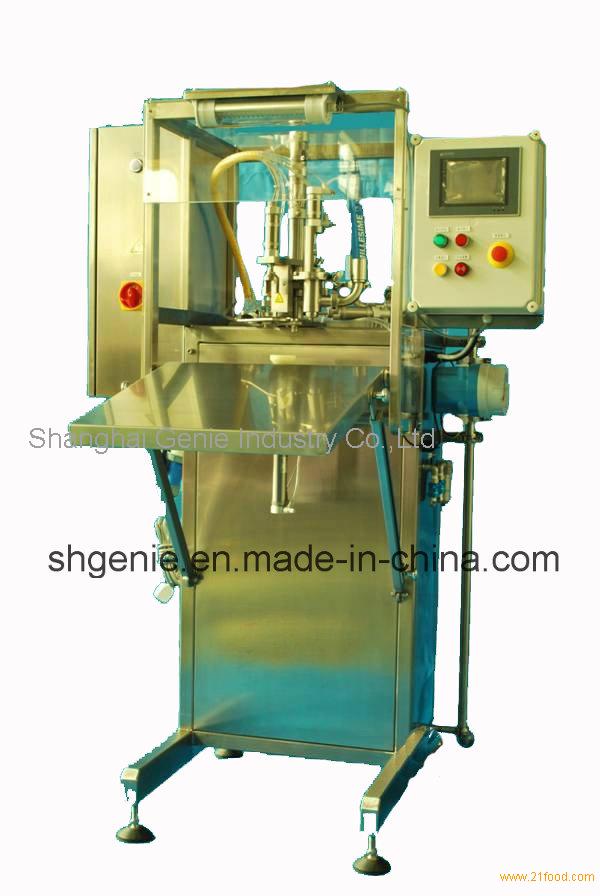

JFS red wine bag in box filling machine,China Genie price supplier

Introduction:
Bag-in-box is a kind of flexible design liquid packaging form which has economic benefit and environmental protection benefit. It has obvious competitive advantage compare with the traditional packaging form like glass bottles, PET bottles, plastic bucket. It completely replaces traditional packaging in many fields.

1. New packaging form.
2. Longer expiration date.
3. The performance of avoiding light and oxygen is better.
4. Reduce the cost of store and transportation. It can improve above 20% transport efficiency.


Apply to drinking water, juice, milk, wine, edible oil, beverage package.


Equipment Features:
1. The control system of products is composed of human-computer interface and PLC, makes the operation convenient, intuitive, with self detection and protection function; The electromagnetic flow meter measurement system improves the filling precision, truly achieve the quantitative filling,  when filling  it can choose if fill nitrogen ;
2. The whole machine adopt  stainless steel with 304,and food contact parts all use the  stainless steel with 316L.
3. The filling machine of bag in box can apply to different specifications capacity bags, make the product have more flexibility.
4. The reliable design of clip pocket mouth ensures smooth running of equipment, not to hurt the pocket mouth.

Technical Features:
1. Opening the cover of bag, filling and closing the cover auto completes according to the specific program.
2. The filling volume can be set (within 25L) to achieve variety specifications of products fill with one type machine.
3. The bag locking mouth is provided with a detection device, only when the bags lock in bag locking mouths well it can automatically fill.
4. The design of structure is compact, the components use imported brands to ensure the reliability of equipment.
5. The mode of operation PLC and touch screen control has the traits of high degree of automation and convenient operation.
6. The whole machine is made of stainless steel, the food contact pipeline adopts sanitary stainless steel, hose connection between moving parts meet food grade hose of American food FDA certification requirements to ensure food safety.
7. Have CIP cleaning function.
8. The moving parts has detection feedback information, is beneficial to the fast maintenance fault.
9. Using flow meter or weighing metering mode, apply to pack the bag in box for 1 inch bag.



Technical parameters:
Filling flow: 3.5T/H
Filling accuracy: filling volume ±1%
Bagging standard:1 inch opening asepsis bag
Filling capacity: 180 bags / hour 10 liters / bag
Compressed air: 6~8bar 10NL/min
Nitrogen supply pressure: Max2.5bar
Power: 0.5KW, 220VAC 50HZ
Weight: 300Kg

Will make sure the machine's package with stretch film wrapping first, and firmly sea worthy wooden case;

We can arrange shipping by air or by sea according to require;

We accept to ship by LCL or FCL co-loading.

Shanghai jinyi(Genie) Industries Co.,Ltd was founded in 2011, we are specially researching ,manufacturing, and supplying packaging and filling machine for daily chemical, food, beverage ,cosmetic, water and pharmacy industries.

Totally factory built area 1500sqm,through few years efforts, our products had been sold to Australia, Newzealand, Thailand, Indonesia, Bulgarian, ,Bahrain, Saudi and other totally 50 countries and areas, we are ruch experience for liquid fluid, and packaging field, fluid liquid, paste, cream ,high foaming liquid, strong corrosion and pharmacy and food ,we will provide the best solution for your esteemed plant.

Supply the following after-sale service:

• Free training your technican in our workshop;
• 1 year wear parts are provided with machine;
• Able to come on site for commissioning, visa cost, double journey airfare, food and accommodation
• local transporation on site for coming engineer will be charge by buyer;
• Salary in charge for coming engineer is USD100/day;
• Providing Guidanc via email and telephone for whole life of the machine.
