JUCE FILLING LINE,China price supplier

JUCE FILLING LINE

FOB Price:Price can be negotiated

Update Time:2012-07-05

Contact Supplier

Product Description

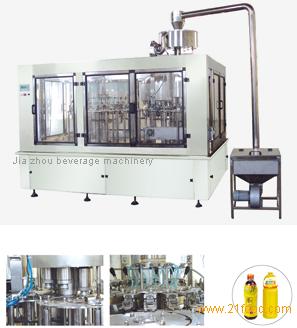

Washing Filling Capping 3 in 1 machine for juice Hot Filling

RCGF series machine is fully automatic multi-functional combined machine group integrate bottle washing filling and capping in one body of the machine. It is suitable for production of high temperature beverage filling , such as fruit juice, fruit tea. By changing some parts, It can also be used for normal temperature filling.

Product feature:

1. The main machine apply advanced man-machine interfacial control technique. The key electrical parts are of international famous brands.

2. Adopt bottle neck blocking technology, convenient to change the type of bottles.

3. Constant temperature recycling system can be fixed with automatical temperature control and automatic back-flow.

4. Spring type washing and cleaning pliers are applied, empty bottles can automatically turn 180 degree with tracks. twice washing and cleaning for iside and outside, the washing and cleaning efficiency is rather high.

5.Pressure-type filling to enssure liquid positioning and accurate volume.

6. Mannetic torque type cover turning can fasten but not damage the bottle covers.

7.Adopt poring loaded head to rise up and down, the bottles run at the same level to make sure stability of passing in and out of the bottles.

8. The machine is of low noise, which is paralled to that of same industry in the world.

Main technology parameter:

Model	RCGF16-12-6	RCGF18-18-6	RCGF24-24-8	RCGF32-32-10
Production capacity ￡¨500ml￡? ￡¨b/h￡?	3000	5000	10000	12000
Filling precison	￡?±5MM￡¨liquid level￡?
Polyester bottle standard￡¨mm￡?	Bottle diameter: φ50-φ100 Bottle height￡o150-320
Suitable cap type	Plastic screw cap
Washing bottle pressure ￡¨Mpa￡?	0.18
Washing bottle consumption￡¨Kg/h￡?	800	1600	2500	3500
Sprayiing positions	5	5	6	12
Dripping positions	3	3	3.5	7
Gas source pressure ￡¨Mpa￡?	0.4
Gas consumption ￡¨m ³ /min￡?	0.3	0.3	0.4	0.5
Total power ￡¨KW￡?	4.23	5.03	6.57	8.63
Total weight ￡¨Kg￡?	2500	3500	5500	8000
Overall dimension ￡¨mm￡?	2300×1550 ×2200	2350×1650 ×2200	3200×2100 ×2250	3500×2200 ×2250
