juice filling machine,China jiayuan price supplier

juice filling machine

FOB Price:Price can be negotiated

Production Capacity:1-100sets

Update Time:2022-09-07

Contact Supplier

Product Description

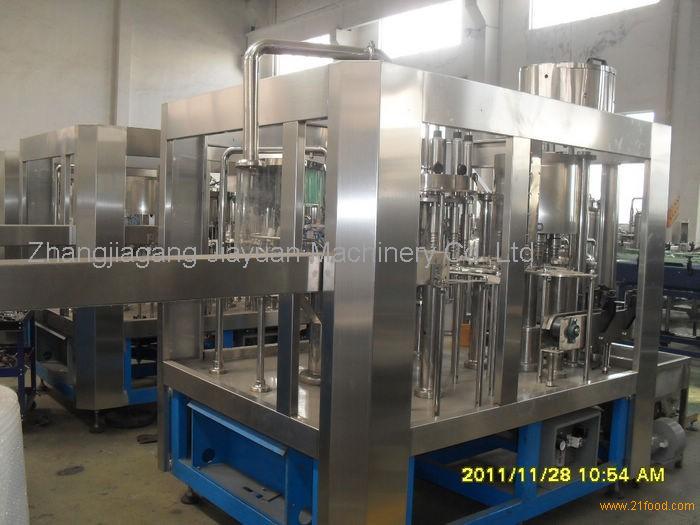

Bottle Juice Filling Machine (RCGF series)

Key word: Juice filling machine, bottle filling machine, juice making machine, juice machine, bottle juice making line, bottle juice processing line, bottle juice turn-key project

A to Z project:
Pet bottle blowing machine
Water Treatment
Juice extracting and mixing machines
Juice filling unit(washer-filler-capper)
Packing part(inject code machine, labeling machine and film packing machine)

Automatic juice filling machine

1. Juice filling machine
2. Filling Capacity: 1000-18000b/h
3. Bottle size: 250ml-2L
4. Component contact with liquid adopt 304ss

This hot filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling, and capping, It is equipped with perfect temperature control system, reverse-flow system, automatic cleaning system and control program. Each machine element that contacts with the liquid is made of high quality stainless steel and food-grade rubber.

Usage: Washing, filling and capping 3 in 1 monoblock is used for filling juice into PET bottle. Full automatically; It can finish washing (bottle), filling and capping three jobs in the one machine.

Primary features:
1) Compact conformation, good shape, cozy operation, excellent automaticity and poor labor intensity.
2) Only exchanging "star wheel", "feeding screw" and "arc guide plate" while exchanging model of bottle to be need.
3) The all parts directly contacted with media are all adopted with food stage stainless steel without dead angle, so they can be cleaned easily.
4) Adopting advanced valve to control the inlet flow rate of liquids. It can keep the slight turbulence of liquids level in the solution barrel and ensure the accuracy in filling.

5) Closing feeding valve automatically while no bottle on machine avoiding the loss of aqueous feet. Filling automatically with a high speed and the control of liquids level is accurate.
6) High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.
7) The "capping head" is adopted magnetic-constant-torque device to ensure the high capping quality and without damages.
8) Adopting efficient cap settling system which carried perfect cap feeding and protection device.

9) It is adopted spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel. And to adjust the input height is not necessary for exchanging model of bottle.
10) carried the perfect protection system to overload; It can be used to protect facilities and operators efficiently.
11) Because of applying touch screen for operation, it is possible to realize man-machine conversation whereas the status of device running is clear at a glance.
12) The primary electric components such as touch screen\PLC\transducer etc. Are all adopted with world famous products.

model	RCGF16-12-6	RCGF18-18-6	RCGF24-24-8	RCGF32-32-10
production capacity(500ml)(b/h)	3000	6000	10000	14000
filling precision	≤±5MM(Liquid Level)	≤±5MM(Liquid Level)	≤±5MM(Liquid Level)	≤±5MM(Liquid Level)
feedback consumption	≤10%	≤10%	≤10%	≤10%
polyester bottle standard(mm)	(BottleDiameter)50-92;(Height):150-310	(BottleDiameter)50-92;(Height):150-310	(BottleDiameter)50-92;(Height):150-310	BottleDiameter)50-92;(Height):150-310
suitable cap shape	(Plastic Screw Cap)	(Plastic Screw Cap)	(Plastic Screw Cap)	(Plastic Screw Cap)
water pressure of washing bottle(Mpa)	0.18	0.18	0.18	0.18
wash pressure of washing bottle(kg/h)	800	1600	2500	3500
gas sourse pressure(Mpa)	0.6	0.6	0.6	0.6
gas consumption(m3/min	/	0.3	0.4	0.5
total power	5.88	6.68	7.68	9.18
total weight	2500	3000	4000	5000
dimensions(LWH)(mm)	2100×1500×2200	2450×1800×2200	2750×2180×2200	3600×2800×3150
