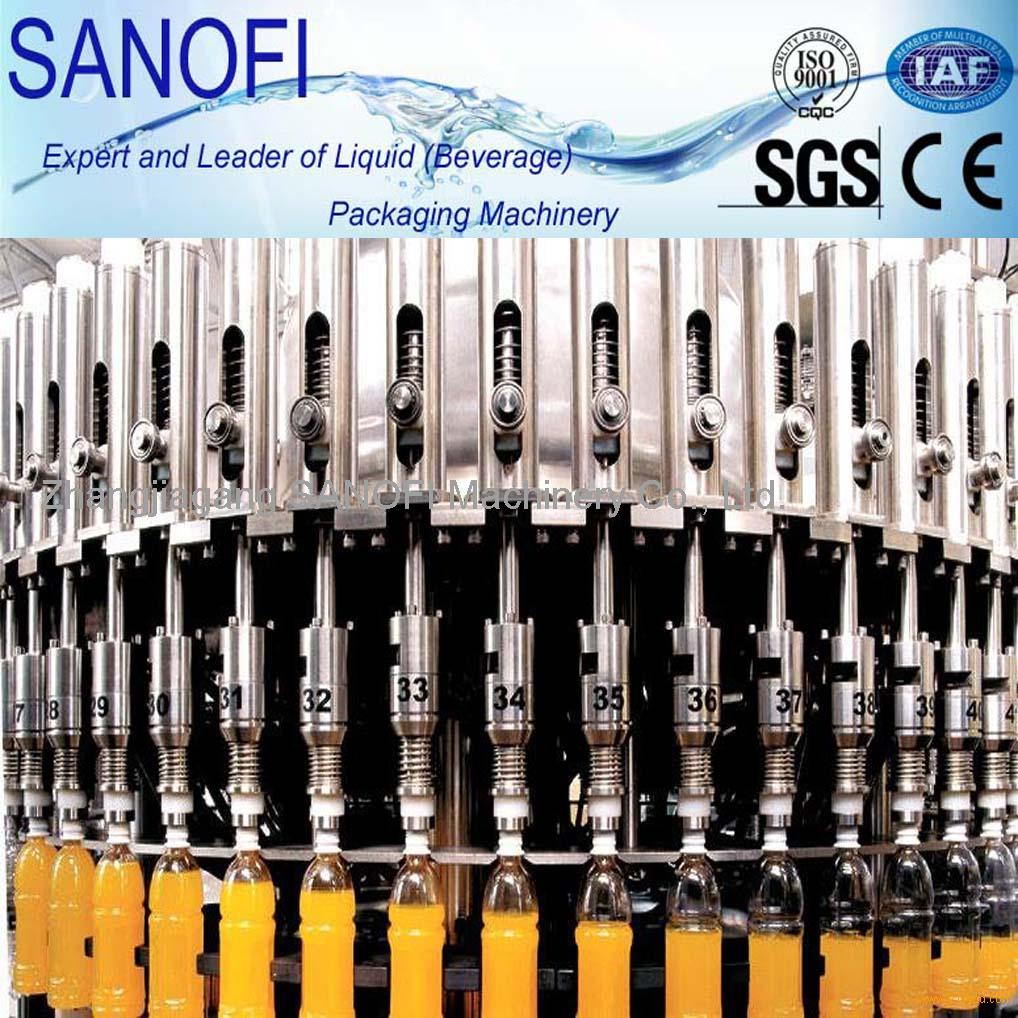

  Juice Hot Bottling / Filling Plant / machine

1. Capacity: 2000-15000bph
2. Volume: 200-1500ml
3. PET bottle,Glass Bottle
4. Full automatic

Machine Description

This machine is mainly applied for filling drinks. It combines rinsing bottle, filling and capping into one machine. The full procedure is automatics. It is suitable for PET bottle and plastic bottle to fill juice, mineral water, pure water, if add temperature control device, even for hot filling. The adjustment for bottle type of each unit is fulfilled by turning handle; it is simple, easy and quick. The filling method applies new micro pressure filling so that the filling speed becomes more quick and stable. Compared with similar machines, it has higher yield, more benefit. The machine applies advance OMRON programmable controller (PLC) to control machine’s auto-running, the input bottle chain way changes its speed by frequency converter. Cooperate more stable and reliable. As each unit’s running is detected by photoelectric elements. So it has high automation and simple operation. On this basis, changing filling unit can change to low vacuum filling method and isotonic filling method. Low vacuum filling method (Z type machine) is applied for glass bottle to fill alcoholic liquor; soy etc. and the capping method can be aluminum anti-theft cap and plastic cap. The isotonic filling method (D type machine) is applied for PET bottle; plastic bottle to fill CO2 contained drinks. It is the ideal top choice equipment of drinks enterprise.

Composition of the Machine

The machine includes several sections listed bellows:

(1). Drive unit

(2). Locating bottle device

(3). Input bottle device

(4). Rinsing bottle device

(5). Rinsing-filling transferring bottle device
(6). Filling device

(7). Filling-capping transferring bottle device

(8). Capping device

(9). Unscrambling device

(10). Output bottle device

(11). Frame

(12). Electric control system
