Juice Making Machine (RFC-H),China Blissum price supplier

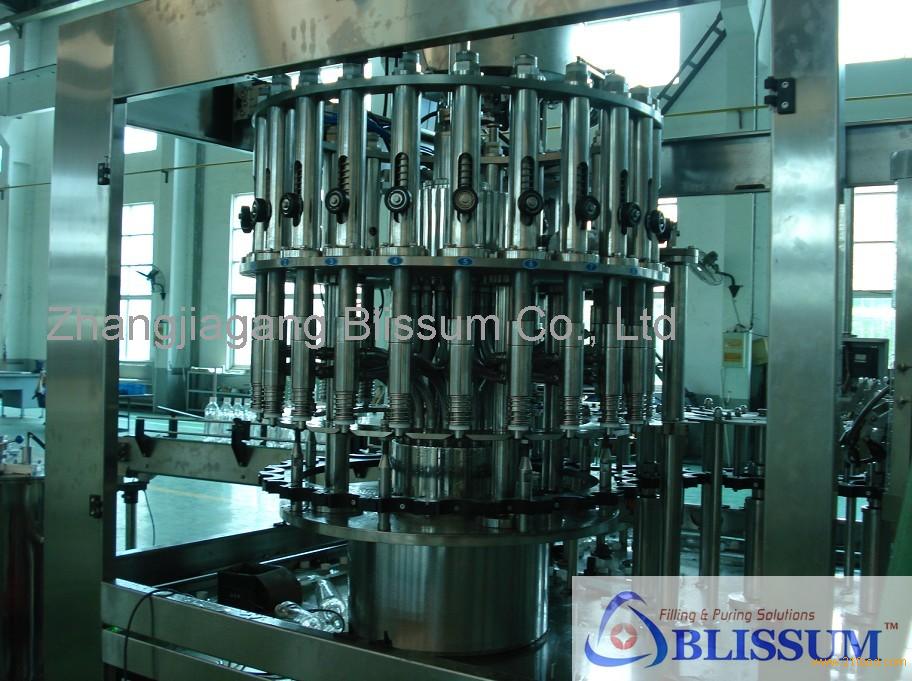

Blissun's RFC-H series Filling Machines are designed especially for bottling synthetic Juices (RTS) or HOT filled juices, tea (filled at up to 98 centigrade degrees), with optional capacity ranging from 1000BPH to 32000BPH, it adopts the pressure & rotative filling style.

The rinsing system, capping system rotor assemblies are identical to the non-carbonated beverage filling machine (RFC Series), however there are some additional smart features provided along with specially designed valves, designed specifically for the purpose.

Additional features present are as under:
1. Centre filling valves used which are designed for maximum flow rate and minimum bottle distortion during HOT filling.
2. Inbuilt CIP arrangement provided on the machine for fill tank and fill valve sanitation.
3. Dummy caps provided fitting on all filling valves during CIP.

4. Automatic PLC controlled valve washing cycle before commencement of every production cycle for overall hygiene.
5. Unique filling cam designs which prevents filling up to the bottle collar without spillage.
6. Bypass line provided for flushing the product fill tank after completion of CIP
7. Supper heavy stainless steel juice tank build in

In case of bottling HOT filled juices in PET bottles the perform weight and the bottle design are of critical importance. Using a heavier perform retards bottle distortion and greater wall thickness. Vertical ribs placed longitudinally across the bottle impart rigidity to the bottle which is a prerequisite when the juice is HOT filled.

Available Models of these series filling machine: (based on 500ml PET bottle)
RFG-H-H 8-8-3 Capacity: 1500~2000BPH
RFG-H 16-12-6 Capacity: 2000~4000BPH
RFG-H16-16-6 Capacity: 4000~5000BPH
RFG-H18-18-6 Capacity: 4000~6000BPH
RFG-H24-24-8 Capacity: 6000~8000BPH
RFG-H-32-32-8 Capacity: 10000-12500BPH
RFG-H40-40-10 Capacity: 16000-20000BPH
RFG-H50-50-12 Capacity: 20000-24000BPH
RFG-H60-60-15 Capacity: 25000-30000BPH
