KF automaic egg roll machine/wafer stick line

FOB Price:Price can be negotiated

Production Capacity:1 Set/Sets per Month

Payment Terms: US $7,000 - 10,000 / Set

Update Time:2025-02-18

Contact Supplier

Product Description

KF Egg roll machine/wafer stick line
double head filled egg roll machine
hollow egg roll
filled egg roll

KF automaic egg roll machine/wafer stick line

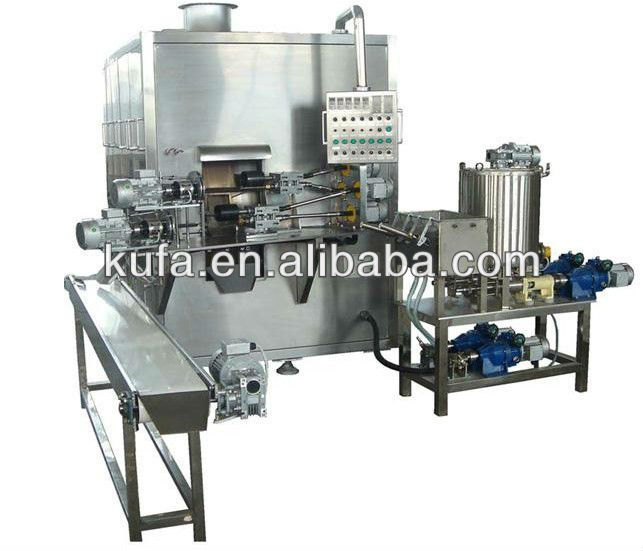

Machine Introduction:

This machine is cooperated with one slurry mixer, one baking mainframe, two feeders, two fillers and one cooling conveyor. firstly mixing material evenly, then translating to the baking mainframe ,after baking, using a spatula wiping additional softer material away, making them circled on the surface of rollers (here are double-stage core rollers for you), then cutting the material in a target length, translating to the cooling conveyor and collecting them by a notch . The baking mainframe that using gas heating is full-automatically integrated with the auto- ignition, auto-alarm then auto-(power cut off), auto-controlment of temper,all these make the best effective use of power and energy. This whole egg roll production line is managed by PLC Programming system, for the baking mainframe, it is controlled by frequency converter, suitable adjustment of flour material’s thickness is available . users can change the egg roll’s diameter by change the core rollers, also can change the core rollers’ speed by frequency converter, for the egg roll’ length , it is cut by Optical Sensor system. This egg roll can center-fill whole cream or other core material, also can just center-fill only a part of core material. in the good faith, Free recipe is available.

Egg Roll Production Line:

Dough Mixer--Material Feeder

----Baking Mainframe--Coloring--Roller Cutting--Colling--Packing--Conveyor

Ball Miller--Center-Filler

Technical Parameters:

Type	KFER Gas Heating	KFER Electric Heating
Power	8kw	35kw
Dimension	340017002250mm	340017002250mm
Gas Consumption	Liquefied Petroleum Gas 4.5kg/h
Capacity	No Center-Filling 30kg/h, Center-Filling 60kg/h	No Center-Filling 30kg/h, Center-Filling 60kg/h
Diameter	Φ1800mm	Φ1800mm
Weight	4T	4T

Available Advice:

1.Users can choose the baking mainframe(gas/electric heating) based on the local energy situation.

2. This equipment set should be combined with the whole automatic egg roll production line.

Contact us and get more information !

Condition:	New	Place of Origin:	Shanghai China (Mainland)	Brand Name:	KUFA
Model Number:	KFY025	Application:	Egg rolls	Power(W):	8000/35000
Weight:	4T	Dimension(LWH):	340017002250mm	Certification:	BV
Warranty:	1year	After-sales Service Provided:	Engineers available to service machinery overseas	Material:	Stainless steel
