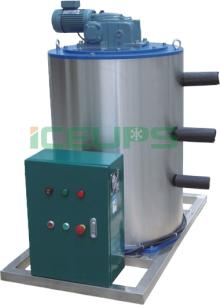

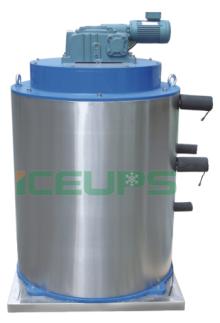

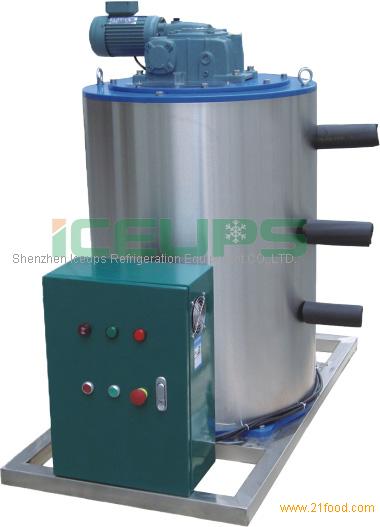

Small evaporator systems of ICEUPS are designed as a firm, immobile and vertical unity , and the mode of ice making is scraping internally. In this way, screw ice blades scrape ice in the inner wall of the evaporator and turn round anticlockwise, so as to reduce the friction between ice blades and the evaporator.
Applicability of Products
The series of products are applicable for freshwater and seawater .
The products are applicable for fluorine system and ammonia system .
Thickness of flake ice: 1.5
～
2.2mm
Applicable working condition: ambient temperature: 0
～
55
℃
, water temperature: -2
～
45
℃
Standard working conditions: ambient temperature: 25 ℃ , water temperature: 18 ℃ , evaporating temperature:?-20 ℃
Technique Parameters
Daily capacity
（
kg/24h
）：
1000
Cooling capacity
（
kcal/h
）：
4700
Refrigerant
：
R404A / R22
Power supply: Standard power supply is 380V-3P-50HZ, but we can offer machines with non-default voltage of 60HZ,200/220V
、
400V
、
440V.
Cooling type: air coling/ water cooling
Diameter of Ice outlet:
Φ
490
Dimension of evaporator:
840x710x860mm
Our machine has high quality and competitive price.Also,we hava good after-service.If you have problem of our machine.We will give you the detail explain.
THE PARAMETER ABOVE COULD BE CHANGED BECAUSE OF TECHNOLOGY INNOVATION.
