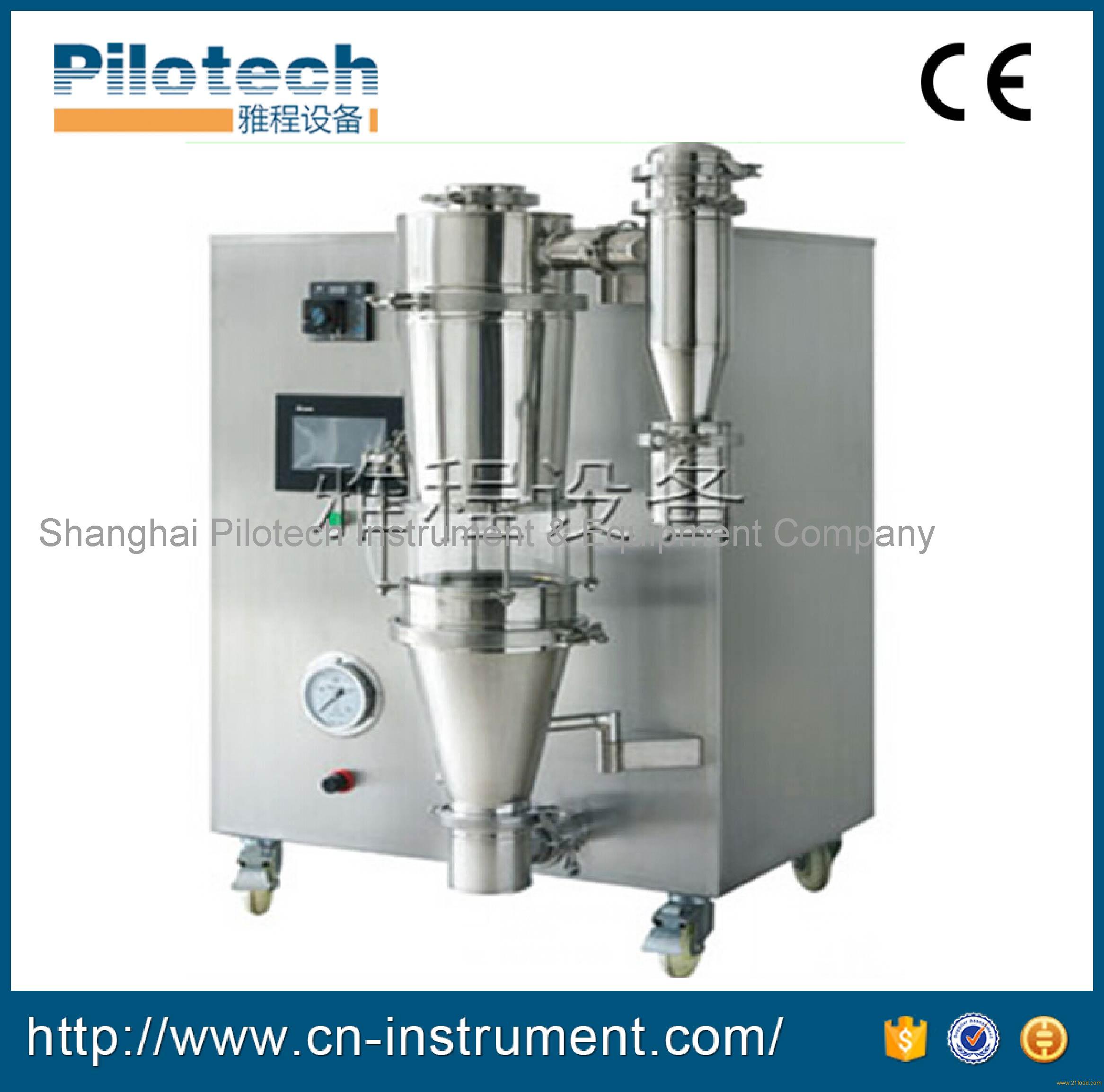

Lab low temperature spray dryer,China Yacheng price supplier

YC-1800 lab low-temperature spray dryer is a breakthrough made by Shanghai Pilotech Instrument & Equipment Co., Ltd with efforts in spray drying technology. YC-1800 spray dryer can deal with extracting natural product and juice from traditional Chinese medicine (Chinese herbal medicine) in laboratory and get powder particles of excellent liquidity at a low temperature of 105°C with a high yield. In particular, it achieves rapid material drying at low temperature and provides very convenient and safe drying method for thermo-sensitive materials, such as biological product, high carbohydrate traditional Chinese medicine natural product extract, thermolabile polymer material, heat gasification material and so on.(For a long time people found that it have been a difficult problem for laboratory traditional Chinese medicine (herbal) natural product extraction and juice spray drying . Upon laboratory traditional Chinese medicine (herbal) natural product extraction and juice spray drying, materials immediately melt when spray dried as they have a lot of carbohydrate compositions which are easy to melt at high temperature and they form sticky candy like substances on drying chamber wall of traditional spray dryer. As a result, scientific research personnel can not get powder they wanted. Sometimes a lot of auxiliary materials are added in order to get the powder, such as starch or cyclodextrine, but no satisfactory effect has been achieved.)

Parameters

1、Nozzle with two fluid atomizing structure, made of SUS 316 stainless steel.

2、Evaporation rate of water at inlet temperature of 105ºC using Standard:Approximately 1000 ml～1500ml/hour,can be used for thermo-sensitive material

3、Min sample:30～50ml

4、YC-1800 lab spray dryer applies PID 100 to assure accurate temperature control and easy parameter adjusting,

5、standard with 0.7 mm jet and other sizes are available as accessories（1mm 2mm 1.5mm 0.5mm)

6、Power: 5.5KW/220V

7、Spray dry at low temperature (105℃) using for thermosensitive material.

8、7" high-resolution LCD touch screen, human-oriented interface with English , Optimize operation procedure.

9、Patrticle size:1-28um,normal distribution

10、The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid secondary pollution.
