Main technical parameters:
Model No.
|

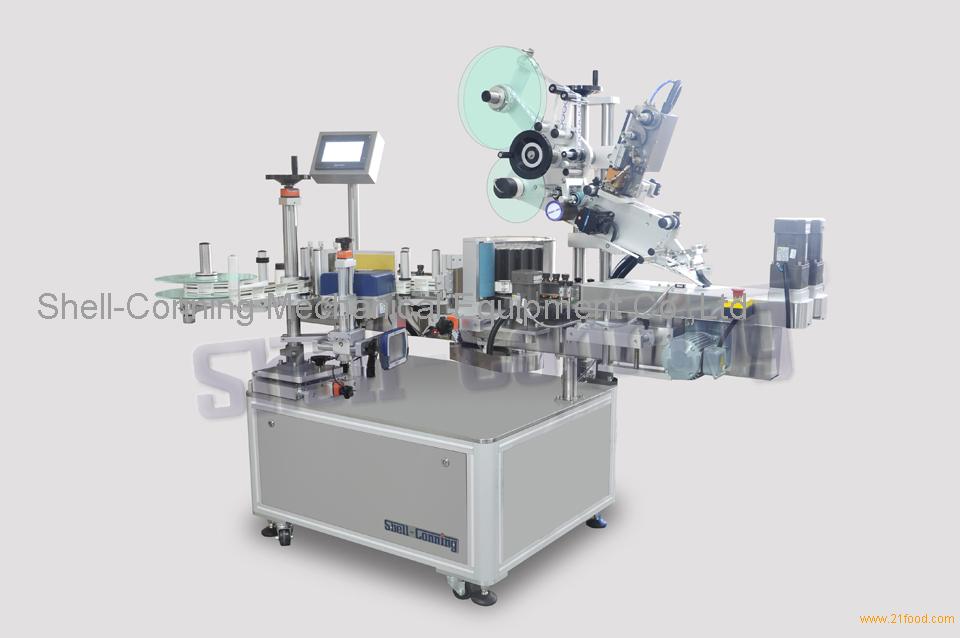

SLA-321-D Labeling Machine
|
Bottle Type & Size
|
Φ28-φ100mm(options cylinder three points positioning)
|
Labeling Speed
|
40pcs/min. ( Related to the Bottle Type/ Label Size)
|
Stop Labeling Precision
|
±0.5 mm
|
Labeling Precision
|
±1.5 mm
|
Use environment Temperature
|
5-45℃
|
Use environment humidity
|
15-90% (non-condensing )
|
Width of Conveyer belt
|
91mm (Can according to customer requirement make the Width and Length of the Conveyer Belt )
|
Machine Outer Size (mm)
|
L:2400mm*W1450mm*H1300mm
|
Main Application :
The machine is widely application for the medical & pharmaceutical ,foods and beverage ,and daily chemicals and other light industries for automatic labeling on wrap-around containers that can stand upright stably .
Product Details:
Synchronization operation function:
a : Cylinder three points positioning mechanism suitable for various round containers
b: Provides a wide range of detection function, prevent leakage, wrong paste, repeat label, crooked label and code is unclear on the print etc..
The main performances and features:
a: Big torque servo motor control star wheel feeding mechanism, ensure the circumferential positioning labeling accuracy.
b: Can be used as a stand-alone labeling, also can connect with other packaging production line.
c: With Intelligent adjustment function, make the labeling operation more simple.
d : Optional distribution tray function, achieve automatic continuous feeding, improve production efficiency.
e : Optional hot-iron stamping coder ,
thermal transfer printer or printer, complete synchronization printing and labeling. Running status of equipment and alarm information can also be reflected in the system.
f : Interactive (The man-machine dialogue) touch screen: operation is convenient, intuitive, has rich function and fault display function.
g : The device adopts imported high torque, small inertia servo motor drive, the Swiss diamond sand roller technology, never deformation, friction is excellent, large angle of the nonskid ensures high precision operation send label function.
Guangzhou Shell-Conning Mechanical Equipment Co.,Ltd.which is located in the Guangzhou Economic and Technological Development Zone, for the production of high-end automatic labeling machines and on the downstream supporting professional equipment manufacturers, production, research and development, sales and service in one, for medicine, food, cosmetic, chemical, electronics, information and tobacco industries to provide a full range of automatic labeling solutions and customized services
