Lass="description"> Plastic laser cutting tools
1 high speed ,high precision
2 good quality ,low price
3 1300*2600
4CE

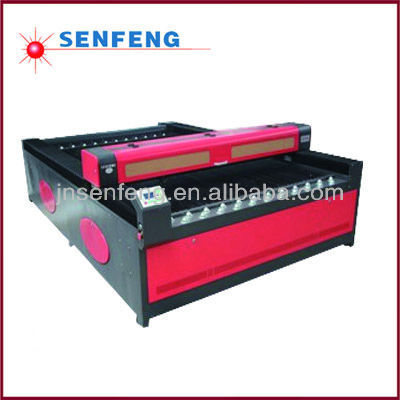

Plastic laser cutting tools Sf1326 .laser Cutting Machine
for nonmetal materials
Guarantee and after-sale service
1. 12 months for machine,long life span of laser tube:1500-3000 hours.
2. 24 hours technical support by e-mail, calling or door-to-door service
3 .English software, user manual and detailed Videos CD
4.International quality certificate:CE,FDA,SGS,ISO9001:2008
5. professional laser machine supplier with 8 years experiences in China
Brief introduction:
SF 1326 laser cutting machine is used specially for the nonmetal art crafts, gifts and the engraving of bamboo
products. The mechanical structure is strong and stable, making the machine to run at high precision.
The electrical ability is stable, the engraving speed is high, and the precision is high.
The machine can engrave beautiful pictures, peoples’ photos on the surface of many materials of different size
of materials (marble, black or colored acrylic etc) . It can also engrave many signs, marks.
It is a machine with high cost performance.
dust cover
Specifications:
Name: |
SF1326 |
Processing area |
1300mm*2600mm (4.3feet*8.7feet) |
Laser power |
60W,80W,100W,130W,150W |
L aser type: |
Co2 glass laser tube |
Software: |
L aser cut 5.3 |
Dimension: |
3.2m*2m*1.3m |
Engraving speed |
1 -6000 mm/min |
Cutting speed |
1-1000mm/min |
Cutting thickness |
0-2 5mm acrylic (others determined by materials) |
Resolution ratio |
≤ 0.0125mm |
Position system: |
Red dot |
Interface: |
USB |
Minimum shaping character |
letter 0. 5 mm, Chinese 0.5 mm |
Support graphic format |
DST, PLT, BMP, DXF |
Gross power |
1000W |
Driving mode: |
DC0.8A 24V stepper motor |
Cooling mode: |
Circulation water cooling |
Working voltage: |
AC220V/50HZ or 110V/60HZ or depend on customer |
Operating temperature |
0-45C |
Operating humidity: |
5-95% |
Packing: |
wooden box |
Guarantee time: |
1 year, laser tube 8 months |
Option: |
R otary attachment for column materials |
Operation: |
Video to tell customer how to operate the machine |
Applicable materials:
Non-metal materials such as acrylic, double color board, Plexiglas,
C ommon glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industr ies :
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo
and wooden product, garment and leather, embroidery, decoration and upholster industry .
Characteristic s :
l Japanese technical engine running, making sure the products to run at high aped and high precision.
l The original binding beeline lead rail, the mechanic is running well and stable.
l Channel feeding, the feeding can be unlimited.
l The body of the machine adopts high quality aluminum, professional model and has the specification of
strong and not easy for distortion.
l The main parts of the electrical line adopts the imported materials, the mainly controlled CMOS
chip adopts double face CPU.
Looking for agets all over the world
Application: |
Laser Cutting
|
Condition: |
New
|
Laser Type: |
CO2
|
Applicable Material: |
Acrylic,Crytal,Glass,Leather,Plexiglax,Plywood,Rubber,Stone
|
Cutting Thickness: |
20mm acrylic
|
Cutting Area: |
1300*2600
|
CNC or Not: |
No
|
Cooling Mode: |
Water Cooling
|
Control Software: |
ruida
|
Graphic Format Supported: |
PLT,DXF,BMP,DST,DXP
|
Place of Origin: |
Shandong China (Mainland)
|
Brand Name: |
SENFENG
|
Model Number: |
SF1326
|
Certification: |
CE,ISO
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
optional: |
stepper or servo
|
color: |
red and black
|
laser power: |
100W,130W
|
warranty: |
1 year
|
