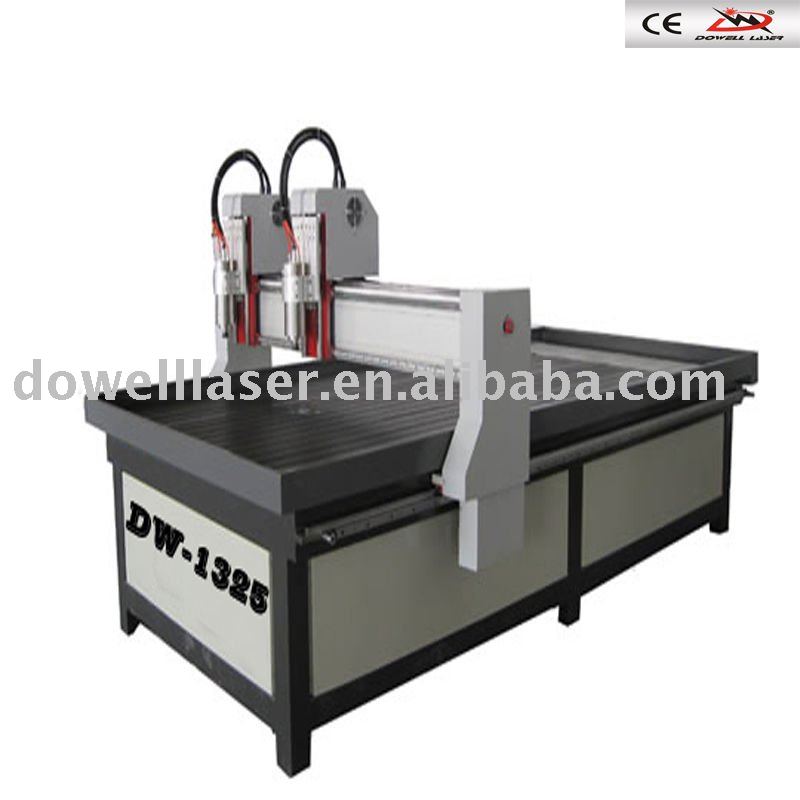

laser machine,China DW price supplier

Laser-type                       Hermetic and detached CO2 laser tube

Laser-power                     80W  (  60W    100W    150W   for option  )

Cooling Mode                           Circulating-water-cooling

Power Adjustment                       0-100% controlling, no segment and adjusting by software

Machine Control and Drive              Speedy DSP controlling, stepper motor

Max Engraving Speed                    1200mm/s

Max Cutting Speed                             500mm/s

Repeating Location                               ±0.01mm

Minimum Character                         Chinese character 1.5mm, crisscross-row 1mm

Max Power                                1500W

Adjustable Up-down Distance of Laser Head              30mm

Working Travel Area               1400*100mm, 1400mm width with infinity material-feeding

Table Area                     1450*150mm

Working Voltage                        AC220V 50Hz

Working Environment                     Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed

Controlling Software Language         English, Simplified Chinese, Traditional Chinese and procuring of multi-languages

Dictate Format        *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting

Packaging                Wooden box

Machine Color                  Red/grey    grey/white  blue/ white

Delivery Time                        12 days

Payment                   T/T

Optional Equipment
