Product information

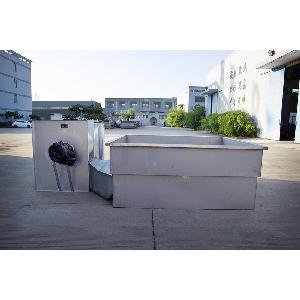

The box dryer is made of 304 stainless steel or carbon steel stainless steel. Its material is safe and reliable. Its performance is super strong, saving manpower and high efficiency. Its effect is much better than that of similar products. It not only has obvious drying effect, but also has fast heat dissipation. It is suitable for all kinds of drying work, such as vegetables, fruits, seafood, drugs and industrial raw materials. It is one of the best drying work in factories choose

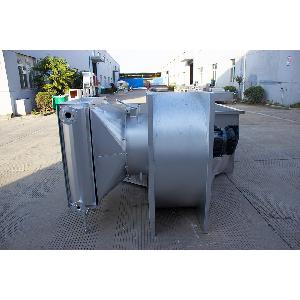

Fan |
(1) Select 4-72 6A-4KW-4. Slightly improved on the original basis.Flow6677-13353m3 / h full pressure 724Pa(2) Select 11-62 type A low-noise more-airfoil centrifugal fan 11-62-5A-5.5KW-6Flow 9800-19300m3 / h full pressure |
Owen |

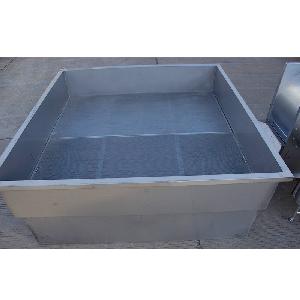

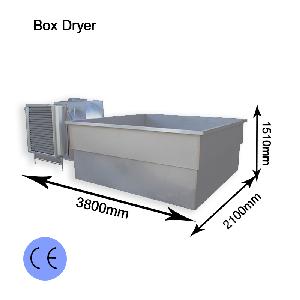

The box body is welded with all stainless steel plates. The box body and sieve are 1.5mm thick. The frame is welded with stainless steel profiles to form a square frame. It has high strength, no deformation, no air leakage, and no water leakage. It is easy to clean and solves the accumulation of materials. The formation of charcoal and drying dead corner improves the sanitary conditions and guarantees the quality of drying. Effective size of the oven: (1) 2*2 meters = 4m2; (2) 3*1.5 meters = 4.5m2 |
Heat Sink |
(1) 4 rows of 76 Φ16 *1 purple steel pipes and copper strips; (2) It consists of 5-6 rows of Φ18*2 seamless steel tube aluminum ties, and the installation size is 880*880mm. |
This machine is suitable for the continuous drying of fruits and vegetables after processing, and generally adopts the combination of single-layer section and multi-layer section Design and customization according to customer requirements
![]() |
![]() |
![]() |
![]() |
Jiangsu Ligong Fruit and Vegetable Machinery Ltd is a provincial technology-oriented privately-runenterprise, which focuses on the research, development and manufacturing of fruit and vegetable intensiveprocessing machinery. It is specialized in manufacturing the devices and production lines of the cutting, cleaning,baking, choosing fruits and vegetables. The company has been growing through three stages since established in 1997:Xinghua VegetableDehydrating Machinery Factory, Xinghua Ligong Vegetable Machinery Ltd. and Jiangsu Ligong Fruit andVegetable Machinery Ltd. The registered capital is now 7.5million RMB, the fixed assets is 50 million RMB.The factory now occupies a boundary of 20000m2Japan.Our has independent export right The sales of products are spread all over china, expanding to Southeast Asia, Europe and America. "Ligong"and the graph trademark was authorized by the National Industrial and Commercial Brand Bureau.It was also honored with "Famous Trademark of Taizhou"\" famous trademark in jiangus" and" Famous Brand Product of Jiangsu Province",the high-tech enterprises in jiangsu continuous access to Credit Units and the Contract and keeping promises Enterprises such as the honorary . Technological innovation is the original motivation to the improvement of the enterprise. It focuses on thecommercialization of the research achievements, and the research and development of new technology and new products. It has established long-term cooperation with academic institutions like Jiangsu University, Jiangnan University, Nanjing Institute of Global Exploitation of Wildness Plants, Xinjiang Agricultural research Institute,and some international enterprises from Italy and New Zealand. Technical researches via the cooperation help gathering abundant in formation and technical stretch for the company's sustainable development. In collaboration with Jiangsu University, the company undertook a Jiangsu Science and Technology Supporting Plan "Key Technology and Product Development of 3-dimentional Fruit and Vegetable Cutting Machine".A new fruit and vegetable cutting machine typed 6XQ3-400 was developed as a successful achievement of the project. It won the three prize of provincial science and technology achievement It was checked and accepted by Jiangsu Science and Technology Bureau, and was appraised by the China Machinery Industry Federation."FoodMachinery Institute of Jiangnan University and Xinghua Ligong" was established under the cooperation with Jiangnan University the formation of jiangsu university business graduate workstation Aiming at the international leading level of agricultural products processing machinery. devotes itself to establishing a R&D center of Fruit and vegetable processing machinery of domestic advanced level, constructing an independent technological innovative entity with multi-functions of product approval, standard making andtalent cultivation.
