Product information

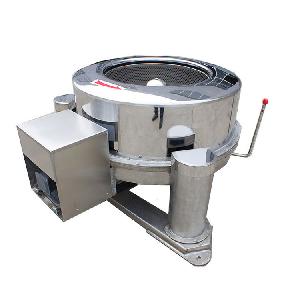

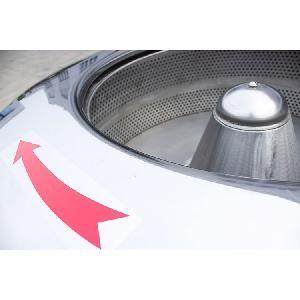

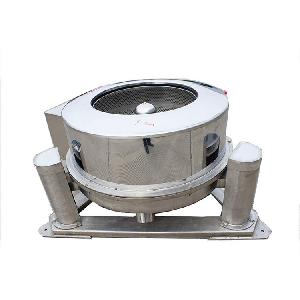

Lg-1200 centrifugal water thrower is a kind of general mechanical equipment with clearance operation, which is composed of shell, drum, chassis, suspender, damping spring, mixing box transmission parts, clutch and braking device parts. When the machine runs normally, the material is evenly distributed on the inner wall of the drum under the action of centrifugal force. The liquid attached to the material is thrown to the inner wall of the shell through the hole on the wall of the drum, and discharged from the outlet after collection, while the solid material is left in the drum to complete the separation process of centrifugal filtration. Take out the material from the brake drum and shut it down manually.
It is suitable for dehydration in the process of vegetable processing, and can effectively remove the surface moisture in the process of vegetable processing. The drum and shell of this product are made of stainless steel, meeting the requirements of food hygiene.
Technical parameters
| Model stainless steel |
Power(kw) |
Drum diameter(mm) |
Load capacity (kg) |
Drum speed (r/min) |
Dimension (mm) |
Weight |
| LG-φ800 |
4 |
φ800 |
80 |
910 |
φ1400×820 |
500 |

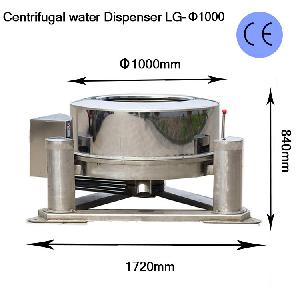

| LG-φ1000 |
5.5 |
φ1000 |
110 |
900 |
φ1720×840 |
1400 |
| LG-φ1200 |
7.5 |
φ1200 |
150 |
740 |
φ1920×935 |
1600 |
Maintenance and maintenance
1. The centrifuge must be operated by a specially assigned person. It is not allowed to increase the loading limit at will. Pay attention to check whether the rotation direction is in line with the requirements during operation;
2. It is not allowed to increase the speed of the centrifuge at will. After 6 months of use, it is necessary to conduct a comprehensive inspection, clean the drum parts and bearings, and add lubricating oil;
3. Regularly check whether the fasteners of each part of the centrifuge are loose;
4. Within 6 months (from the date of purchase), the product quality shall be guaranteed by three guarantees, and the user shall be responsible for any damage caused by improper operation.
|
|
|
|
Jiangsu Ligong Fruit and Vegetable Machinery Ltd is a provincial technology-oriented privately-runenterprise, which focuses on the research, development and manufacturing of fruit and vegetable intensiveprocessing machinery. It is specialized in manufacturing the devices and production lines of the cutting, cleaning,baking, choosing fruits and vegetables. The company has been growing through three stages since established in 1997:Xinghua VegetableDehydrating Machinery Factory, Xinghua Ligong Vegetable Machinery Ltd. and Jiangsu Ligong Fruit andVegetable Machinery Ltd. The registered capital is now 7.5million RMB, the fixed assets is 50 million RMB.The factory now occupies a boundary of 20000m2Japan.Our has independent export right The sales of products are spread all over china, expanding to Southeast Asia, Europe and America. "Ligong"and the graph trademark was authorized by the National Industrial and Commercial Brand Bureau.It was also honored with "Famous Trademark of Taizhou"\" famous trademark in jiangus" and" Famous Brand Product of Jiangsu Province",the high-tech enterprises in jiangsu continuous access to Credit Units and the Contract and keeping promises Enterprises such as the honorary . Technological innovation is the original motivation to the improvement of the enterprise. It focuses on thecommercialization of the research achievements, and the research and development of new technology and new products. It has established long-term cooperation with academic institutions like Jiangsu University, Jiangnan University, Nanjing Institute of Global Exploitation of Wildness Plants, Xinjiang Agricultural research Institute,and some international enterprises from Italy and New Zealand. Technical researches via the cooperation help gathering abundant in formation and technical stretch for the company's sustainable development. In collaboration with Jiangsu University, the company undertook a Jiangsu Science and Technology Supporting Plan "Key Technology and Product Development of 3-dimentional Fruit and Vegetable Cutting Machine".A new fruit and vegetable cutting machine typed 6XQ3-400 was developed as a successful achievement of the project. It won the three prize of provincial science and technology achievement It was checked and accepted by Jiangsu Science and Technology Bureau, and was appraised by the China Machinery Industry Federation."FoodMachinery Institute of Jiangnan University and Xinghua Ligong" was established under the cooperation with Jiangnan University the formation of jiangsu university business graduate workstation Aiming at the international leading level of agricultural products processing machinery. devotes itself to establishing a R&D center of Fruit and vegetable processing machinery of domestic advanced level, constructing an independent technological innovative entity with multi-functions of product approval, standard making andtalent cultivation.
