lollipop forming Line/Continuous lollipop making machine,China YOKE price supplier

NO

Name

Main parameter


1

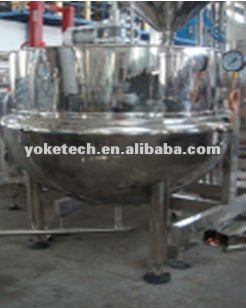

Dissolving tank

1 set

Including:

1. Jacketed tank 1 set 300L
2. top diameter : 900mm , height:950mm
3. made of SUS304
4. with stirrer, reducer and motor
5. with temp. meter and pressure meter

2. Technic data:

A. max steam pressure:0.6Mpa

2

Pump

1 set

1. Including:

A. pump and motor(1.5kw) 1 set each

2. Technic data:

A. diameter: 1 inch

B. pump head material use SUS304

3

Holding tank

300L

1set

1. Including:

A .Tank 1pc , material SUS304

B. With Motor (0.75kw ) and reducer

C. with SUS304 Stirrer

2. Technic data:

A. capacity:200L

4.

AZ400

AZ400

Vacuum

Cooker

1 set

1. Including:

A.Piston-type dosing pump 0.75kw

B. with pre-heater

C. Vacuum Pump 5.5kw

D. Micro-film generator, Inner tank:H62

E. Electrical parts control box

2. Technic data:

A. capacity:400KG/H

B. Frequency inventer

C. Made of stainless steel 304

D. Steam pressure: 0.6Mpa

5.

Cooling table

2 set

1. Technic data:

A.size: 2000*1000*800MM

B.made of SUS304

C.Use water for cooling

6.

Batch roller

1 set

1. Including:

A. including 4 rollers

B. including heating parts

C. including electrical control box

2.Technic data:

A. made of SUS304

B. Frequency inventer

C. Output capacity300-400kg/h

D. size: 2250X800X1700mm

7

Jam pump

1 set

1. Technic data:

A. Pump Power:0.37kw, heating power:3kw

B. Pump flow rate:100kg/h(max)

C. Size: 500*500*1100 mm

D. Weight:70KG

E . Volume:150L

8

Rope sizer

1 set

1. Technic data:

A. Power:1.5kw

B.size: 1300x600x1400mm

C. weight: 300kg

D. made of SUS304

9

Auto-die forming machine

1 set

1. Including:

A. heating rollers

B. electrical parts control box

C. mould 1 set. 45Cr steel material

2.Technic data:

A. machine outside and roller made of SUS304

B. frequency inventer

C. Motor power: 3kw

D. capacity:260kg/h(10000pcs/min)

E. Lollipop diameter: 20-25mm

F. Stick specification:dia 3.2-4mm,

Length:80mm

G.size : 1400X1400X1200 mm

H. Weight:1250kg

10

5 layers

Cooling tunnel

1 set

1. Technic data:

A . main power : 1.5kw

B . tunnel layer : 5

C . air Conditioner power: 7.5KW

D . Tunnel length: 5m

D . weight: 1000 KG

E . size:5000X1200X1800mm

11

Lollypop Packing machine

1 set

1. Format: Bunch Wrapping
2. Optimum Speed: Around 120 Pcs per Min.
3. Wrapper Feeder: By Servo Motor
4. No Product, No Wrapper System
5. Computer controlled and photoelectric sensor tracking
6. Electrical Parts: Siemens
7. Nett Weight: 750kg
8. Dimensions: 2500X920X1520mm
