Lollipop Stick Extruder Machine, Hot Sale!!!,China JOUYU price supplier

Lollipop Stick Extruder Machine, Hot Sale!!!

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month

Update Time:2021-05-20

Contact Supplier

Product Description

1). Good quality and easy to operate;
2). Mutiple use;
3). 100% automtic.

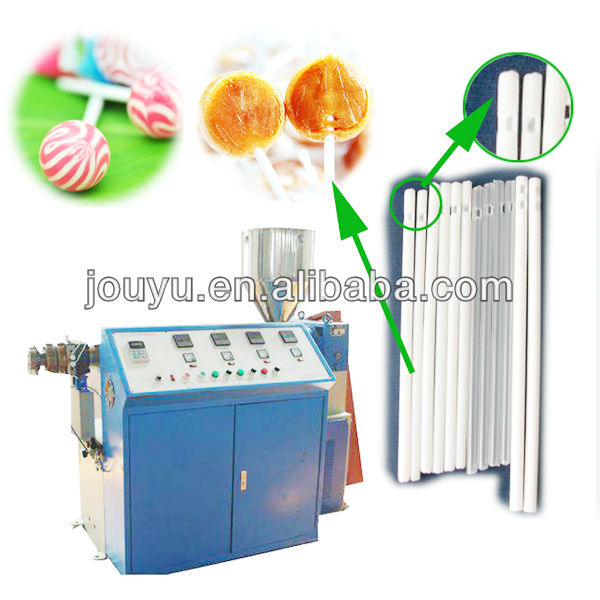

Mutiple Use Lollipop Stick Making Machine

Lollipop stake making machine used to produce PP,PE plastic stake,with longer using life, high precision and stable

performance.

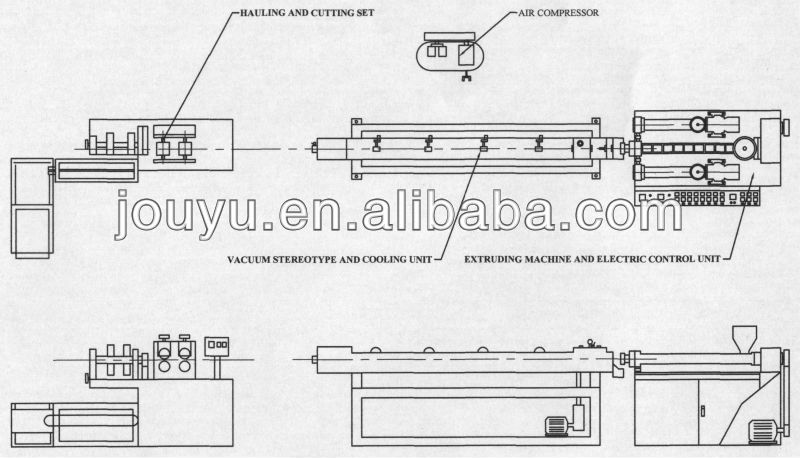

This production line is composed of extruder, die, cooling device, traction and cutting device, electric control part.

1. Features:

1). Easy Operation. 2 worker is enough for the whole production line, and we provide detailed operation manual;

2). High Productivity. Machine can produce the lollipop stakes 45,000 piece/hour.

3). Energy Saving. Frequency inverter been equipped to control its operation speed and save energy

4). Enough free spare parts delivered with machine, in case problem happen in the future.

2. Technical Parameter

Over All	Item	Remark
	Machine Productivity	35 kg/H, equals 45,000 piece lollipop stakes
	Stake Material	PP, PE
	Stake Diameter	1-14 mm
	Stake Length	3-1,000 mm
	Machine Power	15 kw
	Machine Dimension	Length 10 m* Width 2 m
	Machine Weight	1.2 Tons
	Machine Voltage	3 Phase, 380 V, 50Hz

System	Item	No.	Remark
Extruding	Hopper	1 set	Cr18Ni9Ti stainless steel
	Screw	1 set	Nitrided 38CrMoAlA
	Screw	1 set	Φ50mm*1; L/D=28/1
	Heater	4 piece	3.5kw*4=14kw
	Motor	1 set	7.5kw, inverter control
	Inverter	1 set	Delta,change extruding speed
	Die	1 set	Tube shape

Cooling	Water Sink	1 set	Length 3.5* Width 0.7 m
Cooling	Water Sink	1 set	Cr18Ni9Ti stainless steel

Traction & Cutting	Motor	2 set	2*0.75kw=1.5 kw, inverter control.
	Pulling device	1 set
	Blow dry device	1 set	Dry the tube after cooling and before cutting, need customer prepare the air source, with power 0.3 kw
	Cutting device	1 set	Two end cut together, with slot cutting blade

Electric	Therme Controller	1 set	Delixi, control the temperature automatically
Electric	Inverter	1 set	Delta,change the extruding speed

3. End Products

4. H.S. Code

84772090

5.Welcome To Visit Us!

Messeage To You

Place of Origin:	Shanghai China (Mainland)	Brand Name:	JOUYU	Model Number:	JY-PP
Type:	stick making machine	After-sales Service Provided:	Engineers available to service machinery overseas
