LPG High-Speed Centrifugal Spray Dryer (atomizer),China Mingxing price supplier

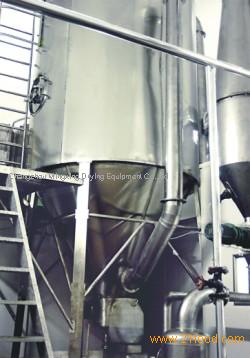

LPG High-Speed Centrifugal Spray Dryer (atomizer)

FOB Price:Price can be negotiated

Payment Terms: T/T, L/C, D/P, D/A

Update Time:2020-11-21

Contact Supplier

Product Description

Descriptions

“Mingxin drying”as one of the leading manufacturer of big spray Dryer in China,we have evaporation capacity 5kg 10000kg high-speed centrifugal spray technology. It is widely used for chemical industry and food industry 10,0000 grade . our company developed high speed centrifugal spray atomizer with rotate spray nozzle, this atomizer can spray 22 T solutions.

Spray drying is the technology most widely used in the liquid technology shaping and in the drying industry.The drying technology is most suitable for producing solid powder or particle products from liquid materials,such as:solution, emulsion, suspension and pumpable Paste states,For this reason,when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.

Principle

As for drying area sophisticated technology, spray dryer is a kind of new type and high efficient drying technology equipment, it just need several seconds to evoprate solutions,suspensions,meltwater and paste moisture, then get powder, granule.hollow sphere or round granule products.

After been filtered and heated the air enters into the air distrbutor on the top of the dryer.The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower,the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Throug the very short time of contacting the heat air,the materials can be dried into the final products.The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.

Features

The drying speed is high when the material liquid is atomized,the surface area of the material will increase greatly.In the hot-air flow,95%-98% of water can be evaporated at a moment.The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.
Its final products own the good uniformity, flow ability & solubility. And the final products are high in

purity and good in quality.
The producition procedures are simple and the operation and control are easy.The liquid with moisture contents of 40-60%(for special materials,the contents might be up to 90%).can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting,so as to reduce the operation procedures in the production and to enhance the product purity.The product particle diameters,looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and managment.

Technical parameters

item\parameter\spec	LPG
item\parameter\spec	5	25	50	100	150	200-8000
inlet temperature a??	140-450 automatically controlled
outlet temerature a??	80-110
Max.water evaporation capacity	5	25	50	100	150	200-8000
centrifugal spraying nozzle transmission mode	compressed air transmission	Mechanical transmission
Rotation speed rpm	25000	18000	18000	18000	15000	8000-15000
sprayingdesc diameter mm	50	120	120	120	150	180-340
Heat supply	Electricity	Electricity+steam	Electricity+steam,fuel oil and gas			Coal hot air oven
Max.Electric heating power kw	8	31.5	60	81	99
overall dimensions m	1.8×0.93 ×2.2	3×2.7 ×4.26	3.7×3.2 ×5.1	4.6×4.2 ×7	5.5×4.5 ×7	Depends on the concrete conditions
Dried powder restoring tate %	≥99	≥99	≥99	≥99	≥99	≥99
Note:For the water evaporation capacity, material property,the inlet and outlet tempratures,please refer the right diagram for reference.
