Product information

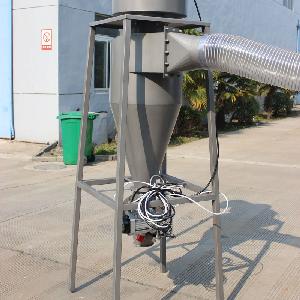

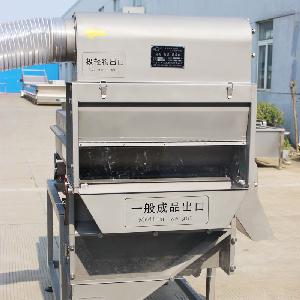

The material is sent to the inlet end of the screen frame with electromagnetic vibration device through the elevator. The screen frame vibrates periodically under the action of electromagnetic force. The material in the screen frame is constantly thrown up and jumps forward. When the material moves forward evenly and continuously, it will be automatically graded through different specifications of 45 ° plexiglass inclined sieve, and the small powder particles and super large particles will be put into different levels of recycling boxes. The rest of the materials enter the air chamber, and the heavy objects mixed in the materials fall into the heavy object recovery box under the action of the floating air flow, and the light objects are brought to the cyclone dust collector and enter the waste material recovery box through the air shut-off device. Authentic products are sent from the front end to the next process.
Technical parameters
| Dimension (mm) |
Hoist |
Magnetic vibration wind selector |
Cyclone |
|||

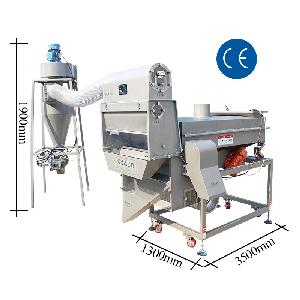

| 3500*1300*1900 |
Motor (v) |
Conveyor (mm) |
Sieve screen |
Power (kw) |
Power (kw) |
Wind closing power (w) |
| 350 |
380*2 |
φ3.5-φ20 |
0.45 |
1.1 |
60 |
|
| Capacity (kg/h) |
|
|
||||
| Dried spring onion |
Sweetened product |
|
|
|||
| 200-400 |
800-1000 |
|
|
|||

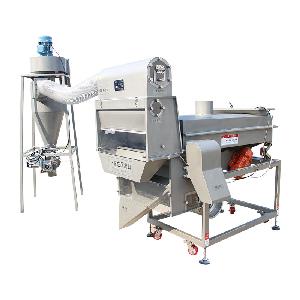

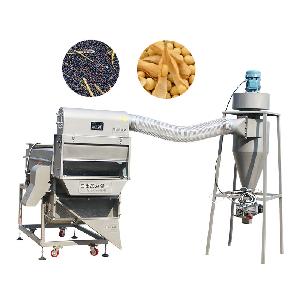

The unit is a new product which imitates the imported equipment in 2005. The utility model is composed of a hoist, a magnetic vibration screening air separator and a dust collector.
