suitable for filling and sealing cup with jam,honey,Margarine,jelly etc.

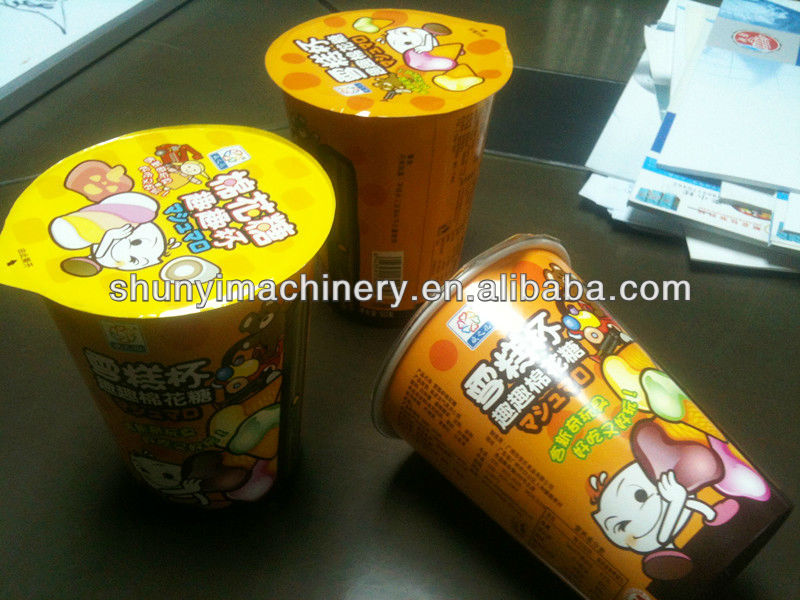

Marshmallow cup with little gift inside filling &sealing Machine
Function:
1. This machine is suitable for filling and sealing cup with jam,honey , Margarine ,jelly etc.
2. Electric and pneumatic combined driving are used, resulting in stable driving in order to sa v e man power and reduce cost. Supply of cups , filling , sealing, trimming, output of products and take -up of waste film are fully automatic.
3. High efficiency, four cups can be filled, sealed, and trimmed at the same time in the machine.
4. Revision device of photoelectric sensors are installed in the machine to auto revise the positive of sealing film through detection of color mark, assuring the accurate position of the sealing pattern.
5 . Hot sealing device, tight sealing, and absolutely reliable quality.
6 . Can mix date printer according to customer's dem an d.
Technical parameter:
| Model |
CFD-4 |
| Speed |
4200 cups /h |
| P ower consumption |
380V/50Hz 3 phase 4 lines |
| M ax air consumption |
0.6 m ³ /min |
| Electric consumption |
5.5kw |
| Dimension |
Approx. 30 00*800*1680mm |
| Weight |
A pprox 800kg |
| Type: |
Sealing Machine
|
Condition: |
New
|
Application: |
Beverage
|
| Packaging Type: |
cup
|
Packaging Material: |
Plastic
|
Automatic Grade: |
Automatic
|
| Driven Type: |
Pneumatic
|
Voltage: |
380 v
|
Power: |
5.5kw
|
| Place of Origin: |
Guangdong China (Mainland)
|
Brand Name: |
SY
|
Model Number: |
CFD
|
| Dimension(L*W*H): |
Approx.3000*800*1680mm
|
Weight: |
about 800kg
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
