1. New design idea,two times waste heat recovery;
2. drying processing shorter 30%;
3. Adopt touch screen controller
KINKAI Air Source Heat Pump Drying Machine Introduction

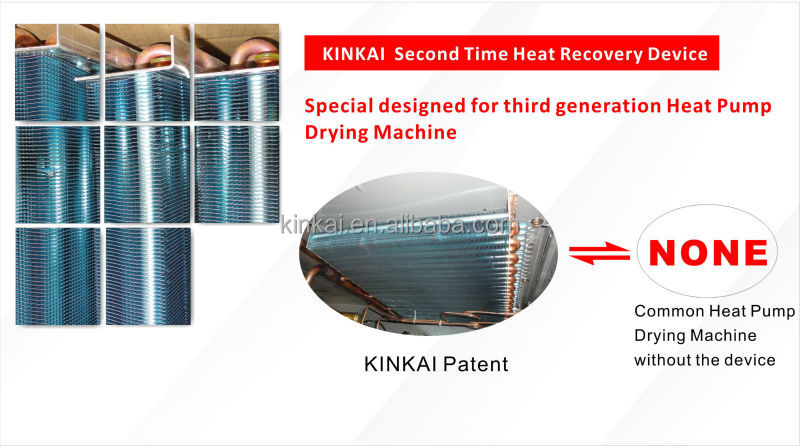

1. New designed energy saving Dryer with two times waste heat recovery
Adopt closed type circulating heating or cooling drying, drying performance better than ordinary heat pump dehumidification drying energy saving over 30%, no exhaust waste heat emissions, no noise pollution, environmental protection
2. Economical:
Heat pump dryer running cost just as 40% of oil dryer, 50% of coal burning boiler, 30% of electric boiler.Heat pump dehumidification drying method of the closed cycle, saving costs
3. Low temperature drying method(15-50°C/60°C/80°C),similar nature drying.
4. During drying, the material does not craze,does not distortions, non-discolouring,never degenerate, non-oxidize, drying completely,with good Rehydration, keep nutrient content;
5. Using our patented technology: circulating heating & dehumidification, broaden the application of a dehumidifier in industrial drying

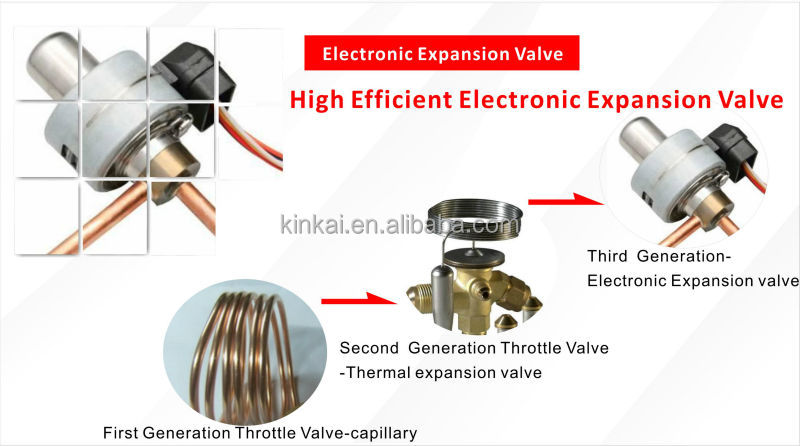

6. Adopt international brand name compressor, expansion valve etc

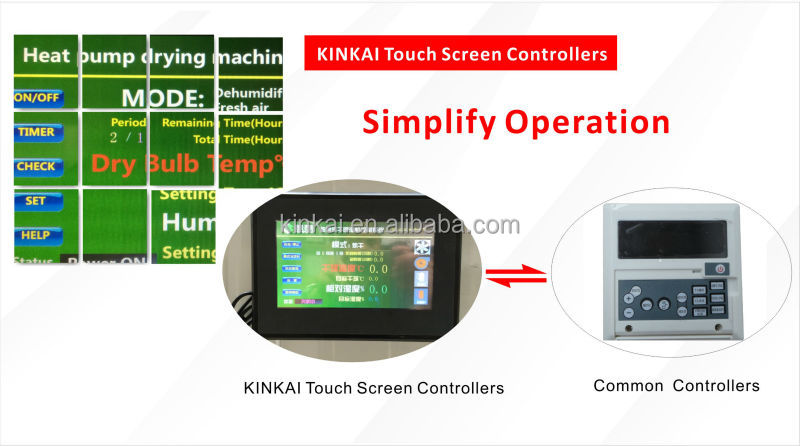

7. Adopt PLC+touch screen controllers, operation easily and more accurate
8. Adopt programmable control mode, can be set different drying curve, satisfy different kinds material drying methods
9. Multifunctions: heating drying / cooling drying / dehumidify
10.Many protection: high pressure protection,low pressure protection, overloading protection and phase protection etc
11.Power failure remember
12.Stable operation without being influenced by weather
13.Can supply dryer+drying chamber
Features
Technical Parameters
Model | JK03RD | |
Power supply | V/PH/HZ | 380/3/50 or 220/1PH/50 |
Power input | KW | 2.8 |
Running current | A | 8/17 |
Auxiliary electric heater(option) | KW | 9 |
Heating capacity | KW | 12 |
Cooling capacity | KW | 7.5 |
Dehumidification amount | L/H | 8 |
Max. hot air Temperature | °C | 75 |
Working ambient temperature | °C | -10~45 |
Refrigerant | Kg | Mixture type/2.5 |
Compressor | Type | Scroll |
Brand | Copeland/Danfoss | |
Quantity | 1 | |
Noise | dB(A) | 60 |
Heat regenerator size | mm | 500*350*350 |
Fan motor for heat regenerator (dehumidify) |
Power input | 200W |
Wind volume | 2000m3/H | |
Size(mm) | 450*330*380 | |
Wind valve | Power input | 6W |
OPEN | Exchange fresh air | |
CLOSE | Drying | |
Size(mm) | 480*320*120 | |
Fan motor for Evaporator (1 unit) |
Power input | 250W/unit |
Wind volume | 4600m3/H | |
Rotate speed | 1350RPM | |
Hot air outlet | mm | 600*1100 |
Hot air return inlet | mm | 690*1100 |
Dimension(L*W*H) | mm | 1650*960*1280 |
Net weight | Kg | 210 |
Gross weight | Kg | 240 |

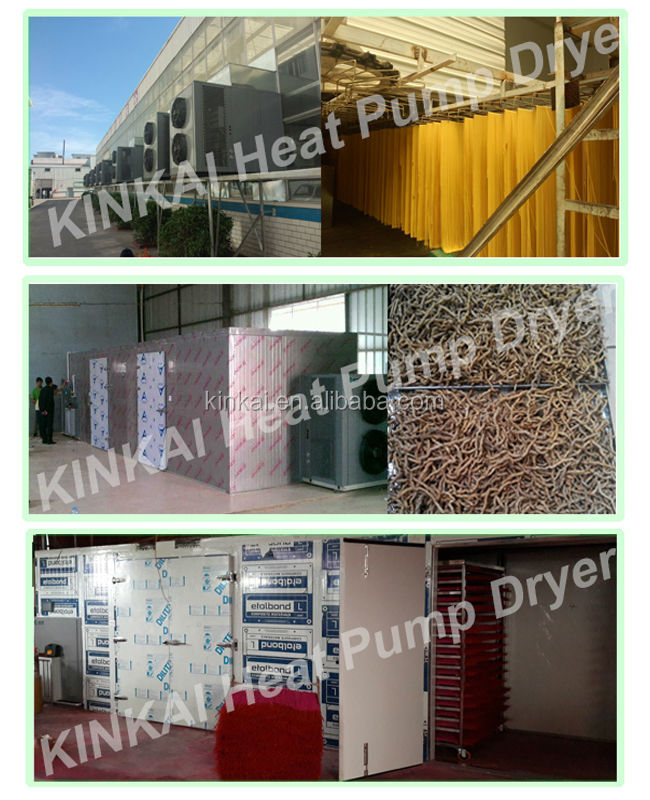

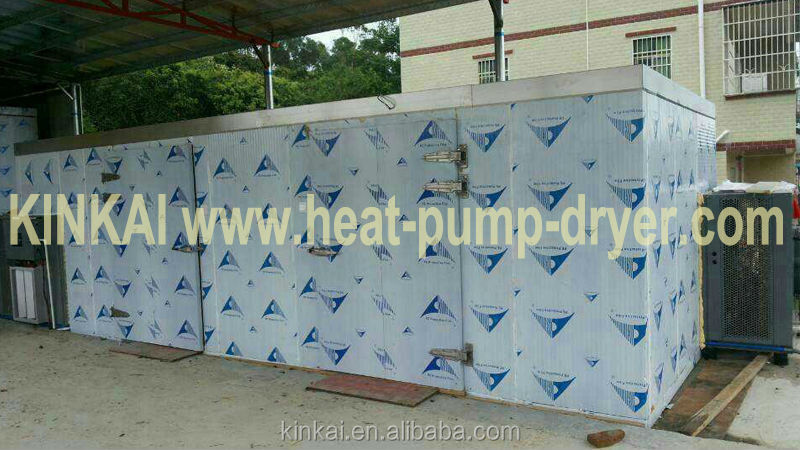

Drying project pictures
Place of Origin: |
Guangdong China (Mainland)
|
Brand Name: |
KINKAI
|
Model Number: |
JK06RD
|
Type: |
Meat Processing Machinery
|
After-sales Service Provided: |
No overseas service provided
|
power input: |
5.8KW
|
power supply: |
380V/3PH/50HZ
|
rated current: |
12.6A
|
heating capacity: |
26KW
|
cooling capacity: |
20KW
|
dehumidify capacity: |
20L/H
|
auxiliary electric power input: |
9KW
|
suitable for drying chamber: |
20-30m3
|
drying machine body: |
steel(stainless steel optional)
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
