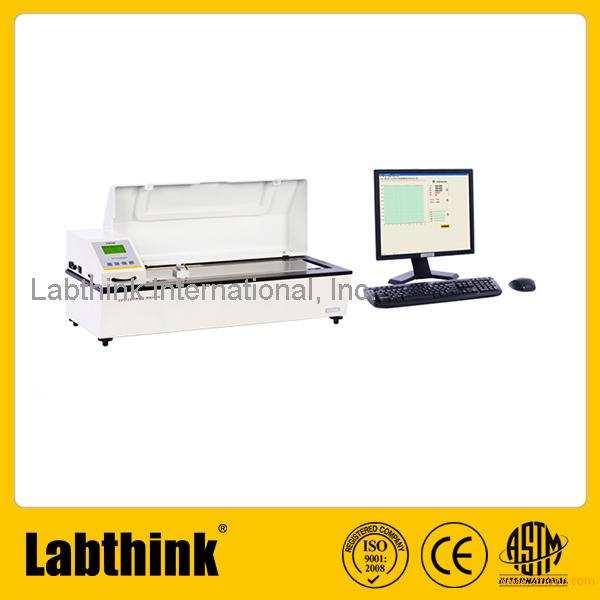

|    FPT-F1 Mechanical Measuring Instruments for Tape Material Peeling Tester can be used to test coefficient of static and kinetic friction of plastic films, sheets, foils, paper, cardboard, PP woven bags, fabric( fabric style test), metal-plastic composite strip/belt for communication cable, convey belt and textile, as well as peel strength test of adhesive laminated products, medical adhesive bandage, release paper and protection films.
Mechanical Measuring Instruments for Tape Material Peeling Tester conforms to various national and international standards:
ISO 8295, ISO 8510-2, ASTM D1894, ASTM D4917, ASTM D3330, TAPPI T816, TAPPI T549, GB 10006, GB/T 2790, GB/T 2791, GB/T 2792
| Basic Applications |
- Plastic Films and Sheets
Coefficient of static and dynamic friction tests of plastic films and sheets
|
- Paper and Paperboard
Coefficient of static and dynamic friction tests of paper and paperboard
|
- Textiles, Non-woven Fabrics and Woven Bags
Coefficient of static and dynamic friction tests of textiles, non-woven fabrics and woven bags
|
- Rubber
Coefficient of static and dynamic friction tests of rubber products
|
- Aluminum Foils and Aluminum Foil Composite Films
Coefficient of static and dynamic friction tests of aluminum foils, aluminum foil composite films and other metal products
|
- Printing Matters
Coefficient of static and dynamic friction tests of printing matters
|
- 2 testing modes are available in this instrument including coefficient of friction test and 180° peel test
- 7 test speeds and 3 test ranges could be selected as required
- This instrument conforms to multiple standards of ISO, ASTM and GB and the user could select testing methods as required
- Wide range and high-precision of automatic temperature control system to support tests at different temperatures
- This instrument is controlled by computer and micro processing unit which is convenient for user's operation
| Items |
FPT-F1 |
| Capacity Range |
0~5 N, 0~10 N, 0~30 N |
| Accuracy |
0.5% FS |
| Test Speed |
50, 100, 150, 200, 250, 300, 500 mm/min |
| Temperature |
Room Temperature ~ 99.9°C |
| Instrument Dimension |
850 mm (L) x 350 mm (W) x 290 mm (H) |
       Labthink instruments have been widely used and recognized by more than 6,000 scientific institutional laboratories, inspection organizations, and universities and corporate quality control departments.
Labthink is dedicated to providing professional consulting, testing instruments, support services, and quality assurance solutions for packaging in various fields. |
