Micro beer brewery system with turnkey project,China ZHENGMAI price supplier

A ) 20BBL Brewhouse With False Bottome Detailed Configurations :

Description of goods	Beer Brewhouse ( three Tanks with three vessels)
Capacity	20BBL
Material	Stainless SUS 304 Korea Pohang Brand without rust
Main workmanship	Numerical control plasma,laser cutting line and pure argon ags welding; professional machine polish for inside and ouside .
Product characteristic	1. Mashing / Boiling tanks; Lauter tanks ; Whirlpool tanks ( with heating function also can be hot liquor tank)
	2. Technology :German method
	3. Finishing: mirror polishing ≤ 0.6um
	4. Separate CIP with ferrule connections .
	5. Insulation: Mineral Wool between inner and outter tank
	6. Pipeline connection : With mashing pump & wort pump to surpport all the pipelines.
	7. With wort heat exchanger , yeast adding device and wort oxygenation part.
	8. Electric elements : With high quality Chinese famous brand or the international famous brand also is avalilable .
	9. Matched fittings: the butterfly valves , pipeline , the manway door , sight glass , CIP balls , false bottom ( filtering plate inside Lauter tun) are all with sanitary grade and high durable quality.
	10. Customized design is available .
Product more showing
Trade term	FOB ; CIF
Payment terms	T/T, L/C
MOQ	Bitmap Bitmap Bitmap 1 set, the more the suitable in quotation
Supplying ability	8 sets in per month, based on capacity
Services	2 years warranty for our all products
Certification

B) Zhengmai Turnkey Project Main Features

1. Mashing system : it is the semi-automatic machine with seperated power controller which is fixed near to this

   sytem to be convenient to operate it , the heating process is automatic with 5 phase programmes inside ; this

   brewhouse can brew 2-3 times per day , the hot water absorbed from the wort heat exchanger can be reused

   to save the energy.

2. Fermentation system : Automaticly cooling system with whole stainless steel cooling pipeline which will be

    more durable during the operation , the cooling jacket adopts dimple welding with better cooling function , the

    chiller compressor with Copland brand .

3. The material adopts stainless steel Korea Pohang Brand , the polish can be 0.4UM with professional polishing

    machine .The welding adopts arc argon protection welding witihout any leakage with 48 hours pressure and wa-

    -ter testing .

4. The optional elements : we can also offer Siemens / ABB motor and pump , Danfoss speed frequency device ,

    Belimo Solenoid , Wilo ice water pump and CIP pump ,Schneider electric elements inside of the power cabinet

    with international repair function .

5. We can also offer installation & dubugging service , also you can make the installation according to our CAD and

   3D drawing , since all the pipeline adopts stainless steel SUS304 pipeline with ferrule connections . Our installation

   is quick and easy to operate .

6. We can also arrange the shippment from China to Canada with containers , all the products will be packed for safe

    sea shippment .

7. Our quality gaurangee for the tank is 3 years , 1 year for the electric elements , during this time we will change all

   the destroied elements for free , we also match the enough auxiliary fittings for you .

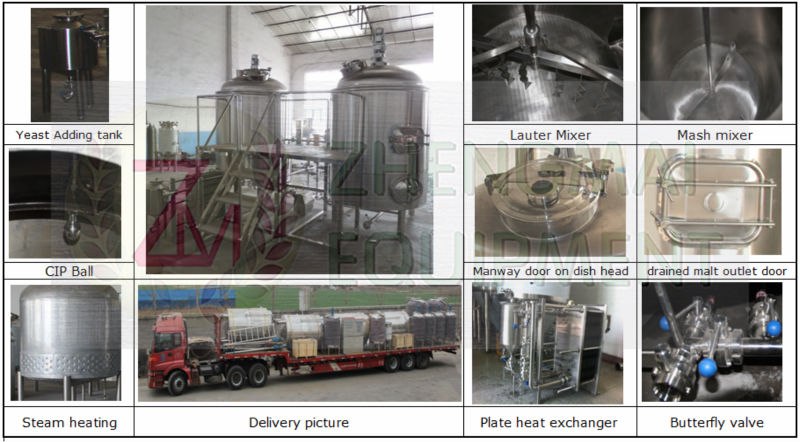

C) Showcase for more details

a) more details for brewhouse

b) more detailed pictures for the production

D) Zhengmai's advantage in this business

1. We are not the biggest , not the most long history , but we are the honest and professional ;

in the future , if we are the biggest we will be the best ;

2. Our quality is the best , we have our own agent for European market , our machines are

welcome in the European market ;

3. We have more professional machine and workers with more than 10 years' manufacture

experience for the production ;

4. We have the professional sales & engineer surporting team and after-sales service for your project .

Welcome you to visit our factory to check more details , you will believe our saying are the truth

not just the saying !
