Food online > Products > Food Processing Machinery >

micro draft beer making machine,China Zhengmai price supplier

micro draft beer making machine

FOB Price:Price can be negotiated

Production Capacity:5 Set/Sets per Month

Payment Terms: US $5,000 - 10,000 / Set

Update Time:2014-09-19

Contact Supplier

Product Description

1. Beer making technology : Germany technology
2. This system has exported to France
3. With CE and ISO9001 Certification

Complete steam fired brewery 300L/batch installed at France( Ahuzat habait brewery).

The brewhouse include 3 vessels: Kettle, Lauter and whirlpool. Kettle and whirlpool both steam fired. In this case whirlpool can be used as hot Liquor tank. Brewhouse operation controlled by automatic controll unit installed at working plattorm:

Steam operation controlled by multisegment programmable controllers with option to save up to 10 brewing recepies. This option allow automatical boiling and mashing ability.

Wort and Filter pumps have frequancy speed controlls operated by original Danfoss VDF controllers.

The pumps are sanitary grade driven by original Siemens or ABB silent motors.

Temperature of Lauter shown on the controll box by temperature controller.

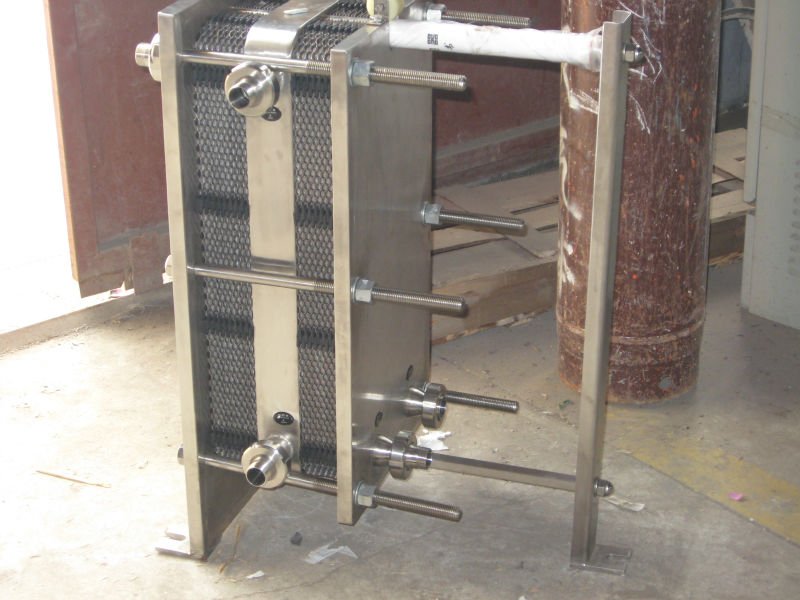

The temperature of the transfered wort to fermentation tanks controlled by temperature controller installed at heat exchanger and shown on the control box. Heat eachanger is 2 circuits exchanger made from SUS304 with installed wort filer to keep heat exchanger clean from grains.

The material of brewery is sanitary grade SUS304 made by Pohong Korea, the best stainless steel for Beverage industry.

Inner thickness of cylinder is 3 mm and of the bottom is 4 mm.

Outer cladding thickness is 2.5 mm. The tanks insulated by PU foam 100 mm thickness.

Heating process done by steam generator 100kg/h of steam. The steam generator can be LPG gas or electricity fired. The steam generator from CE sertified supplier:

Steam generator is full automatic operation by integral control box with full set of safety tools and alarms. Steam generator equipped with original Italian gas burner and supplied with water softener system to keep the steam generator at best conditions for the years. Water softener have full automatic operation by pregrammable controller.

Fermentation line:

Fermentation line include Glycol cooling tank, chiller group, ice water pump and fermentation tanks.

Glycol cooling tank made from SUS304 with copper coil inside for freon cooling from the chiller:

Ice water pump made by SUS304

We always supply 2 ice water pumps and install them together with operation from fermentation control cabiner. Second pump installed by pass for safety operation.

Fermentation tanks

This tanks made as Unitanks with following accessories:

Digital pressure meter
Safety pressure release device (Shpundapparat)
Digital pressure release tap
Vacuum relief device
Analog thermometer
PT100 thermometer connected to PLC on the control cabinet
Rotary cleaning ball
Sampling tap
Level gauge
Side or upper manhole

Chiller for glycol cooling

All our chillers equipped with original Copeland compressors and original Emerson climate control system. The freon is "green" allowed to import for Europe and USA ( R407 or others). Expansion valve and solenoid valves are original Danfoss brand.

Cooling pipe line produced 2 ways according to customer needs:

1. Full stainless steel line with insulation.

2. Flexible PVC pipes and quick connectors suitable to wors years till -50 degree C.

Main advantage of PVC connectors related to common used PPR welded connections is no leackage of an expensive glycol.

Control cabinet of fermentation line:

Every fermentation or storage tank have programmable temperature control at the cabinet. The process of cooling is fully automatical.

If you have interests and want more details ,please feel free to contact us ,Thanks a lot!

Processing:	Fermenting Equipment,Arc argon welding	Condition:	Used	Year:	2012
Place of Origin:	Shandong China (Mainland)	Brand Name:	Zhengmai	Model Number:	ZM-1000L
Processing Types:	Beer	Voltage:	Customized	Power(W):	Customized
Dimension(LWH):	up to the size	Weight:	/	Certification:	CE , pressure certification , ISO9001
Warranty:	2 years	After-sales Service Provided:	Engineers available to service machinery overseas	outter jacket material:	Luoyang Copper
Inner tank material:	stainelss steel 304 Pohang Brand	brewing tachnology:	Germean type technology	Welding:	arc argon protection welding
Polish:	up to 0.4um with professional machines	beer type:	draft beer with various receipes
