Milk UHT Sterilizing Machine,China changlong price supplier

Milk UHT Sterilizing Machine

FOB Price:Price can be negotiated

Production Capacity:5 Set/Sets per Month

Payment Terms: US $52,310 / Set

Update Time:2014-09-18

Contact Supplier

Product Description

Milk UHT Sterilizing Machine
1. full automatic operation
2. aseptic sterilizer
3. touch screen showing
4. PLC controlling

Milk UHT Sterilizing Machine

product introduction
1.technology process

5degree to 65degree homogenization to 95 degree(30s) to 140degree (4s)

2.technical parameters

model and specification	capacity	steam consumption	steam pressure	power	outline dimensions of integral type	outline dimensions of split type	weight	pipe diameter
model and specification	t/h	kg/h	bar	kw	lwh	lwh	kg	material	steam	medium
TG-UHT-1MQJ	1	40	6.0	4.0	3.31.61.8		1960	25	DN25	25
TG-UHT-1.5MQJ	1.5	60	6.0	4.0	3.31.61.8		1960	25	DN25	25
TG-UHT-2MQJ	2	80	6.0	6.0	3.51.82.0		2160	38	DN25	38
TG-UHT-3MQJ	3	120	6.0	6.0	3.51.82.0		2420	38	DN32	38
TG-UHT-4MQJ	4	160	6.0	7.0	4.52.02.0	6.50.91.4	2570	38	DN32	38
TG-UHT-5MQJ	5	200	6.0	7.0	4.51.82.0	6.50.91.4	2940	51	DN40	51
TG-UHT-6MQJ	6	240	6.0	7.0	4.52.02.2	6.50.91.4	3300	51	DN40	51
TG-UHT-8MQJ	8	320	6.0	11.0	4.52.02.2	6.50.91.4	3700	51	DN50	51
TG-UHT-10MQJ	10	400	6.0	11.0	4.52.02.2	6.50.91.4	4200	51	DN50	51

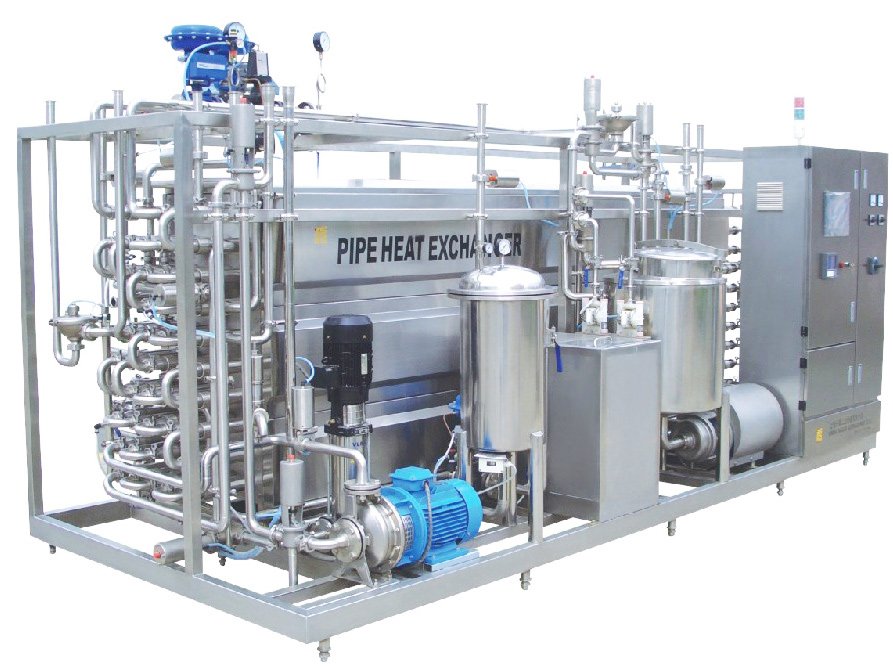

3. product picture

Place of Origin:	Shanghai China (Mainland)	Brand Name:	changlong	Type:	milk sterilizer
Processing Types:	Dairy Product	Processing:	Sterilizer

Company Profile

Name: Shanghai Changlong Industrial Equipment Co., Ltd.

Main Products: Plate Heat Exchanger,Plate Pasteurizer,Tubular UHT Sterilizer,Pasteurizing Equipment,Yoghurt Pasteurizer

Business Type: Manufacturer, Trading Company

Total Employees: 101 - 200 People

Established Year: 2002

Main Markets: Western Europe, Eastern Asia, Mid East, Oceania, Africa

Address: No.1555,Xiaonan Rd,Jianghai Economic Zone ,Fengpu,Shanghai

Shanghai Changlong Industrial Equipment Co., Ltd. is a leading manufacturer of sterilizing equipment in China. We focus primarily on the excellent design and production of our sterilizers combined with superb customer service. We mainly manufacture products such as multi-series plate (tabular) heat exchangers; tubular/plate sterilizers; ice cream whole set equipment; flash evaporation equipment; degasser units (degasser units); and CIP (Cleaning in Place) steel storage tanks. We also provide post-sales service of our sterilizing equipment, including installation and any other services as the requirements you may have.

Founded in 1996, now we have more than a decade of experience in the manufacture of heat exchangers. We also maintain a leading position in the markets of domestic heat exchangers and sterilizing equipment. With our high level of products and services, we have also established solid relationships with several large domestic enterprises, such as Mengniu, Yili, Bright Dairy, Jiabao, Jianlibao, and Dalian China Milk Enterprises, from which we receive consistent and high reviews. All equipment we manufacture here in China is also widely applied in such fields as dairy products, fruit juices, the wine making industry, chemical pharmacy, power stations, and hotels.

Excellent employees are vital to a successful enterprise and quality products. Our company has gathered several professionals who specialize in the design and engineering of heat exchangers and sterilizing equipment. Our technical consultants and professional engineers are responsible for designing and modeling, guaranteeing that our sterilizing equipment, heat exchangers and other products are safe and reliable. Our efforts in the pasteurizing equipment industry have won us markets internationally, including Germany, Japan, Australia, the CIS, Southeast Asia, and the Middle East. We have even established an Australian Changlong Company in Australia.

Our equipment at Changlong has passed the examination performed by the National Quality Supervision and Inspection Center. Our sterilizing equipment is manufactured in accordance with ISO9001:2000 national quality management system. The quality control we employ in our production of sterilizing equipment guarantees you get the best sterilizing equipment available. Our products have been awarded the Technical Results Transformation Prize of Shanghai and New Product Plan Prize of Shanghai. These achievements illustrate how Changlong has stepped into the high-tech enterprise arena in fact.

The feeding pump automatic control system of our sterilizers, nozzles of degasser units and plates of heat exchangers all have national patents. With a registered trademark that the State Administration for Industry & Commerce has certified, our equipment has been widely applied among 45 industries, and we have also successfully registered in Russia and Japan, under the authorization of CCPIT.

We at Changlong are exporting our sterilizers internationally. Our location in the trade center of Shanghai allows us with more convenient shipping of our sterilizing equipment. With products at better prices, we are able to pass this savings on to our customers. We sincerely look forward to working with even more global consumers, and you can be assured that we will welcome your business by providing high-quality sterilizing equipment and stellar customer service.
Changlong products not only enjoy high reputation in the country,but also have been exported to Germany,Japan,Australia,Russia,Southeast Asia and Mid East etc.countries and areas.It has also established Australia Changlong Company in Australia,Which has made it more convenient and prompt to push domestic products to the world. more
