Motor Power:3.0kw
Dimension :735*500*1005mm
weight :112kg
operation principle :

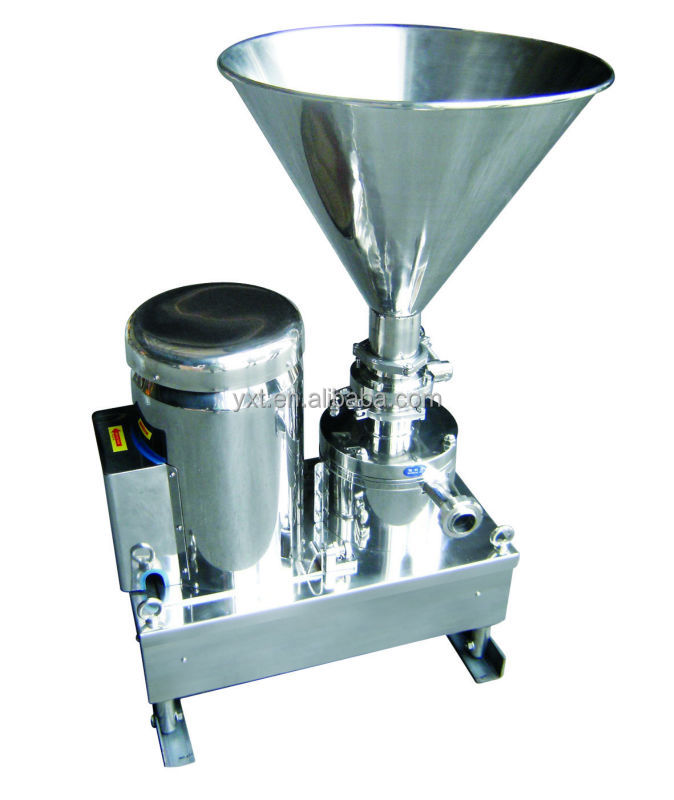

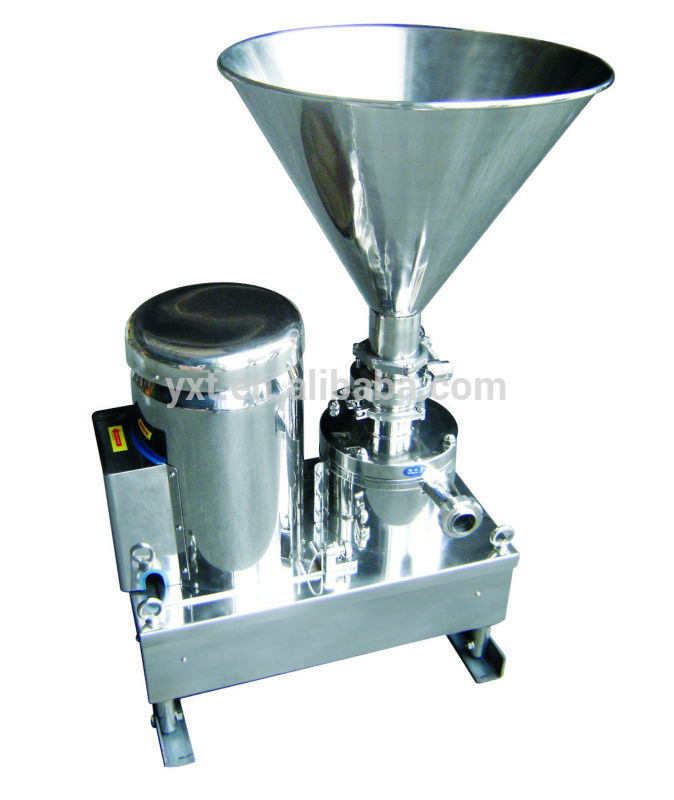

the water and powder micer is composed of main machine vovy and centrifugal pump water wheel .which are vertically installed .through a double layer wall pipe .the liquid materials and solid materials are sepatately pumped in .which can prevent them form agglomerating before entering into the main body .when the loquid enters into the main machine vody of Mixer at high speed .vacuum will produce in the center of water wheel to suck the solid materials .the solid materials will be evenly sucked in through the refulation od valve under the hopper
impeller diameter | Φ170mm | Φ170mm | Φ170mm |
liquified inlet and outlet diameter | Φ38mm | Φ51mm | Φ51 |
Max work pressure | 0.3Mpa | 0.3Mpa | 0.3Mpa |
Absorbing temperature | ≤80deg | ≤80deg | ≤80deg |
Motor power | 3.0kw | 5.5kw | 7.5kw |
Diemension | 735*500*1005mm | 732*500*1005mm | 732*500*1005mm |
Weight | 112kg | 125kg | 155kg |
Place of Origin: |
Zhejiang China (Mainland)
|
Brand Name: |
YXT
|
Theory: |
Mixed Flow Pump
|
Structure: |
Other
|
Usage: |
Water
|
Power: |
Electric
|
Standard or Nonstandard: |
Standard
|
Pressure: |
Low Pressure
|
material: |
stainless steel
|
