Mini Automatic Instant Noodle Processing Line
1. this is normal noodle production line
Features:
1. It has perfect technology, compact structure, original design and stable performance, is developed on the base of requirements of the world market.
2. Convenient operation, low energy and small floor space.
3. The investment for this line is only one tenth of that lager size equipment, especially suitable to small-sized or self owned enterprise.
4. The corrugated instant noodle produced by this line is tenacious, smooth and transparent. It is very easy to be saturated by water.
5. All the machinery is made of stainless steel 304.
6. Turnkey project provided, from raw materials to packing procedures.
7. Heating power: electricity or steam
8. Final package: cup or plastic bag
9. Noodle shape: round or square
Introduction:
BFP series of automatic Instant Noodles line, with perfect technology,compact structure,original design and stable performance, is developed on the base of similar products and requirements in the world market, it realizes high automation, convenient operation,low energy and small floor space the assures all working procedures from mixing to finished products and be accomplished once.

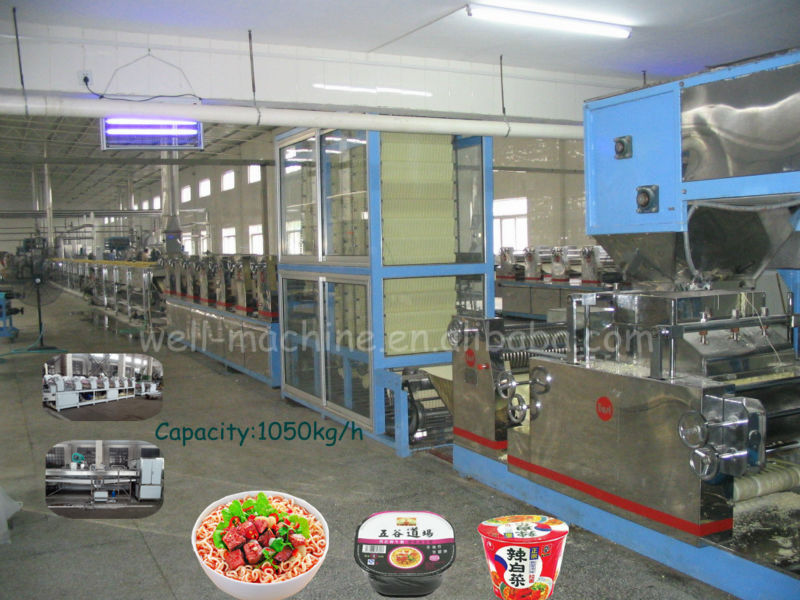

Whole product line showing:
| NO |
Production name |
QTY |
remark |
| 1 |
Vibrating shifter |
2 |
Power0.25kw,norm:900mm × 500mm.stainless steel body and net |
| 2 |
Hopper |
2 |
Volum:0.7m 3 ,pneumatic rorating to open the door.stainless steel made |
| 3 |
Brine mixing machine |
2 |
Power1.5KW,for pump 0.75kw,volume :1000L |
| 4 |
Brine measurement device |
1 |
Volume :130L,solution feed pump:0.75kw |
| 5 |
Double spindle and dough Kneading machine |
2 |
Power:11kw,200kg/times, manual rorating to open the door |
| 6 |
Disc maturation machine |
1 |
Power:3kw,material plate for specification: 1800mm×410mm |
| 7 |
Compound mangler |
1 |
Roll width:510mm,3groups roller machine,steel,5.5kw,for frequency conversion, stainless steel frame cover |
| 8 |
Successive dough pressing machine |
1 |
Roller width;510mm,6 groups of roller, steel machine frame,power:5.5+5.5kw,variable frequency speed control. the imported Japanese bearing for the last press rolls |
| 9 |
Single noodle steaming Machine |
1 |
Length:26m ,stain steel production |
| 10 |
Squareness row separator Machine |
1 |
main transmission:1.5+1.5kw,frequency conversion, take off noodles shaft:0.25kw,fan;0.9kw * 2 |
| 11 |
Frying machine |
1 |
Main transmission:2.2kw,frequency conversion, vertical circulation pump:11kw,the gear pump:2.2kw,the fan knife:0.9kw,80m 2 spiral plate heat exchanger :1 |
| 12 |
1 |
Power:1.5kw,cycloning0.37kw * 12,diameter:500mm |
|
| 13 |
Shunt conveyor |
1 |
Main transmission:1.1kw(mechanical stepless speed) |
| 14 |
Inspection conveyor (curved conduit) |
2 |
Main transmission:0.37kw(mechanical stepless speed) |
| 15 |
Finished goods conveyor |
2 |
Main transmission:0.37kw(mechanical stepless speed) |
| 16 |
Electric control cabinet |
1 |
Frequency control, PLC control(excluding electric power wires before the electric cabinet) |
| 17 |
Install accessories random Tools |
1 |
|
Contact me to get more information :
| Condition: |
New
|
Type: |
Noodle
|
Place of Origin: |
Henan China (Mainland)
|
| Brand Name: |
weier
|
Model Number: |
BFP-12Y
|
Voltage: |
380v
|
| Power(W): |
83000
|
Dimension(L*W*H): |
60*6*3m
|
Certification: |
for reference only
|
| Warranty: |
1 year
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Name: |
Instant noodle production line
|
| Roll width of mangler: |
510mm
|
Production Capacity: |
1050kg/h
|
|
|
|
|
|
|
|
|
|
|
|
|
