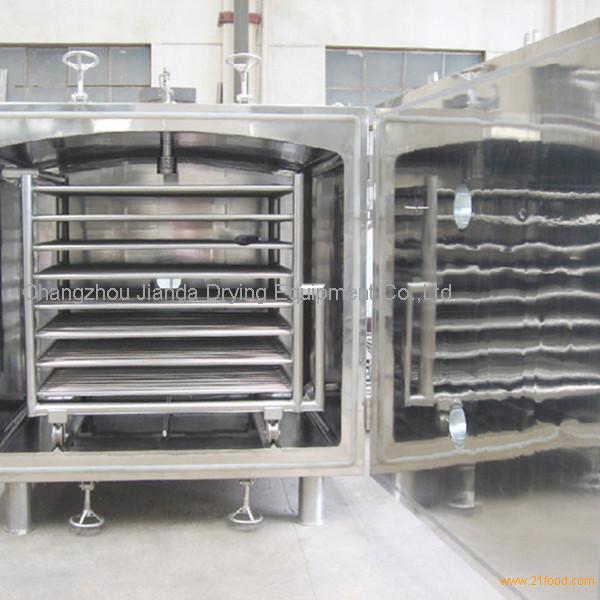

Model FZG Square and Model YZG Round Static Vacuum Drier

FOB Price:Price can be negotiated

Payment Terms: T/T,L/C,D/P,D/A

Update Time:2023-05-04

Contact Supplier

Product Description

Descriptions
Vacuum dry is divided into static and dynamic, Model YZG round vacuum drier and Model FZG square vacuum drier belongs to static drier.
It is sui table for drying heat sensi t ive raw materials which often decompose, polymerize or metamorphose under high temperature. It is widely used in the field of pharmaceutical, chemical, foodstuff and electronic industry.
Principle
To heat and dry raw material under the state of vacuum is called vacuum drying. It use vacuum to pump air and humidity out. Making the work-room on the vacuum state. The drying rate increases greatly and energy is saved.Remark: if use condensator, the solvent in raw material can be recovered. If use SK series water ring Vacuum Pump or ZSWJ series hydraulic inject vacuum pump sets, condenser can not be used and the investments could be saved.
Features
Under the condition of vacuum, the boiling point of raw material will decrease and make the evaporation's efficiency higher. Therefore, it can save the conducting area of Evaporator under the same quantity of heat transfer.
The heat source for evaporating can be low pressure steam or surplus waste steam.
The heat of evaporation loss is less.
Before drying, the drier can be disinfected. During the period of drying, there is no impurity material mixed. It is in conformity with the requirement of GMP.
It is static type drier. So integrate shape of raw material will not be danaged.

YZG-600round Static Vacuum Drier

YZG-1000round Static Vacuum Drier

YZG-1400square Static Vacuum Drier

FZG-15round Static Vacuum Drier

System Chart of Water Heat Hot, Solvent Recover And Vacuum Drying

Chart of System for Steam Heat, Not Solvent Recover And Vacuum Drying

TECHNICAL PARAMETERS

Name	YZG-600	YZG-800	YZG-1000	YZG-1400A	FZG-15
Inside size of chamber (mm)	φ 600x976	φ 800x1247	φ 1000x1527	φ 1400x2054	1500x1400x1220
Outer size of chamber (mm)	1135x810 x1020	1700x1045 x1335	1693x1190 x1500	2386x1657 x1920	1513x1924 x2060
Layers of baking shelf	4	4	6	8	8
Distance of layer (mm)	81	82	102	102	122
Size of baking pan (mm)	310x600x45	520x410x45	520x410x45	460x640x45	460x640x45
Number of baking pan tray	4	8	12	32	32
Permitted pressure inside the pipe of baking shelf (MPa)	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784
Temperature inside chamber (°C)	35-150	35-150	35-150	35-150	35-150
Vacuum inside chamber unload (MPa)	-0.1
Under the condition of -0.1 Mpa and heating temperature is 110°C, vaporized rate of water	7.2
If use condensator, type and power of vacuum pump(kw)	2X-15A 2kw	2X-30A 3kw	2X-30A 3kw	2X-70A 5.5kw	2X-70A 5.5kw
Ifnotusecondensator,typeandpowerofvacuumpump(kw)	SK-0.8 1.5kw	SK-3 2.2kw	SK-3 2.2kw	SK-3 4kw	SK-3 4kw
Weight of drying chamber(kg)	250	600	800	1400	2100
