Model WFJ pulse dust absorption fine powder pulverizer,China Lingling price supplier

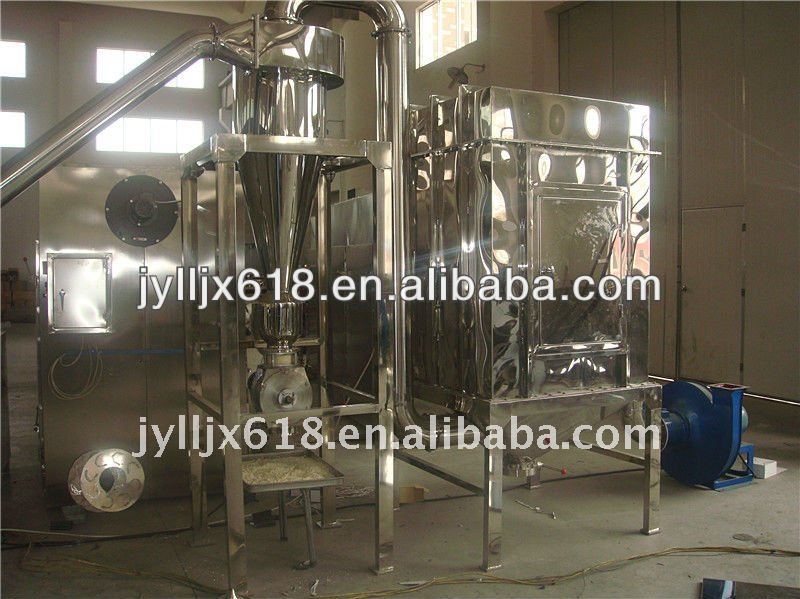

Model WFJ pulse dust absorption fine powder pulverizer

FOB Price:Price can be negotiated

Production Capacity:2 Set/Sets per Month

Payment Terms: US $12,000 - 48,500 / Set

Update Time:2014-09-20

Contact Supplier

Product Description

1.match water cooling system
2.non-sieve or mesh
3.pulse dust absorption system
4.high efficiency
5.IS09001 Certificate

Model WFJ-20-30-60 MIni-efficient pulverizer

Main Uses:

The machine is made up of main engine, auxility engine and electric-box, featuring winnowing without sieve or mesh, even granule size, continuous operation, etc. The machine reaches advanced world-lever and is widly used for material grinding in pharmaceutical, chemical foodstuff industries, etc.

Working Principle:

Materials are transported to smashing area via screw conveyor, then smashed by high-speed revolving blades.With the negative pressure, the materials are transported into cyclone Separator and ejected from air seal machinery.

Technical Parameters:

Type	WFJ-20	WFJ-30	WFJ-60
Production capacity(kg/h)	30-350	50-800	100-1200
Feed size(mm)	<10	<10	<10
Discharge(mm)	80-1000	80-1000	80-1000
Power(kw)	17.87	42.85	70.45
Main speed(r/min)	5500	3650	2900
Overall dimensions(mm)	4700x1250x2900	6640x1300x3960	7500x2300x4530
Weight(kg)	1300	2000	3500

The above is our technical data. We can also design and manufacture different varieties upon customer's

Place of Origin:	Jiangsu China (Mainland)	Brand Name:	Lingling	Model Number:	WFJ-20\30\60
Type:	grain Processing Equipment"> Grain Processing Equipment	After-sales Service Provided:	Engineers available to service machinery overseas	Power:	17.87-70.45kw
Feed Size:	<10mm	Material:	stainless steel

Company Profile

Name: Jiangyin Lingling Machinery Manufacturing Co., Ltd.

Main Products: Pulverizers,Screen machines,Mixing series,Dryers,Conveyers

Business Type: Manufacturer

Total Employees: 11 - 50 People

Established Year: 2007

Main Markets: Southeast Asia, Eastern Asia, South America, Mid East, Southern Europe

Address: No.3 Xiyuan road, changjing town jiangyin city

Jiangyin Lingling Machinery Manufacturing Co., Ltd. is located in the first foreign-trade town in the south of the Yangtze River Delta - Zhutang Town, with Shanghai in the east and Suzhou in the south, next to Shanghai-Nanjing Freeway which is famous for golden channel. So the transportation on land and water is very convenient.

Our company is specialized in pharmacy, chemicals, food and rubber smashing series products, including WCSJ-20 universal coarse crusher, WFJ series fine crusher, GFSJ series high-efficiency crusher, CXFJ-22 series super fine rubber crusher, ZS series rock screen, GHJ series V-type mixer, RXH series hot-air circulation oven and other related products.

Our company owns strong technical power and excellent products. Each product is made strictly according to GMP standard and reaches domestic advanced level. Other non-standard products are able to be made to order. These products are well sold all over the country, deeply loved by broad users.

We warmly welcome both domestic and foreign customers to order our products. more
