Multifunctional automatic chocolate bar carton packing machine,China EV price supplier

Multifunctional automatic chocolate bar carton packing machine

FOB Price:Price can be negotiated

Production Capacity:20 Set/Sets per Month

Payment Terms: US $30,000 - 90,000 / Set

Update Time:2014-09-28

Contact Supplier

Product Description

A-Automatic chocolate bar carton packing machine
B-servo driver
C-40-90 pcs/min
D-PLC controller

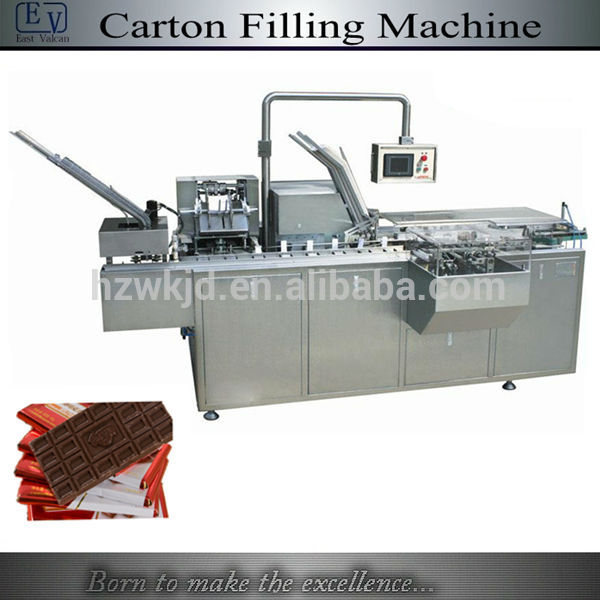

Multifunctional automatic chocolate bar carton packing machine

Product description:

The chocolate bar carton packing machine is a newly designed carton box packing machine with the advantages of small size, light weight, high efficiency, multifunctions, etc., m aximum speed can up to 90 pcs/min.

Application:

The chocolate bar carton packing machine is suitable for packing food, coffee bags, chocolate bars, cube sugar, biscuit, milk powder, detergent powder, bottle, piil blister, toothpaste, cosmetic, ointment, tissue, etc.

Characteristics:

1) PLC control , English and man-machine interface, operating easy and simple maintain.

2) Advanced photoelectric sensor tracking system and servo motor pull for precise bag width and position of film.

3) Automatically feeding, opening box, filling, sealing, cleaning, ect., with easy operation and reasonable strcture

4) The chocolate bar carton packing machine uses advanced photoelectric sensor tracking system to avoid empty box

5) Easy and fast adjustment of change over, No mould-change needed when changing

speficication; PLC automatically shows packing speed and quantity of finished products.

6) Smooth performance and low noise, perfect package appearance, sensible safety device and no pollution during production to get friendly working environment.

7) The chocolate bar carton packing machine can be equipped in the Bind production line with aluminum-plastic packing machine, pillow packing machine, bottle packing machine, filling machine, coding printer, ribbon printer, weighing machine, etc.

8) Using hot melt glue box packing machine or mechanical brush glue box packing machine according to clients’ requirement.

Main Technical parameters:

Model	ZH100
Name	Chocolate bar carton packing machine
Box packing range	60mm20mm8mm(min) 200mm100mm60mm(max)
Carton	250-450g/m 3
Packaging capacity	40-90 pcs/min
Power	1.5kw
power type	3-phase 4-wire 380V 50Hz
Device volume	≤80dB
Air consumptin	120-160 NL/min
Machine dimension	350015001600
Weight	1200kg

Configuration list:

No.	Name
1.	PLC
2.	PLC extended module
3.	Encoder
4.	Touch panel
5.	Transducer
6.	Photocell
7.	electrical machine
8.	Servo driver
9.	Dividing box
10.	Button
11.	Scram
12.	Optical fiber
13.	AC Contactor
14.	SMPS
15.	Vacuum generator
16.	Intermediate relay
17.	Proximity switch
18.	Air switch
19.	Housing

Specific items:

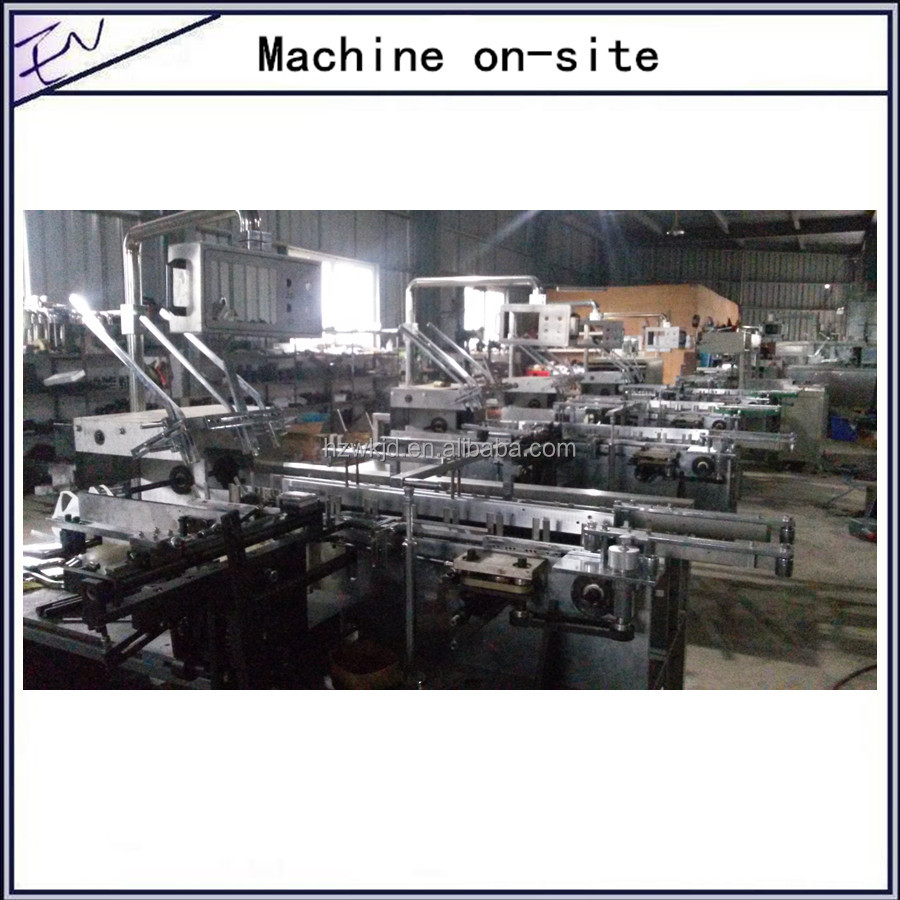

Mac hine on site:

Type:	Packaging Machine"> Multi-Function Packaging Machine	Condition:	New	Function:	Filling,Sealing,Boxing,Gluing,Forming
Application:	Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware,Textiles,Pharma,Carton, box, bottle	Packaging Type:	Cartons,Cans,Bottles,Stand-up Pouch,Bags,Pouch,Capsule,Case	Packaging Material:	Plastic,Paper,Metal
Automatic Grade:	Automatic	Driven Type:	Electric	Voltage:	customized
Power:	1.5kw	Place of Origin:	Zhejiang China (Mainland)	Brand Name:	EV
Model Number:	EVZH100	Dimension(LWH):	350015001600	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	Machine type:	Automatic chocolate bar carton packing machine	Packing type:	Carton box packing machine
Drive type:	Panasonice servo motor	PLC control, touch screen:	Mitsubishi	Device volume:	≤80dB
Packing speed:	40-90 pcs/min	Digital temperature controller:	Yamatake Japan	Material:	Stainless steel, carbon steel
Warranty period:	12 months
