NANJING SAIYI TECHNOLOGY SJ50 Series automatic extrusion machine of lollipop stick,China SAIYI price supplier

NANJING SAIYI TECHNOLOGY SJ50 Series automatic extrusion machine of lollipop stick

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month

Payment Terms: US $10,500 / Set

Update Time:2014-09-25

Contact Supplier

Product Description

1. Various applications: drinking straws, lollipop sticks, stirring stick, cotton buds sticks etc.

NANJING SAIYI TECHNOLOGY SJ50 Series automatic extrusion machine of lollipop stick

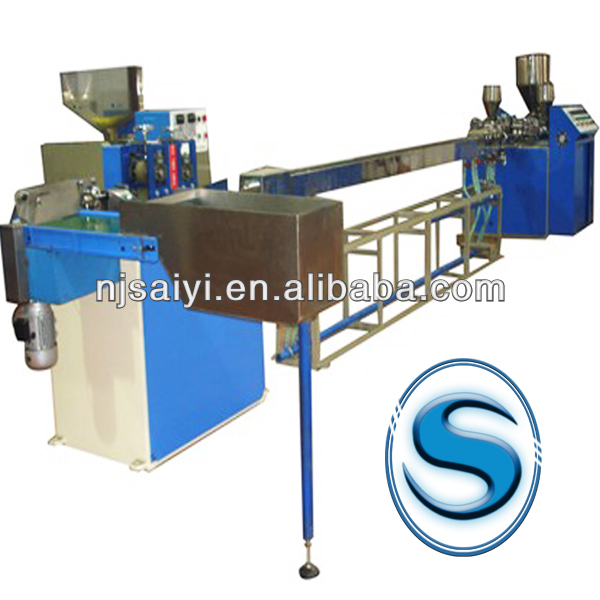

This Production Line is to extrude small-diameter pipes in single color, bicolor and tricolor. It is composed of extruder, 2 sets of standard mould, Vacuum calibration and cooling unit, hauling and rotary cutting device. Mainframe of the machine is of a compact, robust construction. The machine is fabricated by 38CrMoAlA with nitrogen treatment of a depth of 0.2 ~ 0.7mm to withstand continuous use under production conditions, important parts adopts superior alloy steel with nitrogen treatment. It is characterized by high efficiency, easy to operate and control, so it will lower your labor cost, improve efficiency thus to increase your profit.

CHARACTERISTICS:

1.This extrusion machine can be used for various applications:

Food industry: PP PE pipe, drinking straws, Lollipop sticks, Coffee stirring stick etc.

The other industry: bullpens refill, Cotton swab sticks, brake pipe and some small diameter pipes.

2.Cutting End : 90°/90° , 90°/45° , 90°/60° , 45°/45° , 60°/60°

3.A wide range of color: One, two, three color with spiral and straight stripes can choose from.

PARAMETERS

Name	NANJING SAIYI TECHNOLOGY SJ50 Series automatic lollipop sticks extruding machine
Model		SJ50	SJ50/25	SJ50/25/25
Main parts	Main parts are: extruder, cooling water tank, vacuum shaping equipment, air compressor, hauling cutting system, single color, bicolor or tricolor pipes can be realized.
Power supply	Main screw	380v ,3phase,50hz,7.5kw(VFD)
	Sub-screw	/	0.75kw	0.75×2kw
	Heating	7kw	9.56kw	12kw
	Hauling motor	0.75kw(VFD)
	Cutting motor	0.75kw(VFD)
	Total power	16.5kw	20kw	22.5kw
Temperature Controller		4sets	7sets	10sets
Electric control cabinet		1set	1set	1set
Automatic Counting Device		1set	1set	1set
Way of Hauling		By rubber roller
Way of cutting		Rotatory cutting
Cooling water tank	Usually 4.4m, can be adjusted up&down, right &left, forward&backward.
Option	Vacuum Pump (0.75kw)		Air compressor (2kw)
Specification of Pipe	Material	PP PE etc.
	Diameter	2mm~13mm
	Length	Customizable
	Speed	600~1000pcs/min
	Color	Single	Two	Three
	Straight or spiral strips	√	√	√
	Cutting End	90°/90° , 90°/45° , 90°/60° , 45°/45° , 60°/60
Machine dimension L×W×H		8m×1m×1.7mm	8m×1.5m×1.7m	8m×2m×1.7m
Weight of equipment		1.5T	1.7T	2T

Condition:	New	Application:	Pipe	Plastic Processed:	PP
Screw Design:	Single-screw	Automatic Grade:	fully automatic	Place of Origin:	China (Mainland)
Brand Name:	SAIYI	Model Number:	SJ50	Voltage:	380V
After-sales Service Provided:	Engineers available to service machinery overseas
