1.PLC touch screen control system
2.8 filling and sealing nozzle
3.full stainless steel
4.english language control system
Cangzhou Hongfa packing Machine technology research institute
Contact person : Mis Becky rong
MOB: 86 15226717885
TEL: 86 0317 4958887
Fax: 86 0317 4958886
Skype: becky.rong1
QQ: 1982144708
Address: Cangzhou city,hebei province,china
Specifications:
1. 8 nozzles,high speed max 3000bags/hour.(different size bag with different speed.)
2.The machine used for filling&packing any liquid such as Juice,Water,Ice lolly,Jelly,Yogurt,Soymilk, Cooking oil,Japan Tofu,Red wine,Tomato sauce,Detergent etc.

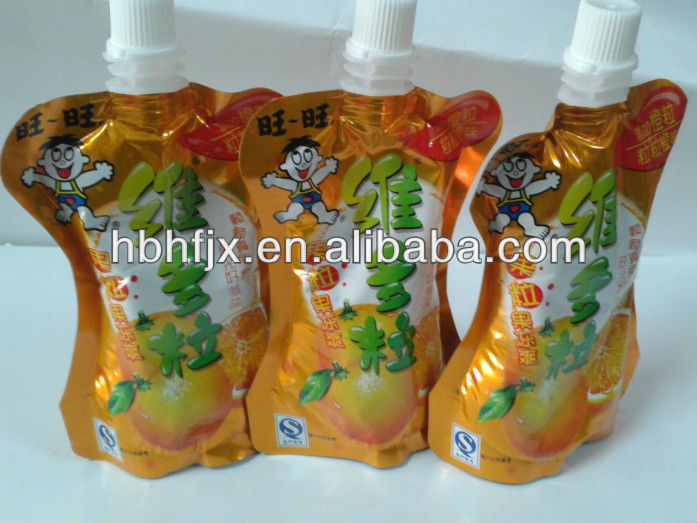

Packaging bag including:fruit shape bag,bottle shape bag,spout bag,straw bag(check the following bag picture).Also can filling stand up pouch without spout or with spout
3.Touch screen PLC computer control system, very easy operation.
4. Whole machine made by high quality 304 stainless steel,food grade stainless steel pipe.
5. Machine have import part and china part ,we can according to customer requirement
produce machine
6.This is our patent machine number is ZL 2011 2 0170003.1
| Name | Filling Machine |
| Material | Stainless steel |
| Type | HFPZD-B |
| State | new |
| Size | 1200*700*1550mm |
| Weight | 180kg |
| Capacity | 50-500ml/bag(can be special customized) |
| Efficiency | 2000-3500bags/hour(according to bag capacity) |
| Power | 1.2-1.6kw |
| Power supply | 220V 50Hz |
| Source | 0.3-0.5m³/min 0.8mpa |
| use | liquid food |
| packing type | plastic pouch with spout but not have cap |
| package | plywood case or wooden carton |
| Price | competitive |

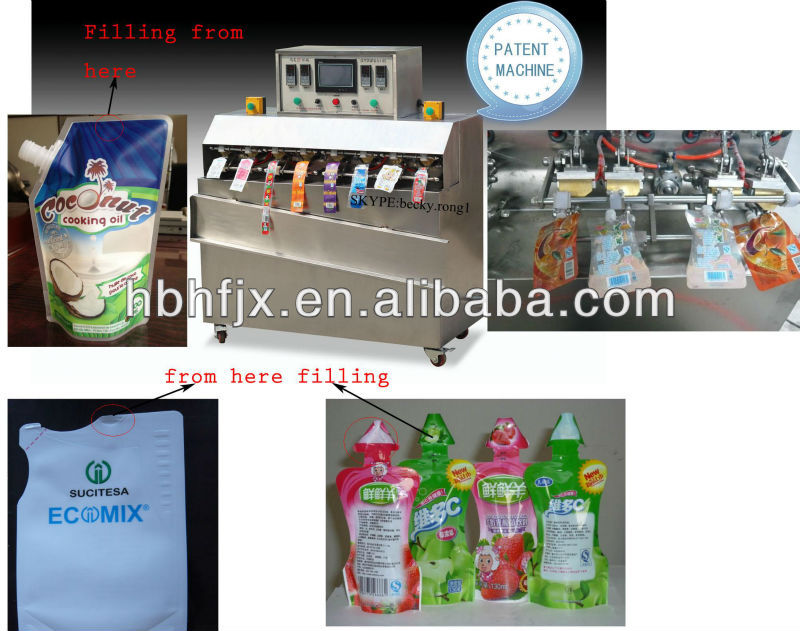

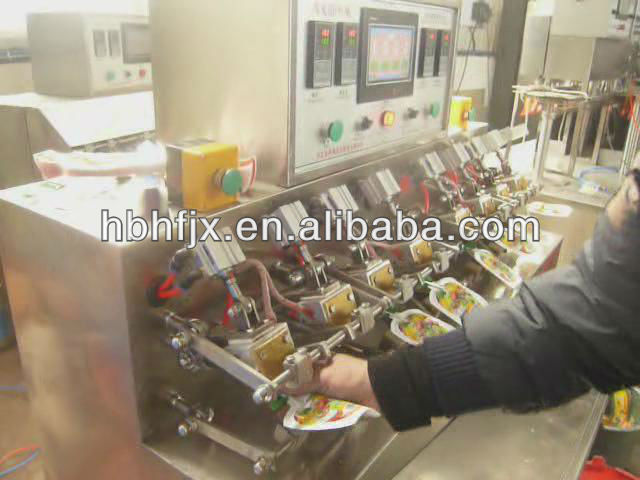

The pictures:
For filling same Packaging Machine
Continue type 8nozzle machine Rotation type 12 nozzle machine
speed 800-2600bags/hour speed:2000-5000bags/hour
HFPZD-A HFPZD-C
General type 4 nozzle machine 3nozzle no need air compressor
speed:800-1600bags/hour speed: 500-800bags/hour
HFPZD-D HFPZD-E

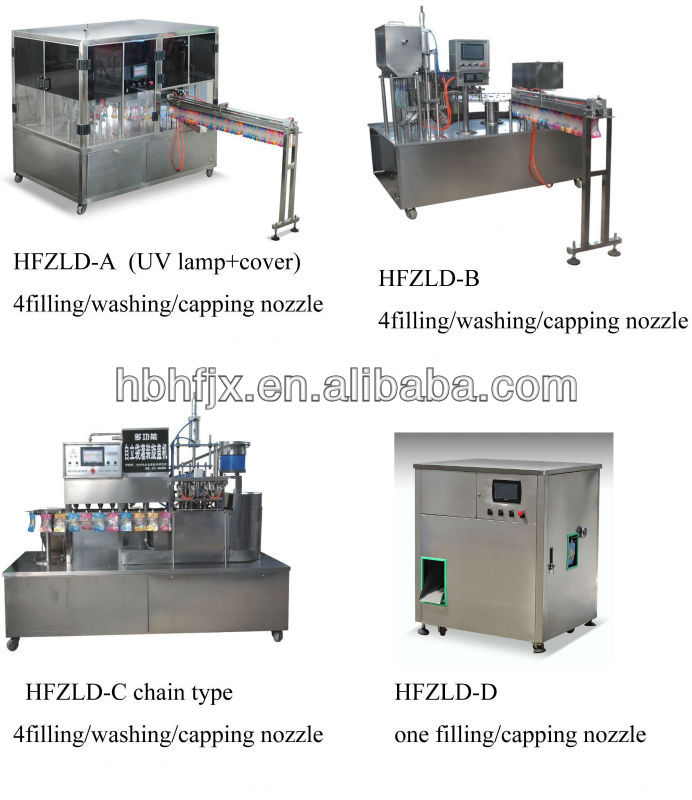

Stand up pouch packing machine(filling from spout,automatic filling and capping)
============================================================================================

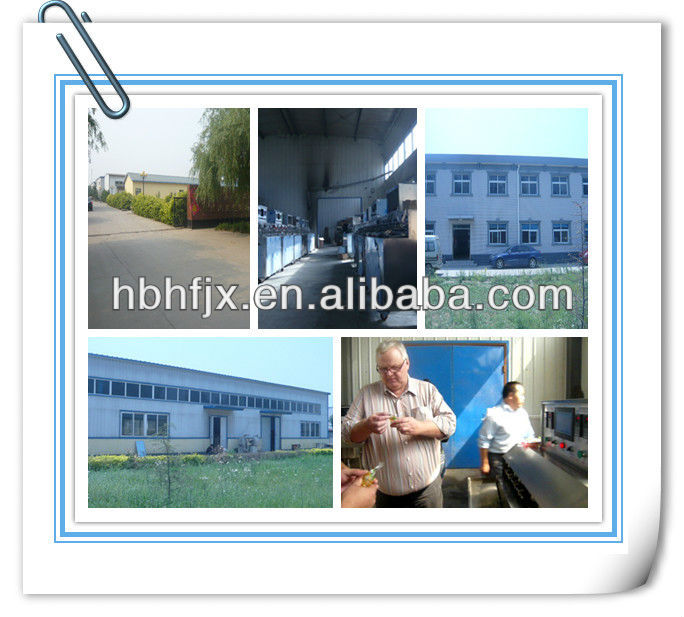

1.Factory introduction
Being a provincial technological enterprise specialized in packaging technology and food machinery research
(JKGZZ No. 013), Cangzhou Hongfa Institute of Packaging Technology of Hebei Province has made
pioneering development in the research of packaging machine and other food machinery, and has acquired
a number of national patents and scientific achievements such as“168” project, etc. The successful launch
of HF-YX automatic computer controlled photoelectric tracking liquid packaging machine has attracted a lot of attention from the industry of liquid packaging. It is highly praised by numerous manufacturers after use.
Other mechanical products developed by the institute include aseptic packaging machine, ice pop maker, multi-purpose filling, sealing capping machine, high speed shear emulsifying machine, aseptic brick machine,
liquid pillow filling machine, standing bag, special bag filling capping machine, etc. In addition, the institute
can provide customized products according to different needs.
“Hongfa” machinery has become a necessity for cold food, milk beverage, liquor, seasoning,
edible oil and liquid chemical companies, etc. The products have been sold in over 20 provinces
and cities at home and exported to Middle East, Europe, America, Russia and other regions and countries.
By adhering to the philosophy of faithfulness and integrity and taking R & D as the orientation, innovation as
the target, product as the base and customer as the priority, Hongfa has been strongly dedicated to serving
both old and new customers and creating more brilliance for your success.
2. Industry development
The company boasts an experienced and well-rounded design team which provides strong support for the company and long-term guarantee for product quality.
We are proud of our products and our leading high technology, reliable quality assurance and superior after-sale service which earn us the market and customer satisfaction. We are just different. We own strong technical
strength to serve you to the greatest satisfaction and bring you infinite possibilities!
Thanks for the support from our customers over the years. We are looking forward to your continued support.
We promise to provide high-quality product and service for you as before.
3. Corporate values
Core competitiveness determines the viability of an enterprise
Cangzhou Hongfa Institute of Packaging Technology advocates the creation
of values and the cultivation of sense of mission, responsibility, honor and accomplishment
Cangzhou Hongfa Institute of Packaging Technology insists on learning new
thinking in practice and steadfastly creating the overall executive force of enterprise
4. Our machine is the most popular products in the world
We have many agent in the world i hope you can become next one, we can help you
earn much more money and own your local market,i will do my best help you .
| Type: |
Filling Machine
|
Condition: |
New
|
Application: |
Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware,Apparel,Textiles
|
| Packaging Type: |
Stand-up Pouch,Bags,Pouch
|
Packaging Material: |
Plastic
|
Automatic Grade: |
Automatic
|
| Driven Type: |
Electric
|
Voltage: |
220v 50hz/60hz
|
Power: |
1kw
|
| Place of Origin: |
Hebei China (Mainland)
|
Brand Name: |
cangzhou hongfa
|
Model Number: |
HF-PZD-B
|
| Dimension(L*W*H): |
1200*700*1550mm
|
Weight: |
180kg
|
Certification: |
patent
|
| After-sales Service Provided: |
Overseas service center available
|
Material: |
stainless steel
|
|
|
|
|
|
|
|
