near shanghai Zhangjiagang 20l bottled water filling production line,China winmark price supplier

near shanghai Zhangjiagang 20l bottled water filling production line

FOB Price:Price can be negotiated

Production Capacity:500 Set/Sets per Year 20l bottled wate

Payment Terms: US $15,000 - 50,000 / Set

Update Time:2014-09-16

Contact Supplier

Product Description

20l bottled water filling Production Line
1.Production:100-2000b/h
2.Electrical Equipment:PLC
3.bottle: gallon bottle

20l bottled water filling production line

20l bottled water filling production line , in order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer, washing solution can be used circularly.

This line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy, also this line can automatically carry out barrel feeding, washing, sterilizing, filling, capping, counting and products discharging.

20l bottled water filling production line is a new kind of barreled water auto-producting line, which integrates mechanism, electricity and pneumatics technologies together.

Model	QGF-100	QGF-300	QGF-450	QGF-600	QGF-900
Filling heads	1	2	3	4	8
Volume(L)	18.9	18.9	18.9	18.9	18.9
Barrel size(mm)	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490
Capacity(B/n)	100-120	200-240	300-400	600	900
Gas pressure(mpa)	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Gas consumption(m ³ /min)	0.37	0.6	0.6	1.2	2.2
Motor power(Kw)	1.75	3.22	4.8	8.5	8.5
Rated voltage(V)	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Outline dimension(mm)	3790×650×1550	3550×800×1800 2800×1100×1800	3550×1200×1800 3800×1100×1800	3650×1500×1800 3800×1100×1800	2200×1860×2700
Weight(kg)	800	2800	4000	5500	7500

Auto Feeder and Washing for 1000BPH

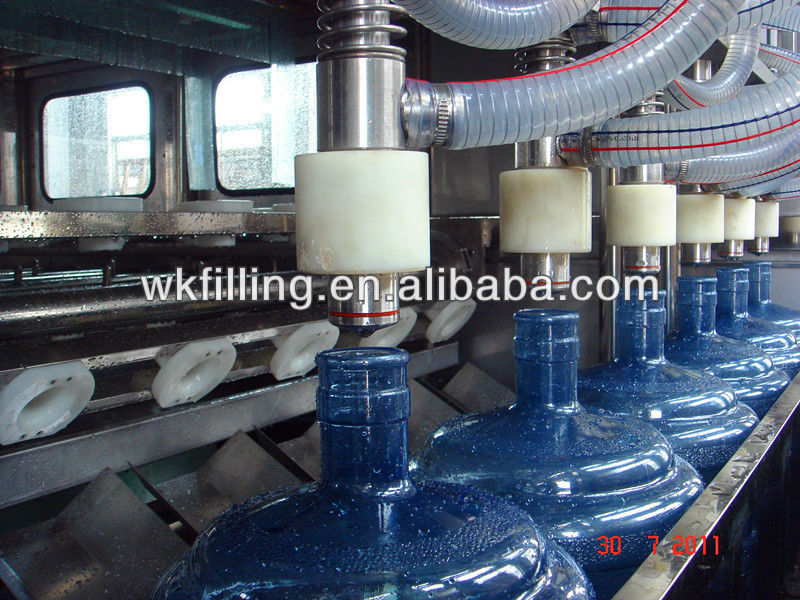

Filling part

Automatic cap loader

Light checking and shrink machine

Type:	Filling Machine"> Filling Machine	Condition:	New	Application:	Food,Beverage
Packaging Type:	Cans,Bottles,Barrel	Packaging Material:	Plastic,Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V-415V	Power:	By order
Place of Origin:	Jiangsu China (Mainland)	Brand Name:	winmark	Model Number:	QGF1200
Dimension(LWH):	By capacity	Weight:	By order	Certification:	CE ISO
After-sales Service Provided:	Engineers available to service machinery overseas	material:	sus304	Control:	PLC SIEMENS Mittisubishi
Touch screen:	WeinView Taiwan	Electronics:	Schneider OMRON	Pneumatic:	FESTO Air-Tac
function:	water filling machine	Factory location:	2 hours from shanghai
