Oxygen Permeation Analyzer,China GBPI price supplier

Product Description

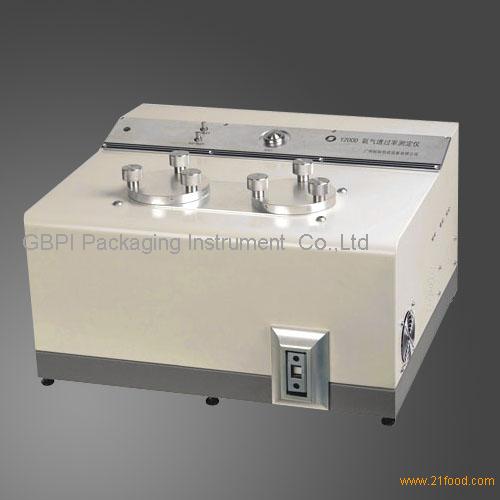

Computer controlled temperature and humidity simulate actual climatic conditions making the Y200D ideal for testing and researching both current and newly formulated packaging film materials. Calibration can utilize both standard gas and NIST traceable films for versatility of film to film comparison and reliability of analysis data. Our Y200D model is designed specifically for trace oxygen permeation analysis of packaging barrier films. The Y200D is both modular and extremely flexible.

Specifications
Measurement range: 0.02 to 16500 cm3/m2/day
Measuring precision: 0.001 cm3/m2/day
Temperature Control: 5-50 degree centigrade
Humidity Range: dry=0%RH,WET= 5-95%RH ,100%RH
Controlled RH precision: %RH
Supply pressure: 25-45 PSI regulated(oxygen & nitrogen)
Gas fitting: 40 cc/min.
Calibration of Gas: Yes
Calibration of Film: Yes
Gas leak protection: Yes
Automatic testing: Yes
Easy operation: Yes
Specimen size: Φ80mm, through an area of 50.24 cm2
Thickness: <1.27mm
Power Requirements: Voltage: 220V AC
Frequency: 50 to 60HZ
Dimension: 610*400*380 mm.
Weight: 46 Kg
Enclosure: Epoxy coated heavy gage steel
System requirements:
486 or 66MHz processor or greater
Windows 2000 or higher 16MB of RAM
256 color SVGA monitor
20MB hard disk space
