packing machines for feed pellets/corn starch packing machine,China Furui price supplier

packing machines for feed pellets/corn starch packing machine

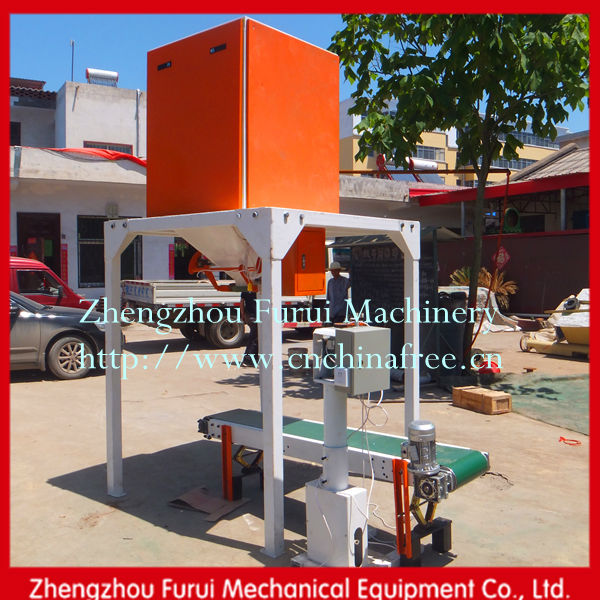

Computer weighing packing machine, including main engine, conveyor, sealing machine, and computer controler.

1.  Main  engine:

(1) Screen PLC control instrument

(2) automatic storage functions of each time production, day production, grand total production

(3) model: FR50

Weighing capacity : 5 -6bags /min                             weighing range : 5-50 kg/ bag

Weighing error : ±0.3%                                         control method : PL C

voltage : AC380V                                                  power:  2.2kw

pressure : 0.4---0.5MPa                                          Air consumption : 0.4Nm 3 /min

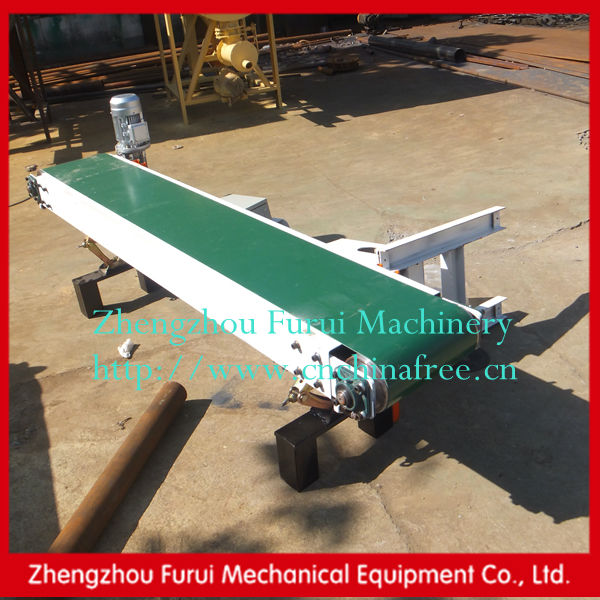

2.  Conveyor

lenght : 2.2m                                                         speed : 5—20m/min

Width : 400mm                                                      max delivery value : 15 bags / min

voltage : AC380V                                                     power  : 0.75kw

3.  Sewing machine

Model: FR 18                                                       max speed : 1700 times / min

  Needle lenght : 6.5—11mm                                   max  sewing  length: 8mm

Sewing type : d ouble-lock chain stitch                      sewing specification : 21S/5 , 20S/ , 30S/

Cotton line

Needle type : 80800type 200—250 #

voltage : 380V                                                      power  : 0.55kw

4.  Packing bag type( open bag)

PP woven bag

5.  Operation conditions

Operation times: 8000hours/year                          environment temperature : ~10—40°C
