Pallet wrapping machine
Advantage:
1. Adopting Programmable logic control reliable in performance, convenient in operation.
2. With pre-stretch carriage, pre-stretch rate up to 300%, film savings.
3. The surface lacquer used as the car,elegant appearance.
4. The colour and other requment coule be satisfied,such as the Video system,weight or label print system and so on.

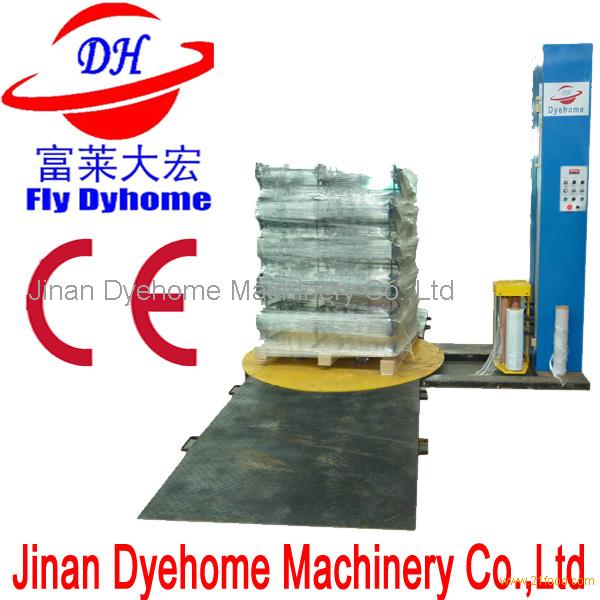

TP1650F-LAutomatic pallet wrapping machine
Automatic used stretch wrapping machines are used to wrap stretch film around a loaded pallet.
Film provides extra support while the products are being transported & storaged to protect them from tip, spill or from being damaged.
Additionally, wrapped loads can easily be separated and identified.
Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc.
Technical parameters
Packing Height: 2000mm
Turntable Diameter: 1650mm, Height: 85mm
Packing efficency 20-40loads/hour
Turntable speed 0-12rpm
Turntable loading(max) 2000kg
Film carriage system: Pre-stretch
Up-down frame Heavy duty double-chain carriage lift, calm and safty
Control system PLC controller
Machine weight 700kg
Machine dimension 2545mm*1650mm*2270mm
Power/voltage 0.75kw, AC220V/0.75kw
Machine Specifications could be met.
Control System:
PLC control
Photo-eye auto-height sensing pallet height
Separate top, bottom & up-down Wrap Counter options
Overwrap time is up to create an overwrap
Reinforce wrap times is set to better secure 2 loads placed on top of each other
Film Tension Control adjustment on the panel
Separate start, pause and emergency stop buttons
Power indicator;
Manual carriage up/down;
Variable Turntable Speed;
Carriage up/down speed control;
Manual/automatic exchangeable;
Turntable;
1650mm Diameter Structural steel plate;
85mm Height floor to top of turntable;
Turntable drive;
0-12rpm variable turntable speed by frequency changer
Position turntable alignment.
Soft start;
Film carriage;
Powered pre-stretch system up to 250% to min film consumption
Carriage door opens for effortless roll change and thread film
Film delivery variable speed by separate DC Drive Motor
Electronic film tension control adjustment on panel
Film dancer-bar with variable speed output
Film carriage Drive
Heavy duty double-chain carriage lift, calm and safety
Film carriage variable speed by frequency changer
Main components and electrical performance characteristics of the major components
PLC OMRAN
Inverters(0.4, 0.75) OMRAN
Relay OMRAN
Photoelectric switches OMRAN
Proximity Switches OMRAN
ATTENTION: Configuration changes can be requested.
| Wrapping size(L*W)
|
(500-1200)mm*(500-1200)mm
|
| Packing height
|
L type: (500-2000)mm
|
| H type: (500-2400)mm
|
|
| Y type: (500-higher than 2400)mm
|
|
| Packing efficiency
|
20-40 loads/hour
|
| Turntable speed
|
0-12rpm
|
| Turntable diameter
|
Diameter: 1650mm height: 85mm
|
| Turntable loading(max)
|
2000kg
|
| Up-down frame
|
Double-chain, Up-down speed variable
|
| Film carriage
|
Pre-stretch
|
| Control system
|
PLC
|
| Machine weight(max)
|
700kg
|
| Machine size
|
2650mm*1650mm*2400mm
|
| Packing size
|
2650mm*1650mm*700mm
|
| Electrics
|
Single-phase 220V/50Hz
|
| Power
|
Turntable: 0.75kw, film carriage: 0.3kw, up-down: 0.4kw
|
JiNan Dyehome Machinery Co., Ltd is a professional manufacturer specializing
in designing, manufacturing and marketing of packaging machines With years
of professional experience and continuous research and Innovation , we can
design many kinds of wrapping machines according to the customer's requirements.
With competitive price, high quality and sincere service,our products have won a
good reputation both at home and abroad.We have mastered advanced technology
and can provide whole terminal packing solutions for customers. On the basis of mutual benefit, we firmly insist on the principle of "credit and customers' satisfaction first". We have won the trust of clients from home and abroad and we are also looking forward to wider cooperation with new customers.
|
|
|
|
|
|
|
|
|
|
|
|
