Paper Labeling Machine,China Blissum price supplier

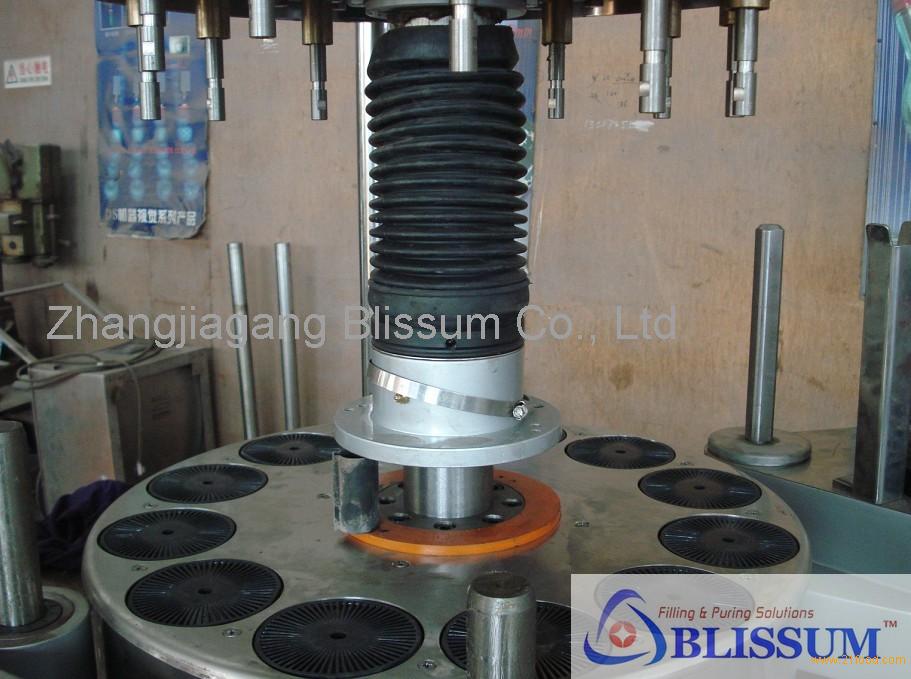

The machine, known as single label labeling machine, is a rotary labeling machine designed to Paste body labels. It uses a motor adopting a variable frequency speed regulating system and a worm reduction gearbox as the main drive, and is provided with pneumatic and electric control systems. Therefore, stepless speed change function is available for the machine. The speed is adjusted based on the number of fed bottles so that it corresponds to output change. Meanwhile, safe operation of the machine can be ensured.

The operating system is provided in the operating box in the front of the machine. For layout and wiring numbers of the electrical operation box elements, refer to the Electrical Control Wiring Diagram. For layout of the electrical control elements, refer to the Automatic Control Principle Electrical Wiring Diagram. The main circuit of the machine uses 380V three-phase AC power supply. The control circuit uses 48V power supply, and the signal circuit uses 6.3V power supply. Both the 48V and 6.3V AC voltages are supplied by a control transformer.

In order to ensure labeling quality, the specification and quality of the labeling glue, label paper and bottles should conform to relevant national standards to meet the requirements of high-speed production.

Our company provides technical services in accordance with the user's requirements for the bottle size and the label paper shape to meet the user's needs.
