passion fruit juice machine/natural fruit juice production line,China GENYOND price supplier

passion fruit juice machine/natural fruit juice production line
FOB Price:Price can be negotiated
Production Capacity:2 Set/Sets per Month
Payment Terms: US $1 - 2 / Set
Update Time:2024-12-09
Product Description

1.FRUIT JUICE plant
2.CE GAP ISO approved
3.from Water Treatment to package
4.PLC control
5.high efficiency

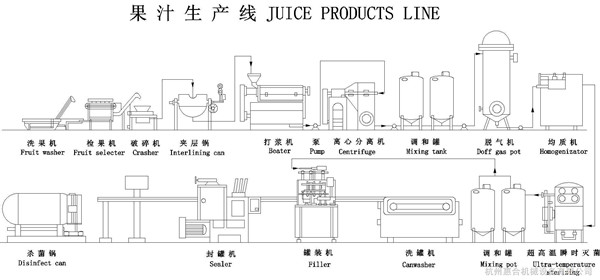

1.fresh fruit juice processing plant /line



 We provide turn key project for beverage filling line, which it is juice / pulp, milk, drinking water, juice and

 others.

  Part I: Water treatment system



Raw water -> raw water tank -> raw water high pressure pump->multi- medium filter (Quartz sand filter) -> active carbon filter-> sodium ion exchanger-> water pump-> precision filter -> RO device ->ozone device ->pure water tank

Remark: Supply water for juice blending tank and washing-filling-capping units





passion fruit juice machine/natural fruit juice production line

passion fruit juice machine/natural fruit juice production line

2. general instruction

Juice Washing Station:
-Rotative rinsing turret one treatment, fixed nozzles, with grippers.
-The grippers take the bottles from the inlet  star-wheel  while they are still driven by the  star-wheel , thus guaranteeing a safe grip.
-After the gripping, the bottle is turned upside down and  cantred  above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.



Juice Filling Station:

-The  star- wheels  drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
-Product bowl is to reduce the loss of heat.
-If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.



Juice Capping Station:

-Rotative capping  turret , suitable to the application of screw plastic caps on PET bottles
-The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating

 the capping heads.

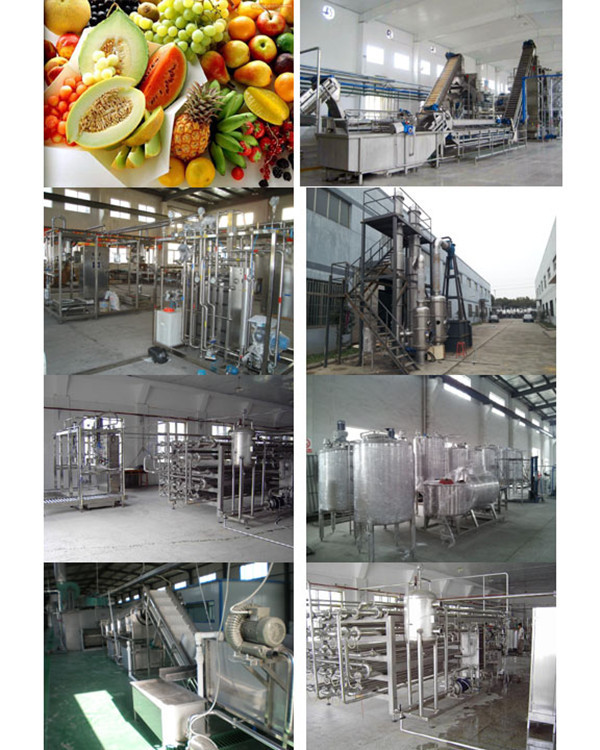

3. our machines and the final productions

passion fruit juice machine/natural fruit juice production line

       passion fruit juice machine/natural fruit juice production line



  1.we have powerful productivity. because we have a professional designers and

    operators  and we possess a independent factory







2.we will offer. you superior service and competitive price. we have done many trade

    with foreigners,so we have rich experience in export that made us professional.







3. we are sincerely want to establish business relationship with you on the basis of

   mutual benefit.we hope our physical plant  can offer a good purchase Platform



passion fruit juice machine/natural fruit juice production line

Condition:
New
Place of Origin:
Shanghai China (Mainland)
Brand Name:
GENYOND
Model Number:
GY-S200
Type:
squeezing
Voltage:
380/440v
Power(W):
15.2kw
Weight:
5 tons
Dimension(L*W*H):
13.8*2.7*3.5m
Certification:
ISO 9001
Warranty:
12 monthes
After-sales Service Provided:
Engineers available to service machinery overseas
grade:
food grade
Other Products
Company Profile
Name: Shanghai Genyond Technology Co., Ltd.
Main Products: food machine,vegetable fruit machine,dairy processing machine,fruit juice machine,fruit chips machine
Business Type: Trading Company
Total Employees: 201 - 300 People
Established Year: 2013
Main Markets: Africa, Mid East, South America, Southeast Asia, South Asia
Address: No. 1328, Hengnan Road, Pujiang Town, Minhang District
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
