Pasteurizer,China price supplier

Pasteurizer

FOB Price:Price can be negotiated

Update Time:2021-06-24

Contact Supplier

Product Description

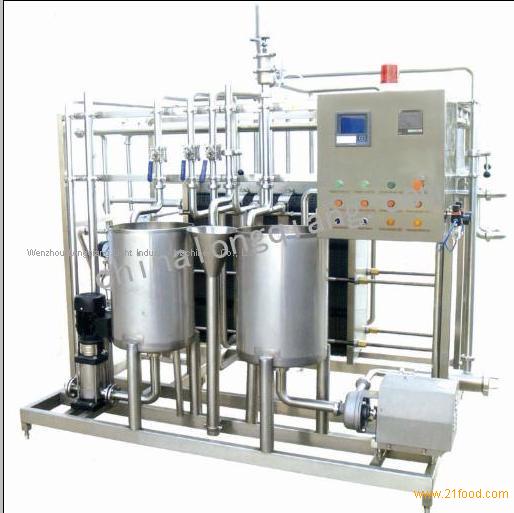

PHE type pasteurizer

Name	unit	BR-HTST-0.5B	BR-HTST-1B	BR-HTST-2B	BR-HTST-3B	BR-HTST-4B	BR-HTST-5B	BR-HTST-10B
Production capacity	t/h	0.5	1	2	3	4	5	10
Heat-exchanging area	?O	???? 5	8	14.5	22	28.7	35.8	71.6
Inlet temperature of materials	??	5	5	5	5	5	5	5
Oulet temperature of material	??	5	5	5	5	5	5	5
sterilization temperature	??	85-95	85-95	85-95	85-95	85-95	85-95	85-95
Holding time	S	25	25	25	25	25	25	25
Inlet temperature of chilled water	??	1	1	1	1	1	1	1
Magnification of chilled water	_	3	3	3	3	3	3	3
Magnification of hot water	_	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Inlet pressure of steam	MPa	≈0.8	≈0.8	≈0.8	≈0.8	≈0.8	≈0.8	≈0.8
Interface size	mm	25	32	38	38	51	51	63.5
Power	kw	2	3	4	5	6	6	10
Weight	kg	750	920	980	1080	1160	1220	1650
External dimensions(L×w×h)	mm	1200×1200×1800	1500×1500×2000	2200×2000×2500	2400×2000×2500	2500×2000×2500	2600×2000×2500

Applicable to meet the process requirements needed in the heating, sterilization, temperature-holding and cooling of heat-sensitive liquid including fresh milk,juice beverage and liquor.

The equipment is characterized by high heat recovery (rate of recovery can be as high as 90% ),low energy consumption, compact structure, simple operation, easy maintenance and etc.

Production capacity:0.5 20t/h;

Sterilization temperature:85 90

Holding time:15 30s

Control modes:Manual, semi-automatic, automatic

Major configuration:Designated pump for material, balance barrel,hot water system ,temperature-controlling and recording instrument, electrical control system and etc

Other Products

Lateral spray retort

Pasteurizer

Company Profile

Name: Wenzhou Longqiang Light Industry Machinery Co., Ltd

Main Products: Food Processing machine,Pasteurizer,Retort sterilizer,Mixing tank,process tank,pressure vessel,Water powder mixer,emusifier tank

Business Type: Manufacture & Trade & Service

Total Employees: < 20

Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,

Address: No. 98 Central west road, Shacheng, Longwan

==========================================

We are a customized Dairy/food/Bevery/Biopharmaceutical processing Machines Manufacturer.

Company Profile:

Founded in 1984, longqiang Enterprise is one of the earliest manufacturer in China. Now we have two companies, Wenzhou Longqiang Dairy Machinery Factory, and Wenzhou Longqiang Light Industry Machinery Co., Ltd.

With a group of experienced employees, we can provide you with consultation, project designing, manufacturing, installation, commissioning, training. We also have China Steel pressure vessel Fabrication license.

As an eligible manufacturer with ISO9001：2008, we have successfully exported our products to Southeast Asian and South America, Africa, North America, South America.

Longqiang Production lines :

1) Dairy Processing line to produce Milk, Yougurt, condensed milk, Milk powder, ice cream, etc

2) Beverage processing line to produce vegetable juice, fruit juice, tea drink, soft drink, soymilk, rice milk, water , coconut water, coconut milk,flavored milk drink etc

3) Food processing line to produce tomato sauce, egg powder, canned fish, steam rice, instant food, sugar candy, etc.

4) Biotech processing line to produce herb extracts, animal extracts

Longqiang Single machines:

Pasteurizer: Tubular Pasteurizer, plate pasteurizer, coil pasteurizer;

Retort: Layteral spray retort sterilizer, full water retort, rotary retort, shower retort, steam retort (Autoclave);

Stainless steel tanks:storage tank, cooling/heating tank, insulated tank, milk cooling tank,cheese vat, Fermenter, reactor, extractor, vacuum cooker, deodorizer, mixer, Steam Kettle, steam distillator, high shear mixing tank;

Evaporator: outer forced circulating evaporator ( one effect, two effect, three effect), fall film evaporator, climbing film evaporator, coil evaporator, alcohol recovery tower,

Filter: water treatment system, filter press, bag filter, kieselguhr filter, active carbon filter, micro filter, membrane filter;

CIP system: small compact CIP system, Three tanks CIP system, Four Tanks CIP system;

Sanitary Pump: Centrifugal Pump, Lobe Pump, self priming pump, high speed mixer, water powder mixer, inline mixing system
