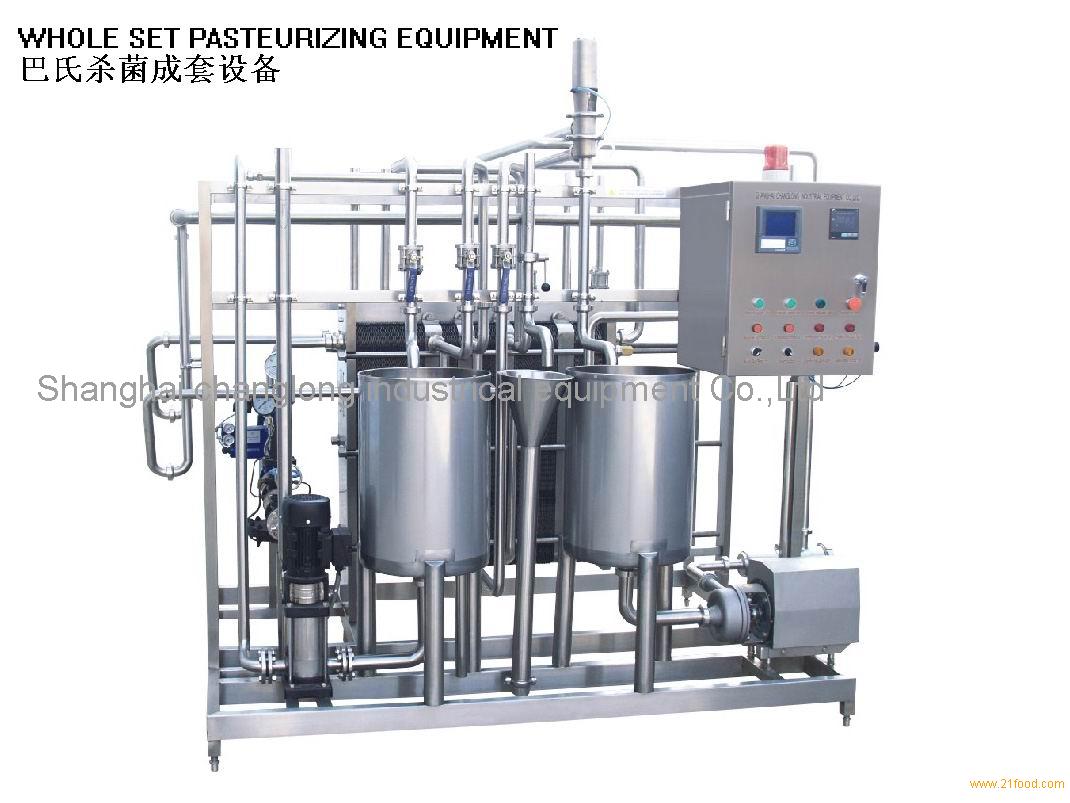

FRESH MILK AND YOGHOURT TWO-PURPOSE PLATE TYPE WHOLE SET STERILIZING EQUIPMENT
The fresh milk and yoghoutr two-purpose plate type whole set sterilizing equipment is specially used for pasteurization of fresh milk and yoghourt. The plates and stainless steel pipes are made of high quality SUS304 stainless steel. The temperature of material inlet is
The equipment consists of the followings:
A. Plate type heat exchanger E.Material transporting pump
B. Material balancing tank F.Hot water generator
C. Hot water balancing tank G.Distribution cabinet
D. Hot water pump of inlet H.Temperature holding tank, stainless steel pipe,valve etc.
技术参数TECHNICAL PARAMETER
| MODEL AND SPECIFICATION
|
CAPACITY
|
STEAM CONSUMPTION
|
STEAM PRESSURE
|
COOLING WATER FLOW RATE
|
ICE WATER FLOW RATE
|
POWER
|
OUTLINE DIMENSION
|
WEIGHT
|
PIPE DIAMETERS（ф）
|
||
| t/h
|
kg/h
|
bar
|
Kca/h
|
t/h
|
kw
|
l*w*h
|
kg
|
MATERIAL
|
STEAM
|
MEDIUM
|
|
| BR16-PUT-SN-1t
|
1
|
40/76
|
4.0
|
20，000
|
3
|
3.0
|
1.6*1.4*1.8
|
730
|
32
|
DN25
|
32
|
| BR26-PUT-SN-2t
|
2
|
80/152
|
4.0
|
40，000
|
6
|
4
|
1.6*1.4*1.8
|
910
|
32
|
DN25
|
32
|
| BR26-PUT-SN-3t
|
3
|
120/228
|
4.0
|
60，000
|
9
|
4
|
1.8*1.6*2.0
|
940
|
38
|
DN25
|
38
|
| BR26-PUT-SN-4t
|
4
|
160/304
|
4.0
|
80，000
|
12
|
6
|
2.0*1.6*2.0
|
970
|
38
|
DN32
|
51
|
| BR26-PUT-SN-5t
|
5
|
200/380
|
4.0
|
100，000
|
15
|
6
|
2.2*1.6*2.0
|
1030
|
51
|
DN32
|
51
|
|
Established in 1996,Shanghai Changlong Lndustrial Equipment Co.,Ltd. is an enterprise specialized in designing and researching various series of plate type(tubular) heatexchangers,plate type (tubular) whole set sterilizer units, ice cream shole set equipment, concentrators,degassing units,tanks and vessels etc,.providing achain of services including design,manufacturing,installation,commissioning and training etc.for the equipment and projects.Thanks to its richexperience in the production of heat exchangers and sterilizers,the company has become a leader in the industry of heatexchangers and sterilizers.The products are widely applied indairy, fruit beverage,brewage,chemical industry,electricpower and agriculture etc.Industries. Shanghai Changlong Industrial Equipment Co.,Ltd.has many designers specialized in the application of heat exchangers and sterilizers,invites experienced experts from dairy industry as technical consultants and employs professiona engineers to design the series units, so as to guarantee safe and reliabgle operation of the equipement. The feeding pump automatic control device of the sterilizer,the nozzle device of the degasser and the heat exchange stheet designed by the company have been granted nationalpatents.The registered trademarks approved by State Administration for Industry & Commerce have been applied in 45 industries,and under the approval of China Council for the Promotion of International Trade,they have been success fully registered in Russia and Japan etc. Countries. Changlong products have passed the inspection by National Quality Supervision and Inspection Center,and the product quality is guaranteed due to strict implementation of ISO9001:2000 international quality management system.Some products have been awarded Technical Results Transformation Prize fo Shanghai and New Product PLan Prize of Shanghai.Now Changlong Enterprise has become a high-tech enterprise. Changlong products not only enjoy high reputation in the country,but also have been exported to Germany,Japan,Australia,Russia,Southeast Asia and Mid East etc.countries and areas.It has also established Australia Changlong Company in Australia,Which has made it more convenient and prompt to push domestic products to the world. |
