1. carbonated drink Production Line
2. CSD bottling factory
3. full-auto 3 in 1 monoblock
4. PET bottle, glass..

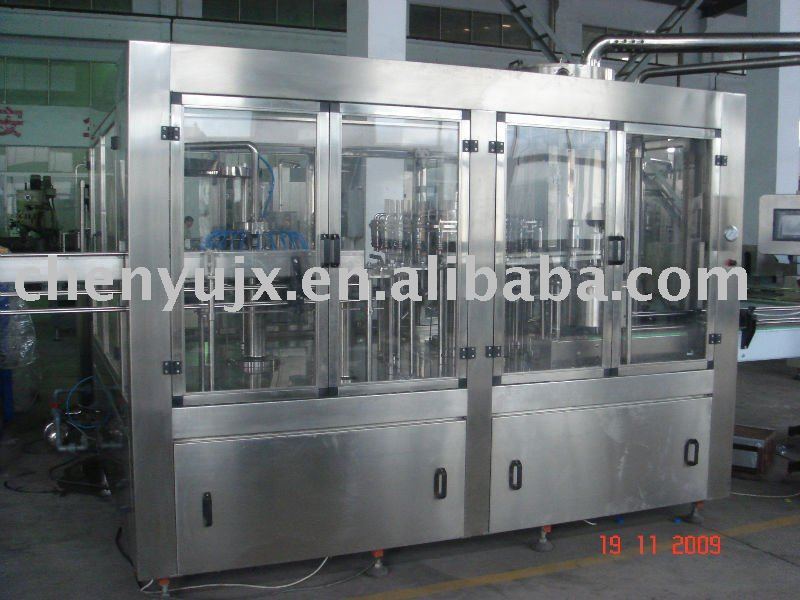

carbonated drink production line, bottle filling machine, CSD bottling factory
it is used for filling carbonated drink in PET bottles or glass bottles. we can supply the whole line.
Characteristics:
1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.
2. It is very convenient to change diverse sizes of bottles by means of advanced bottleneck clamping & bottle suspending technology.
3. Advanced programmable PLC is equipped to control the main machine.
4. Working speed can be adjustedby frequency conversion device.
5. Main electronic components are all from famousinternational enterprises, like Siemens and Mitsubishi.
Main Technical Specifications
|
Model:
|
DCGF18-18-6
|
DCGF24-24-8
|
DCGF32-32-12
|
DCGF40-40-12
|
||
|
Production Capacity:500ml
|
5000
|
8000
|
12000
|
16000
|
||
|
Suitable Bottle Standard:
|
round or square shaped bottle.
|
|||||
|
Polyester Bottle Standard: (mm)
|
Bottle Diameter:50-110 (Height):150-340mm
|
|||||
|
Suitable Cap Standard:
|
Plastic Screw Cap
|
|||||
|
Filling Precision:
|
±5mm
|
|||||
|
Filling Pressure:(Mpa)
|
0.15-0.35
|
0.15-0.35
|
0.15-0.35
|
0.15-0.35
|
||
|
Filling Pressure:(Mpa)
|
0.2-0.25
|
0.2-0.25
|
0.2-0.25
|
0.2-0.25
|
||
|
Installed Capacity:(L)
|
3.5
|
4
|
6
|
8
|
||
|
Overall Size:(mm)
|
2450×1800 ×2350
|
2780×2200
×2350 |
3600×2650
×2350 |
3800×2950
×2400 |
||
|
Total Weight: (kg)
|
3500
|
4500
|
5500
|
6500
|
||
| Product Type: Carbonated drinks | Primary Ingredient: Carbonate | Flavor: Soda |
| Feature: Normal | Additives: 0 | Brix (%): 0 |
| Color: 0 | Certification: ISO | Packaging: Bottle |
| Volume (L): 0.5 | material: SUS304 |
