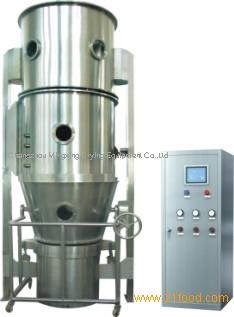

PGL-C Spray Drying Granulator (Fluid Bed)

FOB Price:Price can be negotiated

Payment Terms: T/T, L/C, D/P, D/A

Update Time:2021-06-14

Contact Supplier

Product Description

Features

Integrate spraying, drying fluid granulating in one body to realize granulating from liquid in one step.

Using the process of spraying, it is particularly suitable for micro auxiliary raw materials and heat sensitive raw materials. Its efficiency is 1-2 times that FL boiling granulating machine.

The final moisture of some products can reach 0.1%. It is equipped with powder returning device. The rate of granule forming is more than 95% with 0.2-2mm of diameter.

The improved inner Roller multi-flow atomizer can treat the liquid extract with 1.3g/cm3 of gravity.

Application

Pharmaceutical industry: tablet, capsule granule, granule of Chinese medicine with on or low sugar

Foodstuff; cocoa, coffee, milk powder, juice of granule, flavoring and so on.

Other industries: pesticides, feed, chemical fertilizer, pigment, dyestuff and so on.

Working principle

Technical Parameter

Item Unit Spec			PGL-3B	PGL-5B	PGL-10B	PGL-20B	PGL-30B	PGL-80B	PGL-120B
Liquid extract	min	kg/h	2	4	5	10	20	40	55
Liquid extract	max	kg/h	4	6	15	30	40	100	140
Fluidization capacity	min	kg/batch	2	6	10	30	60	100	150
Fluidization capacity	max.	Kg/batch	6	15	30	80	160	250	450
Specific gravity of the liquid		kg/L	≤ 1.30
Volume of material vessel		L	26	50	220	420	620	980	1600
Diameter of vessel		mm	400	550	770	1000	1200	1400	1600
Power of suction fan		kw	4.0	5.5	7.5	15	22	30	37
Power of auxiliary fan		kw	0.35	0.75	0.75	1.20	2.20	2.20	4
Steam	consumption	kg/h	40	70	99	210	300	366	465
Steam	Pressure	MPa	0.4 0.6
Power electric Heater		kw	9	15	21	25.5	51.5	60	75
Compressed air	consumption	m ³ /min	0.9	0.9	0.9	0.9	1.1	1.3	1.8
Compressed air	Pressure	MPa	0.2 0.6
Operation temperature			automatically regulated from indoor temperature to 130
Water content of product		%	≤0.5% (depends on the material)
Rate of product collection		%	≥ 99%
Noise level of machine		dB	≤ 70
Dimension of main body	φ	mm	400	550	770	1000	1200	1400	1600
	H ₁	mm	940	1050	1070	1180	1620	1620	1690
	H ₂	mm	2100	2400	2680	3150	3630	4120	5050
	H ₃	mm	2450	2750	3020	3700	4100	4770	5800
	B	mm	740	890	1110	1420	1600	1820	2100
