pillow bag flow wrap machine for chocolate bars,seaweed,China Soonk price supplier

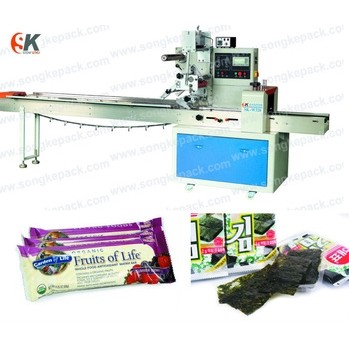

pillow bag flow wrap machine for chocolate bars,seaweed

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month

Payment Terms: US $6,500 - 7,500 / Set

Update Time:2014-09-28

Contact Supplier

Product Description

1.film width:max 320mm
2.low maintenance
3.easy to learn and operate
4.good quality and nice price
5.one year warranty

Full Automatic Pillow/Horizontal Packaging Machine

Applications:

food	cream crackers,biscuits,chocolate bars,rice cakes,pies,bread,instant noodles,moon-cakes,egg-rolls,mini cakes,ice cream,vegetable,fruit,cakes,bicuits,dates,bakery,candy and so on.
daily necessities	brush,one-off cups,spoon,knife,one-off wet paper,tissue,pen,erasers,tool,hardware,accessories,books,stationery,nappy,toys,soap,shaver,hardwares,accessories,screws,nuts,washer and so on.

Features:

1.Controlled by double transducer, flexible bag length cutting,operator needn't to adjust from time to time, saving time and film.

2.Human-machine interface, quick and convenient parameter setting.

3.Fault self-diagnosis function, failure can be clear at a glance.

4.High sensitivity optical electric color mark tracking,digital input cut position.

5.Stopping the machine in selected position, no sticking to the knife and no waste of Packing film.

Specificates:

Model	SK-W320B	SK-W320D
Packing Speed	40-230bag/min
Bag Length	65-190mm or 120-280mm	90-220mm or 150-330mm
Bag Width	50-160mm
Product Height	Max 45mm	Max 55mm
Packing Material	OPP.PE.PVC.OPP/CPP.PT/PE.KOP/CPP.ALU-FOIL
Dimensions	(L)3770x(W)720x(H)1450mm
Power	220V,50/60HZ,2.6KW
Machine Weight	450kg

Main Parts Allocation Table:

Name	Country	Brand
PLC	Japan	Panasonic
Inverter	Japan	Panasonic
Close to Switch	Japan	Omron
Switch Button	Germany	Schneider
Terminals	China	Wade Miller
Display Screen	China	HITECH
Solid State Relay	Germany	Schneider
Intermediate Relay	Germany	Schneider

Optional Function:

1. Air flushing system

2. Air exhaust system

3. Nitrogen gas flushing

4. Hole punch device

5. Tear notch device

5. Link bag device

6. Gusset bag

7. Date printer

Kindly reminder:

Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.

1. Product details

2. Bag width,bag length

3. Bag shape

4. Packing film material

5. Machine frame

Trading term:

1.Payment term:T/T,30% deposit,70% balance before loading.

2.Delivery date:35 working days after deposit.

3.Packing details:Inside is wrapped with protect PE film,outside is ply-wooden case.

Our Clients:

CE Certification:

Type:	Multi-Function Packaging Machine	Condition:	New	Function:	Filling,Sealing,Slitting
Application:	Food,Medical,Machinery & Hardware	Packaging Type:	Stand-up Pouch,Bags,Film,Pouch	Packaging Material:	Plastic
Automatic Grade:	Automatic	Driven Type:	Electric	Voltage:	220V
Power:	2.6KW	Place of Origin:	Guangdong China (Mainland)	Brand Name:	Soonk
Model Number:	SK-W320	Dimension(LWH):	3770X720X1450	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	Machine body:	carbon steel	Packing Speed:	depend on putting speed and bag length
Max product height:	70 mm	Packing Feature:	40-230bags/min(Put material by hand, tightness packaging)	bag shape:	pillow bag
optional bag shape 1:	gusset bag	optional bag shape 2:	linking bag	film material:	laminate film
Packing film thickness:	0.025-0.06mm
