pipe sterilizing machine for Juice
1. PLC controller, touch screen operating
2.1-20 ton/hour
3.for milk,juice,liquid food
pipe sterilizing machine for juice milk
*Pasteurizing system,sterilizing temperature is within 85-90 °c
*High temperature sterilizing system,sterilizing temperature is within 117-125°c
*Ultra high temperature sterilizing system:sterilizing temperature is within 137-140°c
* Capacity of the tubular sterilizing system: 1 -20ton/hour.
Description of pipe sterilizing machine for juice milk :
1. Usage: Pipe sterilizer can take hot process on the dairy production, liquid foods beverage, concentrate jam, biology, medicine etc. sterilizer of other model.
2. Main structure: Material tanks, sterilizer tank, material pump, exHeater, hot water cross occur, controller etc.
3. Control system: PLC controller, touch screen operating, frequency conversion timing, PID temperature controller.
4.Working principle: pre-sterilizing, sterilizing for the pipe which material will touch, use the hot water cycle in the pipe, more than 20 min, then lower the pipe temp., starting sterilizing for the material. The material which had disposal to the material tank, use the pump sending to pipe heat exchanger. Then put the material into heater pipe and sterilizing according to require time, and after sterilizing to the keeping pipe, then into the cooling pipe and sending to the Filling Machine .
Main technical parameter of pipe sterilizing machine for juice milk :
| Model |
Capacity (t/h) |
Steam consumption (kg/h) |
Steam pressure (kg) |
Power (kw) |
Dimensions (m) |
Weight (kg) |
Diameter (mm) |
||
| Products |
Steam |
Medium |
|||||||
| UHT-1 |
1 |
120 |
6.0 |
2.8 |
3.3×1.8×2.0 |
1680 |
25 |
DN25 |
25 |
| UHT-2 |
2 |
240 |
6.0 |
3 |
3.5×1.8×2.0 |
1780 |
25 |
DN25 |
25 |
| UHT-3 |
3 |
360 |
6.0 |
3.7 |
3.5×1.8×2.0 |
1900 |
38 |
DN32 |
38 |
| UHT-4 |
4 |
480 |
6.0 |
3.7 |
3.5×1.8×2.0 |
2060 |
38 |
DN40 |
38 |
| UHT-5 |
5 |
600 |
6.0 |
3.7 |
3.5×1.8×2.0 |
2200 |
38 |
DN40 |
38 |
| UHT-6 |
6 |
720 |
6.0 |
3.7 |
3.5×1.8×2.0 |
2360 |
51 |
DN50 |
51 |
| UHT-8 |
8 |
960 |
6.0 |
4.4 |
3.5×2.0×2.2 |
2520 |
51 |
DN50 |
51 |
| UHT-10 |
10 |
1200 |
6.0 |
7 |
3.5×2.0×2.2 |
2780 |
51 |
DN60 |
51 |
| UHT-15 |
15 |
1800 |
6.0 |
8 |
3.5×2.0×2.2 |
3020 |
63 |
DN65 |
63 |
| UHT-20 |
20 |
2400 |
6.0 |
11 |
3.5×2.0×2.2 |
3300 |
63 |
DN80 |
63 |

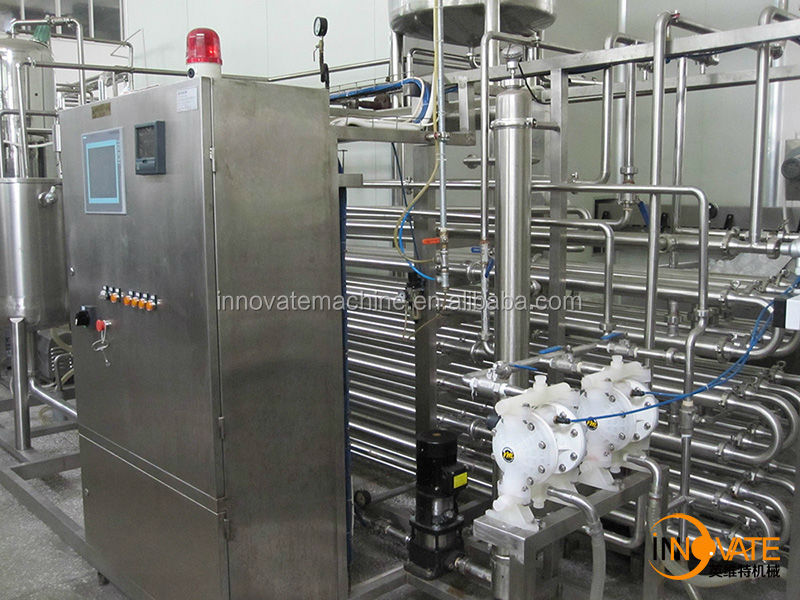

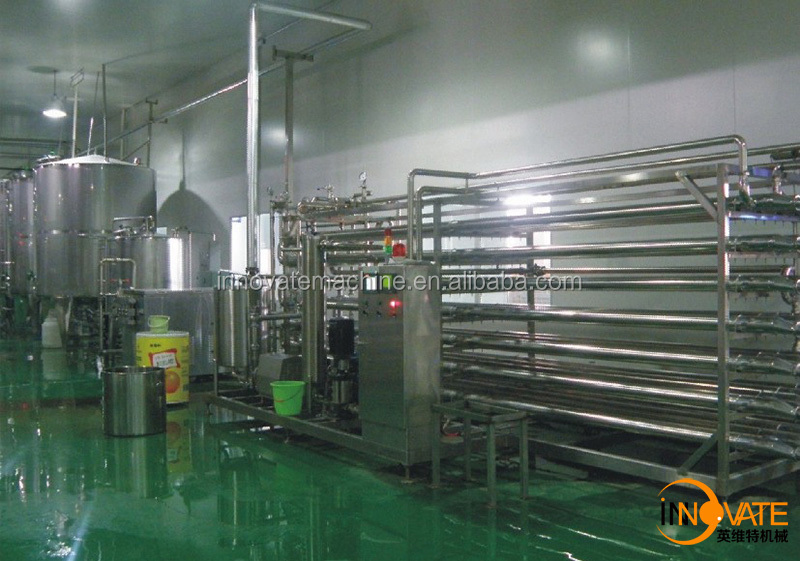

Show detailed pictures of pipe sterilizing machine for juice milk
INNOVATE MACHINERY Advantage:
1. Competitive price & good quality
Stable high quality of machines (Customer feedback & CE,ISO Certificates & Alibaba Supplier Assessment)
2. OEM is available
We can design the machines according your requirements( material ,power supply ,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion .
3 . Quick & effective service
Experienced in beverage filling machine more than 1 0 years , Free technical support&consultation
4 . 1-year warranty, life-time service
Professional , effective & fast after service
5 . In-time delivery time
6 . Qualified sea worthy wood case
For any further information about pipe sterilizing machine for juice milk machine , please contact us without hesitation,we will reply to you asap.Thank you.
| Processing: |
Sterilizer,high temperature sterilizer
|
Condition: |
New
|
Place of Origin: |
Jiangsu China (Mainland)
|
| Brand Name: |
INNOVATE
|
Model Number: |
GS-UHT series
|
Processing Types: |
Juice
|
| Certification: |
ISO,CE
|
Warranty: |
1 year
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
| Machine name: |
pipe sterilizing machine for juice milk
|
