Plate style UHT machine,China Gosunm price supplier

Plate style UHT machine

FOB Price:Price can be negotiated

Production Capacity:30 Set/Sets per Month

Update Time:2014-09-19

Contact Supplier

Product Description

UHT machine
1)With electric heating unit: Suitable for the small scale of production.

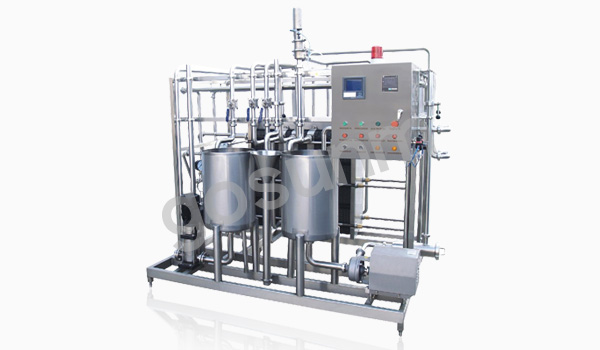

Plate style UHT machine GS- BSSJ-1A01

Plate style Sterilization equipment was designed for milk, Juice or similar products to continuous kill sterilization process. Aseptic filling equipment can be used with production for products with 3 to 6 months as quality keeping time. It can be connected to the separator, degassing, flashing and other equipment. The output of the device was regulated mainly by the feed flow controller system, when using full flow homogeneous way, using homogenizer to control the flow. Because the products heating and cooling are occurred in the heat recovery portion of the plate heat exchanger, thus heat recovery up to 90%.

Product Configuration:
1,Automatic configuration: adopted advanced computer system control technology, according to the setting of process requirements to carry through the whole process of production and operation control, own with CIP cleaning procedures for automatic cleaning.
2,Semi-automatic configuration: the whole process of running operation is semi-automatic control, the operator can control from the control panel for each pump and reflow capabilities, automatic temperature controller maintain the sterilization temperature. Sterilization temperature on the recorder has a continuous record.
3,Applies to: milk, juice, tea drinks, soy milk, milk drinks.
4,With electric heating unit: Suitable for the small scale of production.

Technical parameters:
technology: 5°C→65°Chomogeneity→95°C 30S→140°C 4S→25°C
30~75°C→140°C(4S,10S,15S)→85~92°C→(40°C)back-flow

Ability	Energy consumption	Steam pressure	Electric power	Dimension	Quantity
(t/h)	(kg/h)	(bar)	(kw)	(l×w×h)	(kg)
1	120	6.0	2.8	1.6×1.4×1.8	710
2	240	6.0	3.0	1.6×1.4×1.9	750
3	360	6.0	3.7	1.8×1.6×2.0	910
4	480	6.0	3.7	1.8×1.6×2.0	960
5	600	6.0	3.7	1.8×1.6×2.0	1010
6	720	6.0	3.7	1.8×1.6×2.0	1070
8	960	6.0	4.4	1.8×1.6×2.0	1180
10	1200	6.0	7.0	1.8×1.6×2.0	1300
15	1800	6.0	8.0	2.5×2.5×2.2	2100
20	2400	6.0	11.0	3.0×3.0×2.5	2400

Type:	Other,UHT machine	Condition:	New	Application:	Beverage
Packaging Type:	Case	Packaging Material:	Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Power:	2.8Kw	Place of Origin:	Guangdong China (Mainland)
Brand Name:	Gosunm	Model Number:	GS-BSSJ-1A01	Weight:	710kg
Dimension(LWH):	1.6m1.4m1.8m	Certification:	CE	After-sales Service Provided:	Engineers available to service machinery overseas
uht sterilization machine:	uht sterilization machine	uht milk sterilizer machine:	uht milk sterilizer machine	raw material:	stainless steel
