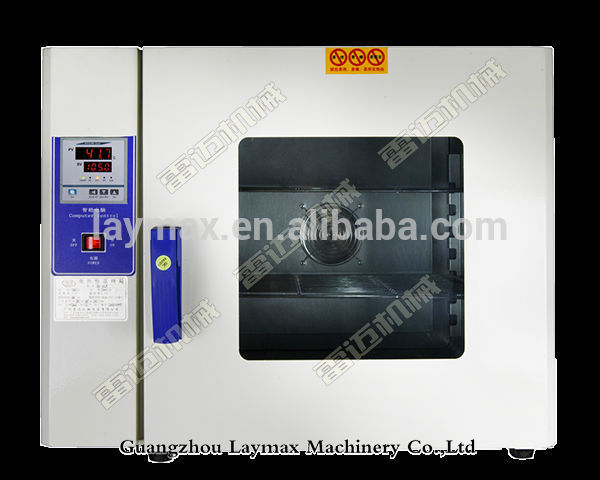

This Constant temperature drying Oven can be set at a temperature between room temperature to 300 degrees at any temperature
Guangzhou Laym ax production of various types of whole grains dryer, also known as thermostatic oven, heated drying machine, dryer, oven, widely used in a variety of food, medicines and chemicals, electronics, heating coil dried or cooked. This product is the lower part of the studio is equipped with heating wire. Constant temperature control device to control the temperature and level of air from the bottom of the heating wire heating inflows into the studio after work, and then discharged from the tank top vent. The machine on the left (located behind the bottom of the thermostat) mounted blower motor, can contribute to the bottom-up flow of air inside, so that the material inside the bake evenly. This product between the studio and the shell fiberglass insulation materials, housing made of steel, intermediate casing surface electrostatic powder coating, made of tempered glass door useful observation window.
This machine can be set at a temperature between room temperature to 300 degrees at any temperature, such as the temperature set at 100 degrees, then the inside of the working chamber after heating has been maintained at the temperature of 100 degrees. The machine baking out of whole grains does not change color, no distortion, no destroy nutrients, is the best-selling (whole grains, herbs, food) oven
Our factory model has:
Type 202-00 (5 layer, without blowing, you can bake about 5 pounds of material);
Type 101-0 (7 layers, each with blower, can bake 10-15 Jin material);
Type 101-1 (9 layers, each with blower, baking 15-20 Jin material);
Type 101-2 (11 layers, each with blower, baking 25-30 Jin material);
Type 101-3 (17 layers, each with blower, grilled 40-50 Jin material);
101-4 (17, 380V voltage, each bake 60-80 Jin material). Size can be chosen at random.
Product Name |
Type |
Studio Size (mm) |
Outsize Size (mm) |
Voltage (V) |
Power (KW) |
Temperature (℃) |
Layer/kilo |
Desktop drying box |
KX202-00 |
250*250*250 |
480*520*400 |
220 |
0.5 |
Room temperature +5-300 |
5/5 |
Electric air blowing drying box(iron liner) |
KX101-0 |
350*350*350 |
590*660*520 |
220 |
0.8-1.6 |
Room temperature +5-300 |
7/10 |
KX101-1 |
450*450*350 |
670*760*520 |
220 |
0.8-1.6 |
Room temperature +5-300 |
9/15-20 |
|
KX101-2 |
550*550*450 |
790*870*640 |
220 |
1.6-2.4 |
Room temperature +5-300 |
11/25 |
|
KX101-3 |
750*600*500 |
1050*980*700 |
220 |
2-3 |
Room temperature +5-300 |
17/40 |
|
KX101-4 |
1000*800*800 |
1380*1210*1000 |
220 |
3-4.8 |
Room temperature +5-300 |
|
|
Electric air blowing drying box(stainless steel liner) |
KX101-0S |
350*350*350 |
590*660*520 |
220 |
0.8-1.6 |
Room temperature +5-300 |
17/10 |
KX101-01 |
450*450*350 |
690*460*520 |
220 |
0.8-1.6 |
Room temperature +5-300 |
9/15-20 |
|
KX101-02 |
550*550*450 |
790*850*640 |
220 |
1.6-2.4 |
Room temperature +5-300 |
11/25 |
|
KX101-03 |
750*600*500 |
1050*980*700 |
220 |
2-3 |
Room temperature +5-300 |
17/40 |
|
KX101-04 |
1000*800*800 |
1380*1210*1000 |
220 |
3-4.8 |
Room temperature +5-300 |
|
Place of Origin: |
Guangdong China (Mainland)
|
Brand Name: |
Laymax
|
Model Number: |
KX101-04
|
Type: |
Grain Processing Equipment
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
